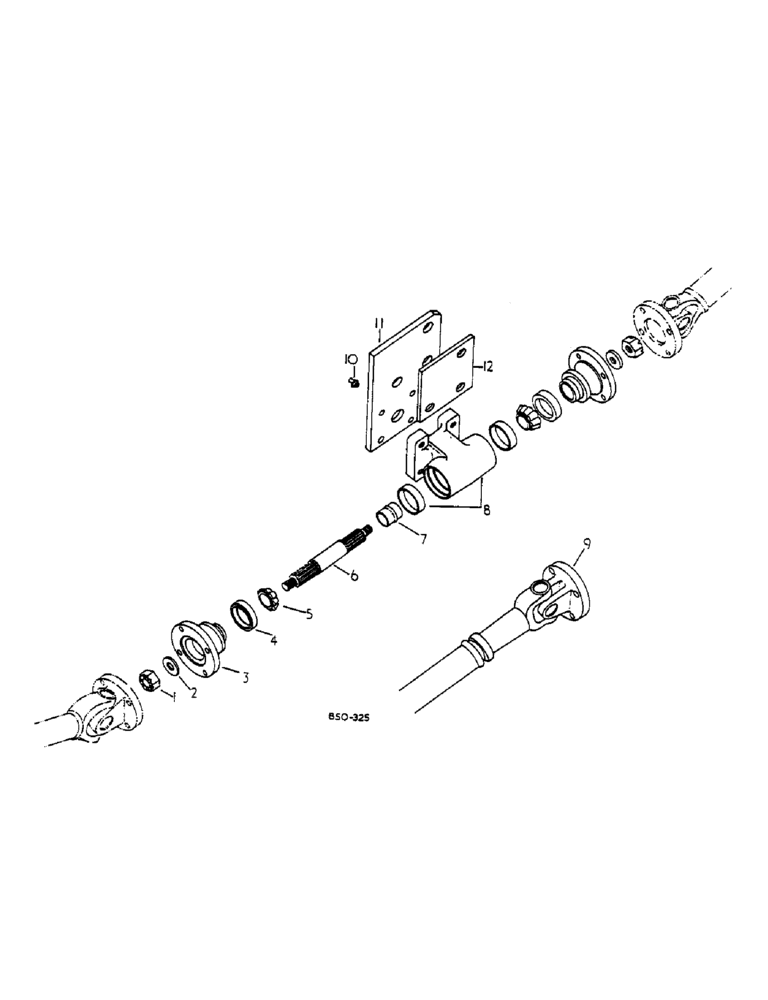

Запчасти Case IH 268 (07-201) - PROPELLER SHAFT, 4-WHEEL DRIVE, Z F AXLE (04) - Drive Train

1

1003759C1

NUT,5/8"-18

2шт.

2

25556R1

WASHER,21/32" x 1 1/2" x .188", HDN

.656 X 1.5 X .188 PHC HARDENED, INCLUDES PIN

2шт.

103386

COTTER PIN,1/8" x 1 1/4"

1/2 X 1-1/4 COTTER EXT. PRONG

2шт.

3

3129941R1

FLANGE

COMPANION

2шт.

4

1004318C1

OIL SEAL

2шт.

4

3129946R1

OIL SEAL

OIL, OPTIONAL

2шт.

5

651818C1

BEARING, CONE

2шт.

6

3129944R1

SHAFT

1шт.

7

3129945R1

SPACER

1шт.

8

3129942R91

BLOCK ASSY.

PILLOW W/TWO CUP 651817R1

1шт.

651817R1

BEARING CUP

CUP

2шт.

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

9

3129940R91

SHAFT

ASSY, PROPELLER, INCLUDES BOLTS, NUTS AND WASHERS

2шт.

70427R1

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 8

7/16-14 X 1-1/4 PHC HEX HD

12шт.

9418646

NUT,7/16"-14, G8

7/16-14 ZND HEX

16шт.

115314

LOCK WASHER,7/16"

16шт.

10

109461

LUBE NIPPLE,1/8"-27 x .66 lg

PTF

1шт.

11

3129947R1

SUPPORT

SPARE PART BRACKET, PILLOW BLOCK, INCLUDES BOLTS

1шт.

25274R1

BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 8

BOLT 1/2-13 X 1-1/8 PHC HEX HD

4шт.

12

3121579R1

SPACER

PLATE, INCLUDES BOLTS AND SPACER

1шт.

24889R1

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 8

3шт.

651484R1

SPACER,1" Tube x 13/16"

TUBE 19.9 X 20.62

1шт.
