Запчасти Case IH 268 (07-195) - DIFFERENTIAL, 4-WHEEL DRIVE, Z F 4-WHEEL DRIVE (04) - Drive Train

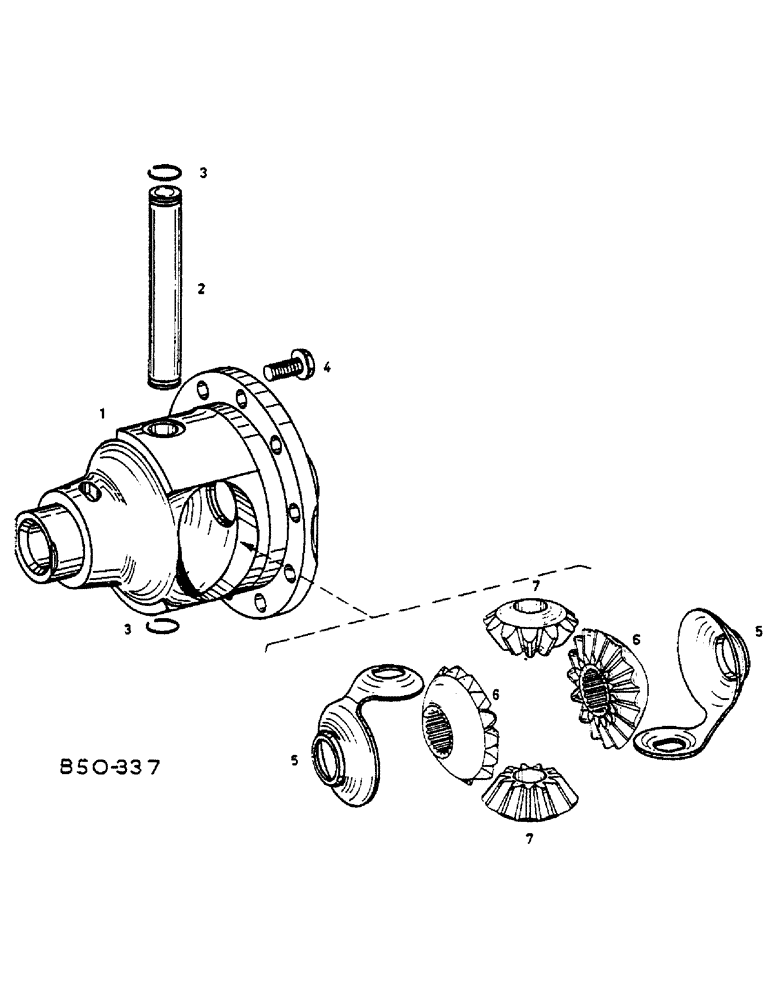

Схема запчастей Case IH 268 - (07-195) - DIFFERENTIAL, 4-WHEEL DRIVE, Z F 4-WHEEL DRIVE (04) - Drive Train
4
1
7
2
3
5
6
5
6
7
3

Артикул

Название

Примечание

Количество

1

3230254R1

HOUSING

CASE, DIFFERENTIAL

1шт.

2

3230255R1

AXLE DIFFERENTIAL

SHAFT

1шт.

3

934001R1

SNAP RING,M18, Ext

RETAINING

2шт.

4

3216567R1

BOLT

LOCKING M10 X 20

10шт.

5

3230258R1

THRUST WASHER

2шт.

6

3230256R1

GEAR

DIFFERENTIAL SIDE

2шт.

7

3230257R1

PINION

GEAR, DIFFERENTIAL

2шт.

Выбрано товаров: 7
