Запчасти Case IH 268 (07-121) - DRIVE CONTROL VALVE (04) - Drive Train

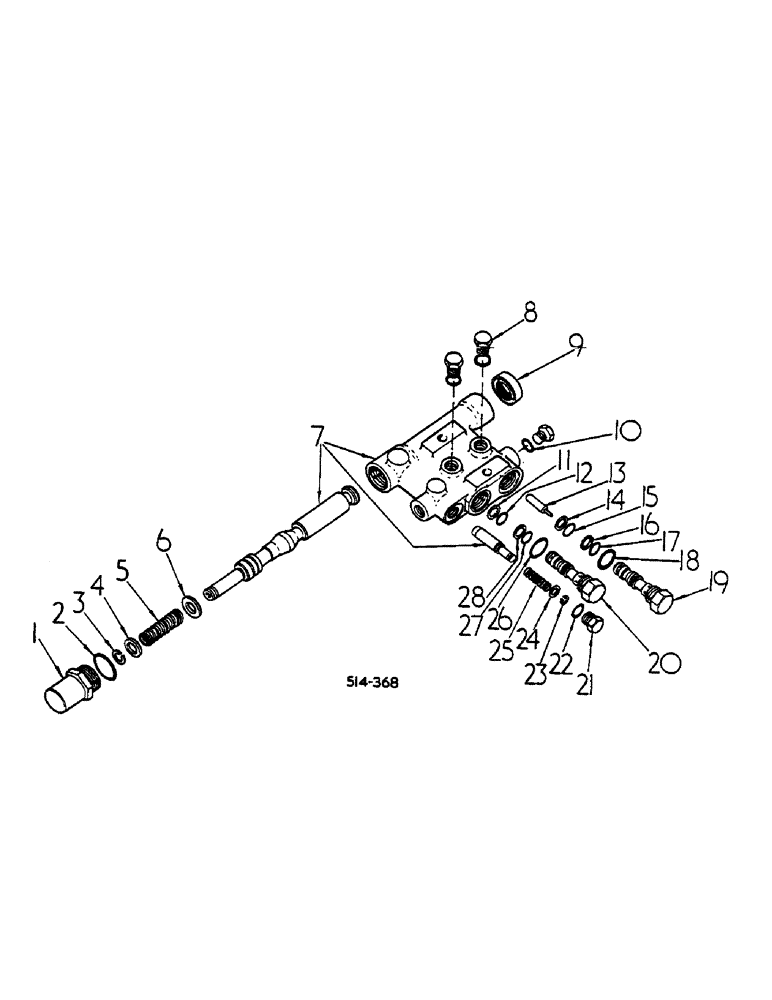

Схема запчастей Case IH 268 - (07-121) - DRIVE CONTROL VALVE (04) - Drive Train
13
19
2
15
11
9
12
16
1
20
6
25
21
27
3
7
23
18
26
28
5
8
14
22
10
24
17
4

Артикул

Название

Примечание

Количество

401852R91

LOCK VALVE

ASSY, DRIVE CONTROL

1шт.

1

398692R1

PLUG

DRIVE CONTROL VALVE

1шт.

2

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD TUBE

1шт.

3

398700R1

SNAP RING,#56, .524", Ext

RETAINING

1шт.

4

398694R1

WASHER

1шт.

5

398733R1

SPRING

DRIVE CONTROL VALVE CENTERING

1шт.

6

398693R1

WASHER

1шт.

7

NSS

NOT SOLD SEPARAT

BODY ASSY, DRIVE CONTROL

1шт.

8

9410356

PLUG

7/16-20 STR THD O-RING BOSS

3шт.

9

381232R91

OIL SEAL

OIL

1шт.

9

530097R91

SEAL

OIL, OPTIONAL

1шт.

11

398699R1

BACK-UP RING

1шт.

12

375271R1

O-RING,0.426" ID x 0.07" Width

7/16 X 9/16 X 1/16

1шт.

13

398696R1

PIN

LOWER VALVE LIFT

1шт.

14

398699R1

BACK-UP RING

1шт.

15

375271R1

O-RING,0.426" ID x 0.07" Width

7/16 X 9/16 X 1/16

1шт.

16

383004R1

BACK-UP RING,Split, 13.16mm ID x 15.9mm OD x 1.32mm Thk

1шт.

17

370920R1

O-RING,1/2" ID

1/2 X 5/8 X 1/16

1шт.

18

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD TUBE

1шт.

19

404496R3

VALVE

ASSY, A CAPSULE, CONSISTS OF 1 BODY, 1 SPRING, 1 BALL, 1 VALVE ASSY, 1 BODY, 1 SPRING, 1 PIN, 1 BALL, 1 SEAT

1шт.

20

404497R3

VALVE

ASSY, B CAPSULE, CONSISTS OF 1 BODY, 1 SPRING, 1 BALL, 1 VALVE ASSY, 1 BODY, 1 SPRING, 1 BALL, 1 SEAT

1шт.

21

533567R1

PLUG

9/16-18 STR THD O-RING BOSS

1шт.

22

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3/8 OD tube

1шт.

23

875777R1

SNAP RING,#25, Ext

#25, Ext

1шт.

24

401291R1

SPRING WASHER

ANTI-COAST VALVE PIN

1шт.

25

400454R1

SPRING

VALVE

1шт.

26

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD TUBE

1шт.

27

370920R1

O-RING,1/2" ID

1/2 X 5/8 X 1/16

2шт.

28

383004R1

BACK-UP RING,Split, 13.16mm ID x 15.9mm OD x 1.32mm Thk

2шт.

10

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1/4 OD tube

3шт.

Выбрано товаров: 30
