Запчасти Case IH 268 (07-117) - FOOT-N-INCH AND CONTROLS, TRACTOR FITTED W/H/SPEED CONTROLS (04) - Drive Train

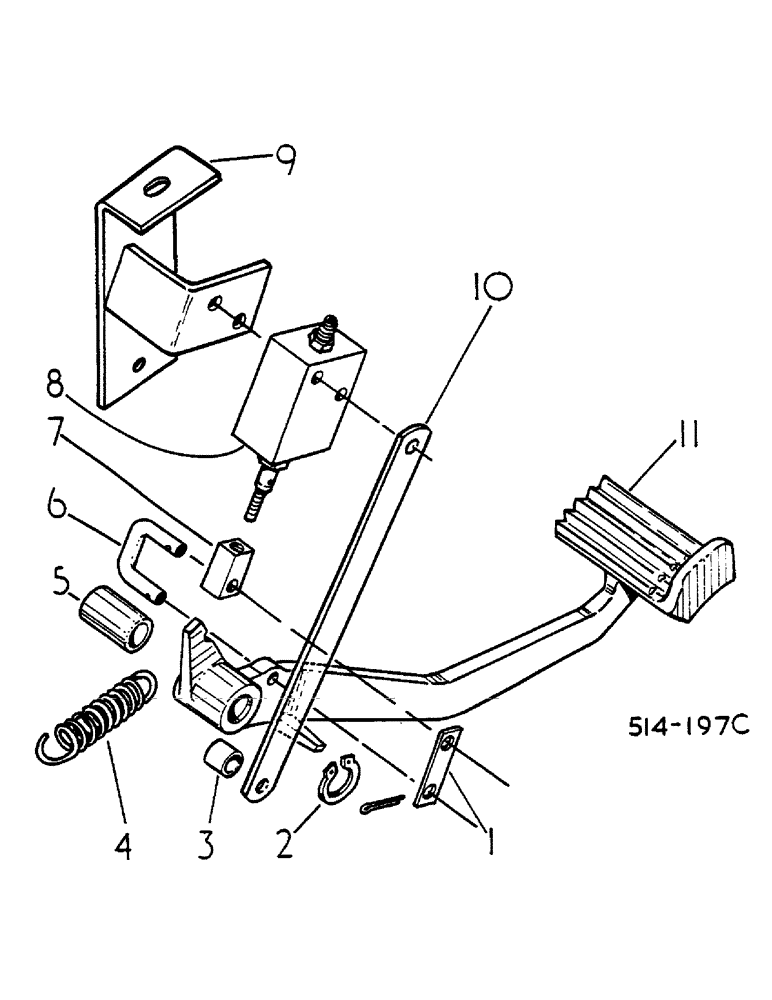

Схема запчастей Case IH 268 - (07-117) - FOOT-N-INCH AND CONTROLS, TRACTOR FITTED W/H/SPEED CONTROLS (04) - Drive Train
9
6
7
2
11
1
4
10
3
8
5

Артикул

Название

Примечание

Количество

1

539557R1

PLATE

VALVE LINK

1шт.

2

454331R1

SNAP RING,#87, Ext

Clutch pedal

1шт.

3

3121133R1

SPACER

SPARE PART

1шт.

4

539556R1

SPRING

RELIEF VALVE PEDAL RETURN

1шт.

5

539246R1

BUSHING

1шт.

6

534463R2

LINK ASSY.

FOOT-N-INCH VALVE, INCLUDES PINS

1шт.

103384

COTTER PIN,1/8" x 3/4"

2шт.

7

398766R1

UNION

CONNECTOR, FOOT-N-INCH VALVE, INCLUDES NUT

1шт.

124920

JAM NUT,Jam, 5/16"-24, G5

1шт.

8

398705R91

VALVE

ASSY, FOOT-N-INCH, FOR COMPONENTS SEE LIST OF PARTS UNDER DETAILS OF FOOT-N-INCH VALVE

1шт.

9

3121130R1

SUPPORT

SPARE PART ASSY, LH, INCLUDES SCREW, NUT AND WASHERS

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

21872R1

WASHER

3/8 PLAIN

1шт.

10

3121132R1

SUPPORT ASSY.

SPARE PART VALVE MOUNTING

1шт.

11

3123919R91

PEDAL ASSY.

FOOT-N-INCH VALVE, MACHINES W/CAB

1шт.

11

530817R2

PEDAL ASSY.

FOOT-N-INCH VALVE, INCLUDES WASHERS

1шт.

21868V

WASHER

29/32 X 1-1/2 X 16 GA

1шт.

21739R1

WASHER

11/32 X 9/16 X .054

1шт.

399740R1

SHAFT

PEDAL SUPPORT, NOT ILLUSTRATED

1шт.

Выбрано товаров: 21
