Запчасти Case IH 268 (07-087) - SIDE DRIVE POWER TAKE-OFF (04) - Drive Train

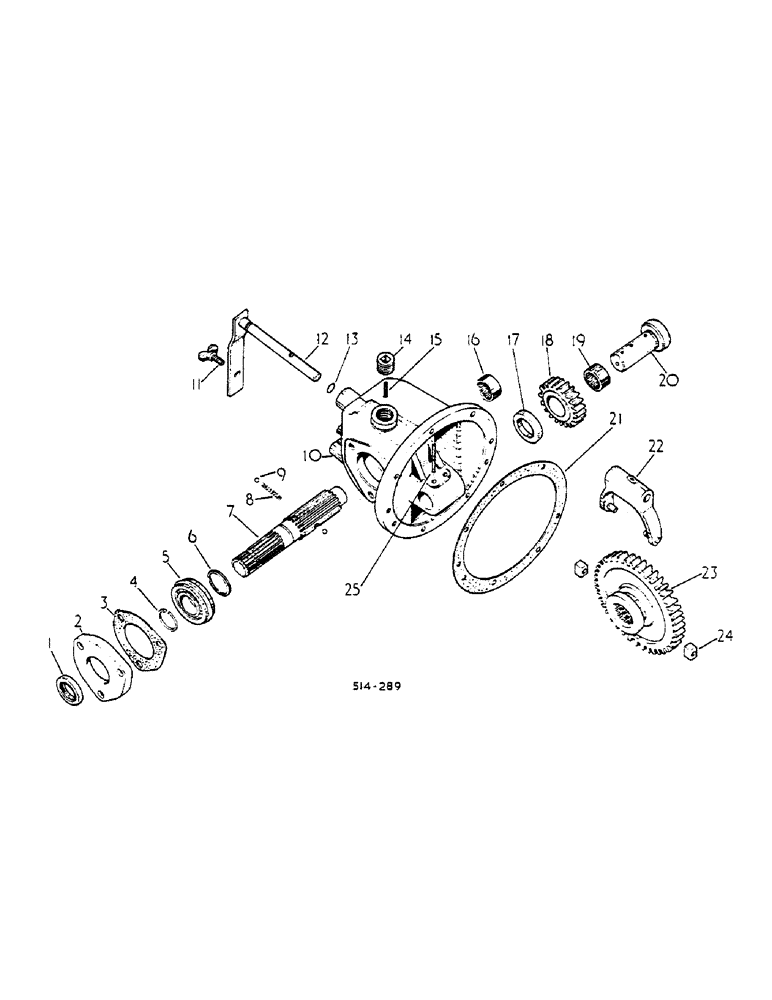

Схема запчастей Case IH 268 - (07-087) - SIDE DRIVE POWER TAKE-OFF (04) - Drive Train
16
24
7
20
9
17
10
25
12
14
19
22
21
8
6
1
18
15
2
13
3
4
23
5
11

Артикул

Название

Примечание

Количество

67128C91

HOUSING

ATTACHMENT, SIDE DRIVE PTO, FOR TRACTORS W/SINGLE OR DUAL SPEED I.P.T.O.

1шт.

1

381480R91

OIL SEAL

OUTPUT SHAFT

1шт.

1

534917R91

OIL SEAL

OUTPUT SHAFT, OPTIONAL

1шт.

2

529327R1

FLANGED BEARING

OUTPUT SHAFT BEARING, INCLUDES SCREWS

1шт.

321316R1

SCREW

1/2-13 X 1-1/4 HEX HD CAP

3шт.

3

529328

HYD TUBE

TUBE GASKET, OUTPUT SHAFT BRG. RETAINER

1шт.

4

359141R1

RING, SNAP

RING SNAP OUTPUT SHAFT BRG. RET.

1шт.

5

ST247

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

OUTPUT SHAFT

1шт.

5

704770R91

BALL BEARING

OUTPUT SHAFT

1шт.

5

700497R91

BEARING, BALL

OUTPUT SHAFT, OPTIONAL

1шт.

6

573984R1

SNAP RING

SLIDING GEAR RETAINING

1шт.

7

67131C1

SHAFT

OUTPUT

1шт.

8

529329R1

SPRING

DRIVE GEAR POPPET

1шт.

9

17009R1

BALL

9/32 CR-STL

2шт.

9

16009R1

BALL

9/32 CR-STL, OPTIONAL

2шт.

10

529322R21

HOUSING ASSY.

SIDE DRIVE P.T.O., INCLUDES SCREWS

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

7шт.

11

164603C1

THUMB SCREW,3/8" - 16 x 5/8"

SELECTOR FORK SHAFT ARM ADJ.

1шт.

12

65772C1

SHAFT ASSY.

SELECTOR FORK, W/PRODUCT GRAPHIC

1шт.

13

355966R1

O-RING,0.424" ID x 0.103" Width

7/16 X 5/8 X 3/32

1шт.

14

9409947

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

3/4 X 14 AUTOM. SQ-SOC-HD PIPE

1шт.

15

19791R1

PIN,1/4" x 1 1/8", Coiled

1/4" x 1 1/8", Coiled

1шт.

16

529323R91

BEARING, NEEDLE

OUTPUT SHAFT

1шт.

17

67130C1

SPACER

IDLER GEAR

1шт.

18

529325R1

GEAR, IDLER

GEAR,IDLE SIDE DRIVE PTO IDLER -21T

1шт.

19

287057R91

BEARING, NEEDLE

IDLER GEAR

1шт.

19

531437R91

NEEDLE BEARING

IDLER GEAR, OPTIONAL

1шт.

20

67129C1

SHAFT

SIDE DRIVE PTO IDLER GEAR

1шт.

21

528650R1

GASKET

SIDE DRIVE PTO HOUSING

1шт.

22

529331R1

FORK

ASSY, DRIVE GEAR SELECTOR

1шт.

23

67132C1

GEAR

SIDE DRIVE PTO DRIVE -44T

1шт.

24

67133C1

BLOCK

SPARE PART SELECTOR FORK

2шт.

25

618573R1

PIN,1/4" x 2 1/4", Coiled

1/4" x 2 1/4", Coiled

1шт.

3124785R91

ATTACHMENT, IPTO CLUTCH CUP GEAR

1шт.

66068C1

GEAR

FRONT CLUTCH CUP, IPTO ATTACHMENT

1шт.

Выбрано товаров: 35
