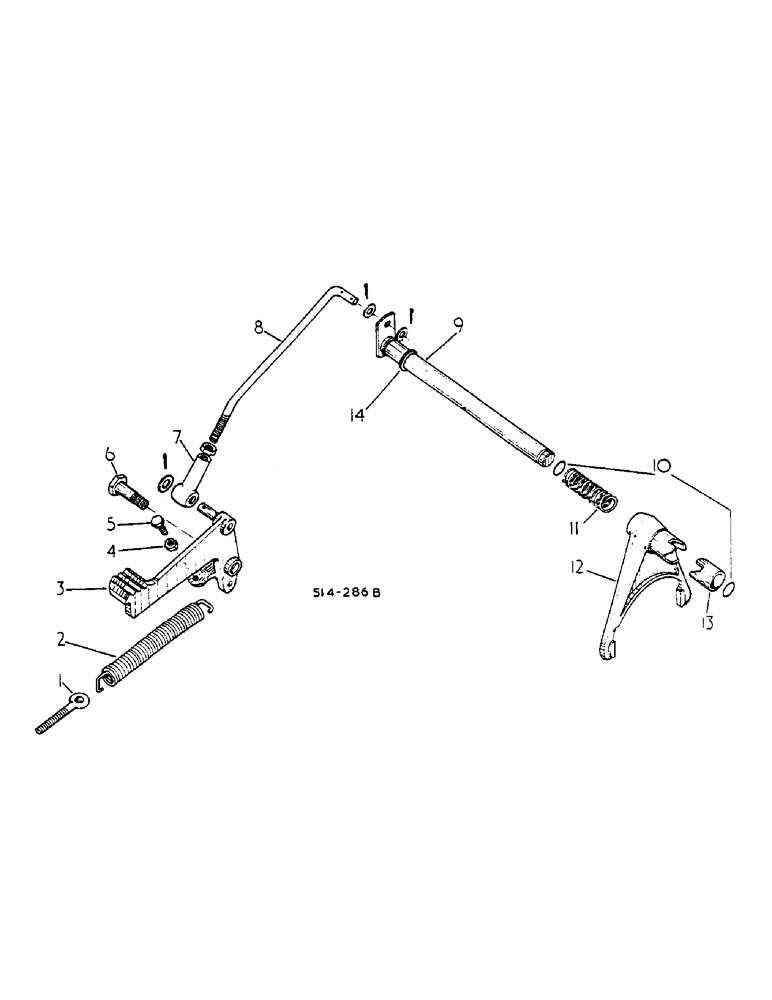

Запчасти Case IH 268 (07-063) - DIFFERENTIAL LOCK, MACHINE NOT FITTED WITH CAB (04) - Drive Train

1

530046R1

BOLT

PEDAL RETURN SPRING EYE, INCLUDES NUTS

1шт.

102635

NUT,3/8"-16, G5

2шт.

2

527886

SPRING

DIFF. LOCK PEDAL RETURN

1шт.

3

66441C1

PEDAL

DIFF. LOCK, STANDARD MACHINES

1шт.

3

3121562R1

PEDAL

DIFF. LOCK, INCLUDES WASHERS AND PIN

1шт.

3121567R1

WASHER

4-WHEEL DRIVE

1шт.

11002VA

WASHER

17/32 X 7/8 X 1/16

1шт.

103384

COTTER PIN,1/8" x 3/4"

1шт.

4

109084

NUT,1/4"-20, G5

1шт.

5

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

6

527885R1

BOLT

BOLT, DIFF. LOCK PEDAL RETURN

1шт.

7

527880R1

END

DIFF. LOCK PEDAL RETURN

1шт.

8

527879R1

ROD

DIFF. LOCK PEDAL, INCLUDES NUT, WASHES AND PINS

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

Q1597

WASHER

13/32 X 3/4 X 1/16

2шт.

Q103384

PIN 1/8 X 3/4 COT

2шт.

9

527871R1

SHAFT ASSY.

DIFF. LOCK, UP TO S/N 10866 AND 268/813

1шт.

9

1500384C1

SHAFT ASSY.

DIFF. LOCK, INCLUDES PINS AND WASHER

1шт.

1500385C2

PIN, CAM ACTUATING

1шт.

365704R1

PIN,1/8" x 5/8", Coiled

1шт.

Q3501

WASHER

25/32 X 1-1/4 16 GA FLAT, S/N 10867 AND 268/814 UP

1шт.

10

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 X 3/4 X 3/32

2шт.

11

527878R1

SPRING

DIFF LOCK FORK ACTUATING

1шт.

12

527874R3

FORK

ASSY, DIFF LOCK SHAFT, UP TO S/N 10866 AND 268/813

1шт.

12

1500386C1

FORK

ASSY, DIFF LOCK SHAFT, S/N 10867 AND 268/814 UP

1шт.

13

527877R1

CAM

DIFF LOCK SHAFT, INCLUDES PIN

1шт.

19885R1

PIN,1/4" x 1 3/8", Coiled

Up to serial no 10866 and 268/813

1шт.

14

551658R1

WASHER

25/32 X 1-1/4 X 22 GA

1шт.

14

Q3501

WASHER

25/32 X 1-1/4 X 16 GA

1шт.
