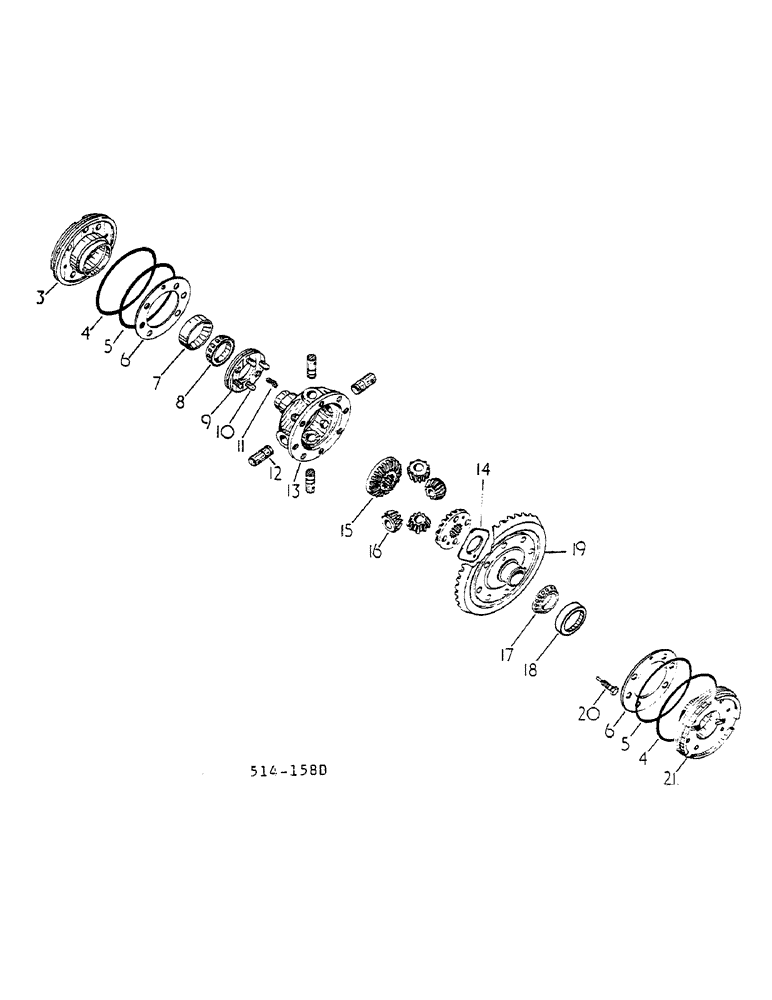

Запчасти Case IH 268 (07-060) - DIFFERENTIAL AND CONNECTIONS (04) - Drive Train

1

NOT APPLICABLE

1шт.

2

NOT APPLICABLE

1шт.

3

399770R2

BEARING CARRIER

CARRIER, DIFFERENTIAL BRG RH, INCLUDES SCREWS

1шт.

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

SCREW 1/2-13 X 1-1/2 HEX HD CAP

4шт.

4

21472R1

O-RING,0.139" Thk x 8.234" ID, -267, Cl 6, 90 Duro

8-1/4 X 8-1/2 X 1/8, DIFFERENTIAL BRG CARRIER

2шт.

5

289506R1

O-RING,0.21" Thk x 7.475" ID, -367, Cl 5, 75 Duro

7-1/2 X 7-7/8 X 3/16, DIFFERENTIAL BRG CARRIER SEAL

2шт.

6

65419C1

BEARING CARRIER

PACKAGE, DIFFERENTIAL BRG CARRIER SHIM, SERVICE

1шт.

7

105504H

TAPERED BEARING,57.163 mm ID x 96.863 mm OD x 21.2 mm

DIFFERENTIAL RH

1шт.

7

402353R91

BEARING ASSY,2.25" ID x 3.815" OD x 0.8268"

DIFFERENTIAL RH, OPTIONAL

1шт.

8

BEARING ASSY, DIFFERENTIAL CONE RH, ORDER BEARING 105504H OR 402353R91

1шт.

9

399764R11

LOCKING RING

DIFFERENTIAL LOCK

1шт.

10

399765R1

PIN

COUPLING

4шт.

11

400867R1

SPRING

DIFFERENTIAL LOCK

2шт.

12

399804R1

PIN

DIFFERENTIAL PINION

4шт.

13

399763R1

PINION CARRIER

GEAR CARRIER DIFFERENTIAL

1шт.

14

399778R1

THRUST WASHER

DIFFERENTIAL BEVEL GEAR THRUST

1шт.

15

404336R1

PINION

GEAR, DIFFERENTIAL BEVEL -20T

2шт.

16

399776R1

PINION

GEAR, DIFFERENTIAL PINION -10T

4шт.

17

105502H

TAPERED BEARING,2.25" ID x 3.8437" OD x 0.9688"

ASSY, DIFFERENTIAL LH

1шт.

17

399766R91

ROLLER BEARING

ASSY, DIFFERENTIAL LH, OPTIONAL

1шт.

18

BEARING, DIFFERENTIAL CUP LH, ORDER BEARING 105502H OR 399766R91

1шт.

19

65779C1

GEAR, BEVEL

BEVEL GEAR SET. MATCHED -11/52T, SYNCHROMESH, CONSISTS OF 1 SHAFT, 1 GEAR

1шт.

19

65254C1

SHAFT

SET, BEVEL GEARS MATCHED -12/53T, HYDROSTATIC, CONSISTS OF 1 SHAFT, 1 GEAR, STANDARD MACHINES

1шт.

19

984505C2

SHAFT

SET, BEVEL GEARS MATCHED -12/53T, 4-WHEEL DRIVE

1шт.

20

399779R2

BOLT,Hex, 1/2" - 13 x 2.12", Gr 8

BOLT 1/2-13 X 2-1/8 DOWEL, INCLUDES BOLT

4шт.

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

1-1/2 X 1/2 GRADE 8

4шт.

21

399769R2

BEARING CARRIER

CARRIER, DIFFERENTIAL BRG LH, INCLUDES BOLT

1шт.

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

1-1/2 X 1/2 GRADE 8

4шт.
