Запчасти Case IH 2656 (L-13[A]) - WHEELS AND WHEEL WEIGHTS, REAR WHEEL WEIGHTS, SPLIT TYPE, FOR CAST TYPE REAR WHEELS Wheels & Wheel Weights

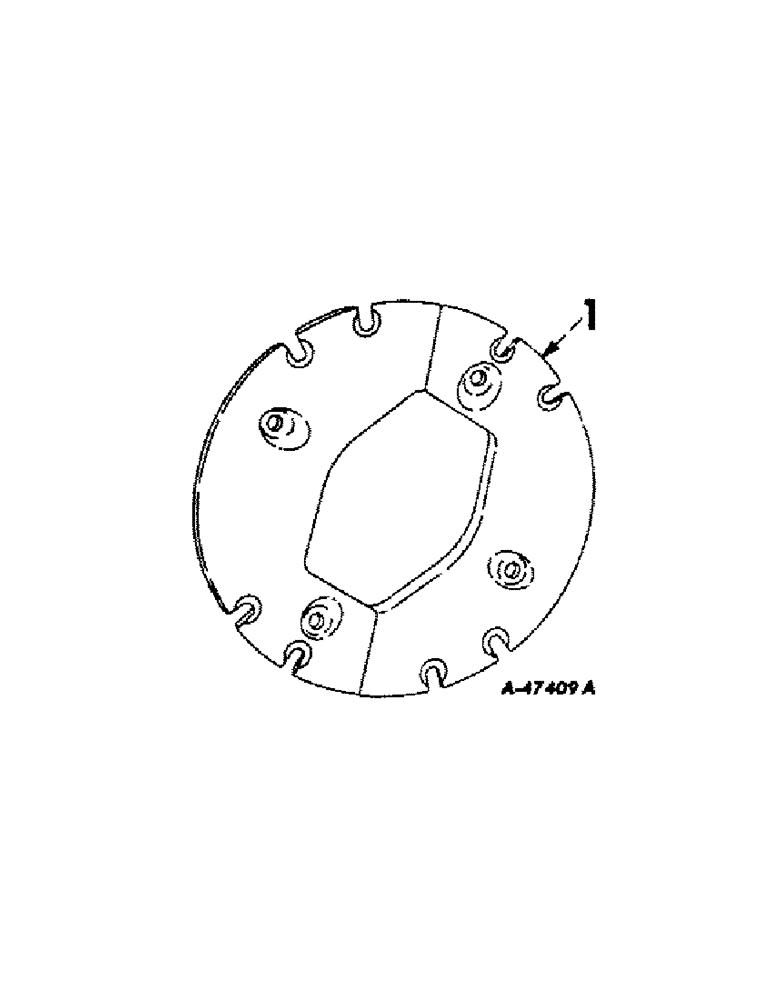

Схема запчастей Case IH 2656 - (L-13[A]) - WHEELS AND WHEEL WEIGHTS, REAR WHEEL WEIGHTS, SPLIT TYPE, FOR CAST TYPE REAR WHEELS Wheels & Wheel Weights
1

Артикул

Название

Примечание

Количество

REAR WHEEL WEIGHT ATTACHMENT, 366107R92, consists of 4 weights, 400078R1 less mounting hardware

1шт.

1

400078R1

WHEEL WEIGHT

WEIGHT, rear wheel-half, approx 75 lbs, 4 for first set

1шт.

366110R1

BOLT,Sq Hd, 3/4" - 10 x 4 3/4"

rear wheel weight

8шт.

280954

NUT,3/4"-10, G5

8шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4-10 C-Z hex. jam

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

8шт.

1

400078R1

WHEEL WEIGHT

WEIGHT, rear wheel-half, approx 75 lbs, 4 for second or third set

1шт.

366111R1

BOLT,Sq Hd, 3/4" - 10 x 3 1/4"

rear wheel weight

8шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4-10 C-Z hex. jam

8шт.

366112R1

WASHER

rear wheel weight bolt

16шт.

280954

NUT,3/4"-10, G5

8шт.

Выбрано товаров: 11
