Запчасти Case IH 2656 (L-12) - WHEELS AND WHEEL WEIGHTS, POWER ADJUSTED REAR WHEELS, FARMALL AND INTERNATIONAL ROW CROP TRACTORS Wheels & Wheel Weights

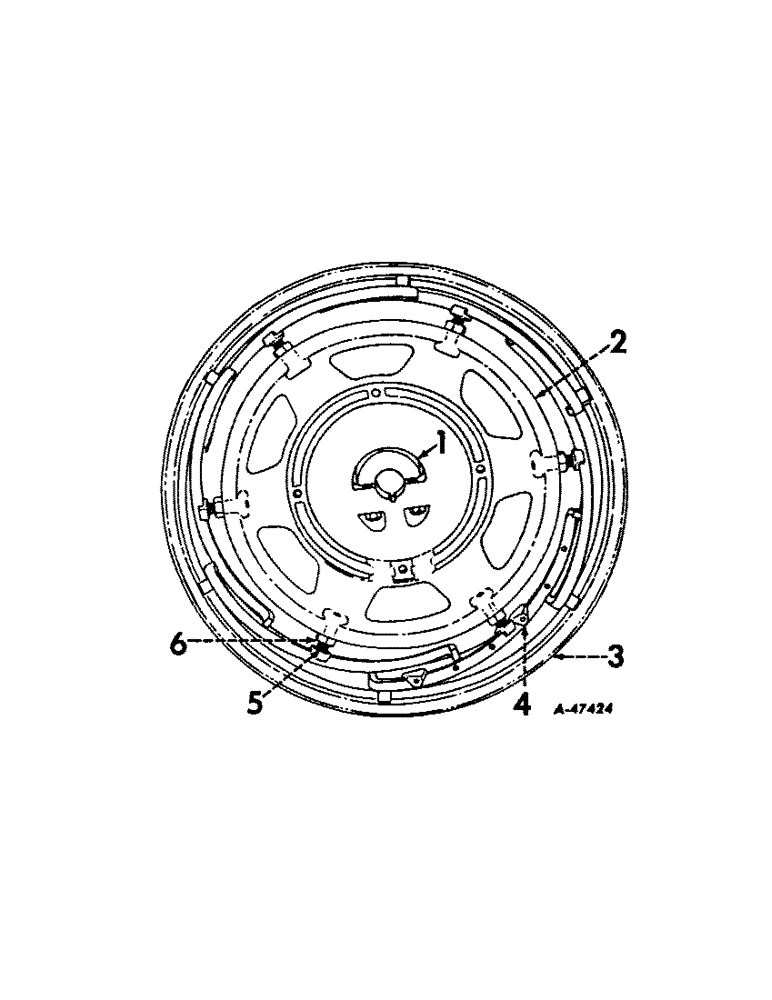

Схема запчастей Case IH 2656 - (L-12) - WHEELS AND WHEEL WEIGHTS, POWER ADJUSTED REAR WHEELS, FARMALL AND INTERNATIONAL ROW CROP TRACTORS Wheels & Wheel Weights
2
1
6
3
4
5

Артикул

Название

Примечание

Количество

1

389539R1

CLAMP

rear wheel

4шт.

375463R1

SCREW,Hex, 7/8" - 14 x 4 3/4"

7/8-14 x 4-3/4 hex-hd cap

8шт.

2

391280R1

WHEEL, power adjusted rear

2шт.

3

366103R91

RIM ASSY, rear wheel, W12-38 rim for 13.6-38 and 14.9-38 tires

2шт.

3

367090R91

RIM ASSY, rear wheel, W14L-38 rim for 15.5-38 tire

2шт.

4

365327R2

STOP

BODY, stop

4шт.

365326R1

SCREW

stop body

4шт.

5

366104R1

JACK SCREW,1" - 16 x 3.34"

JACKSCREW, 1-16 thread

12шт.

6

366105R1

WHEEL NUT,Hex, 1" - 16

1-16 hex.

12шт.

Выбрано товаров: 9
