Запчасти Case IH 2656 (L-11) - WHEELS AND WHEEL WEIGHTS, REAR WHEELS, INTERNATIONAL ROW CROP TRACTORS WITH 34 INCH WHEELS Wheels & Wheel Weights

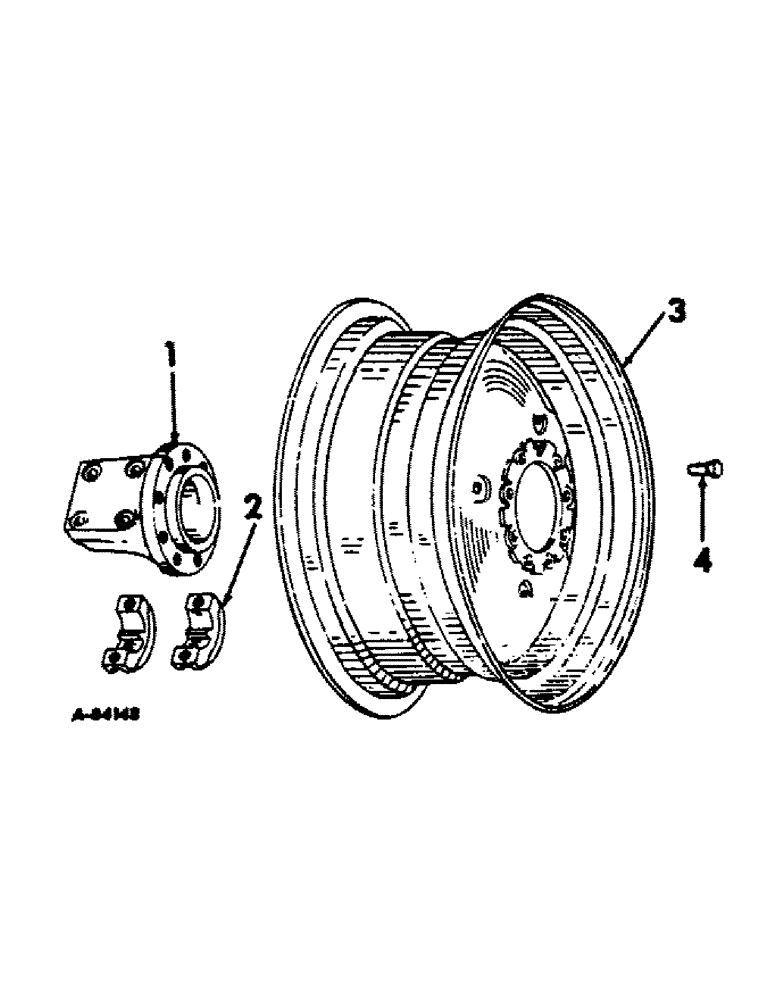

Схема запчастей Case IH 2656 - (L-11) - WHEELS AND WHEEL WEIGHTS, REAR WHEELS, INTERNATIONAL ROW CROP TRACTORS WITH 34 INCH WHEELS Wheels & Wheel Weights
2
4
3
1

Артикул

Название

Примечание

Количество

1

391279R1

HUB, rear wheel

2шт.

2

389539R1

CLAMP

wheel hub

4шт.

375463R1

SCREW,Hex, 7/8" - 14 x 4 3/4"

7/8-14 x 4-3/4 hex-hd cap

8шт.

3

375111R91

WHEEL ASSY, disc type rear, DW14-34 rim for 16.9-34 tire

2шт.

4

391004R1

BOLT,Hex, 5/8"

BOLT, rear wheel mounting

18шт.

399001R91

WHEEL ASSY, power adjusted rear

1шт.

Выбрано товаров: 6
