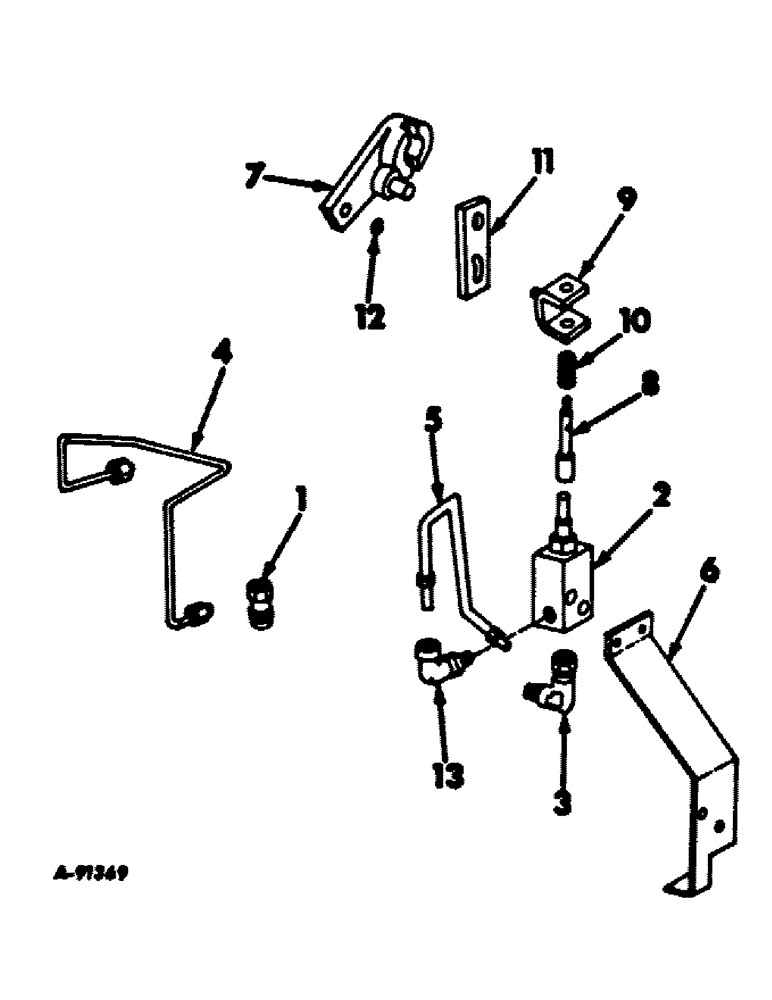

Запчасти Case IH 2656 (H-21) - CONTROLS, DECELERATOR PEDALS, INTERNATIONAL TRACTORS WITH HYDROSTATIC DRIVE Controls

1

404254R2

VALVE

ASSY, check, only serviceable item is 17006R1 ball

2шт.

2

404211R91

VALVE

ASSY, decelerator, for components see list of parts under details of decelerator valve listing, section F

1шт.

17521R1

BOLT,Hex, 3/8" - 16 x 2", Gr 2

SCREW, 3/8-16 x 2 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

102635

NUT,3/8"-16, G5

2шт.

3

9410278

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

7/16-20 37 deg hyd flared tube 90 deg swivel

1шт.

4

404444R2

TUBE ASSY, decelerator valve pressure

1шт.

5

406492R1

TUBE, decelerator valve drain, will work for 404443R1, on orders for 404443R1 furnish 406492R1 and 406493R1

1шт.

222-503

TUBE NUT,1/2"-20

NUT, 1/2-20 hi-duty tube fitting

2шт.

6

404289R2

BRACKET, valve mtg

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex

2шт.

7

404309R1

LEVER ASSY, operating shift

1шт.

8

404287R1

ROD, spring extension

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

Relief valve Jam, 5/16"-24, G5

1шт.

9

404285R1

RETAINER ASSY, spring

1шт.

10

404290R1

SPRING

valve rod

1шт.

446548

WASHER,0.38" ID x 0.75" OD x 0.05" Thk

3/8 x 3/4 x 11 ga C-Z

1шт.

19938R1

PIN,1/8" x 7/8", Coiled

1шт.

11

404288R1

LINK, actuating

1шт.

619855R1

WASHER

11/32 x 3/4 x .060 C-Z

1шт.

12

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

retaining

1шт.

13

398782R1

ELBOW

valve drain

1шт.
