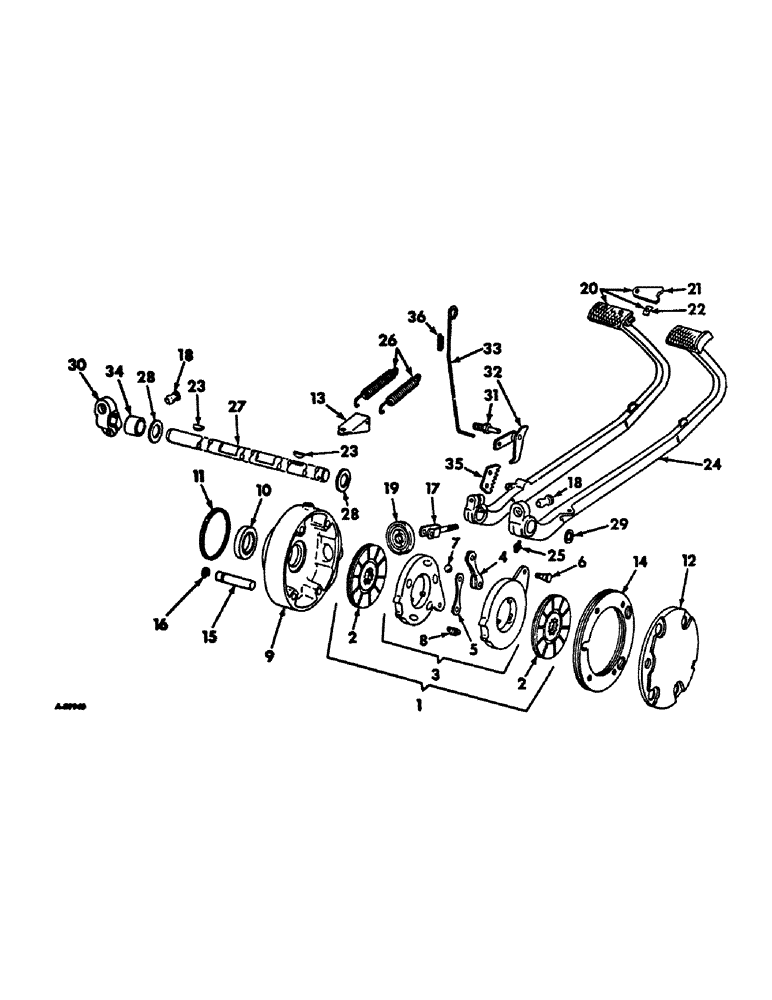

Запчасти Case IH 2656 (H-16) - CONTROLS, BRAKES, BRAKE LOCK AND CONNECTIONS, INTERNATIONAL TRACTORS Controls

1

388268R91

DISC

BRAKE ASSY, double disc

2шт.

2

391445R91

BRAKE DISC

DISC ASSY, brake

2шт.

3

391446R91

DISC

ASSY, actuating

1шт.

4

357114R91

LINK

actuating yoke

1шт.

5

357113R1

LINK

actuating plain

1шт.

6

354642R1

STUD

link

2шт.

114493

JAM NUT,Jam, 5/16"-24, G5

2шт.

7

16028R1

BALL

7/8 stl

5шт.

8

619731C1

SPRING

extension, will work for 357116R1

3шт.

9

389283R1

HOUSING

brake

2шт.

393773R1

PLUG

brake housing

2шт.

10

383159R91

OIL SEAL

bull pinion shaft oil

2шт.

11

3046999R1

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

RING, brake housing sealing

2шт.

12

389284R2

COVER

brake housing

2шт.

179873

BOLT,Hex, 7/16" - 14 x 3 3/4", Gr 5

8шт.

13

396316R1

BRACKET, brake pedal

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

14

392554R2

SHIM

brake housing

20шт.

15

388270R1

PIN

brake reaction

2шт.

16

393076R1

RING

retaining snap

2шт.

17

403840R2

ROD

brake operating, will work for 388271R1

2шт.

103026

NUT,3/8"-24, G5

2шт.

114786

PIN

7/16 x 1-15/64 rod end

2шт.

280250

COTTER PIN,3/32" OD x 3/4" L

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

18

368298R1

BALL

brake operating rod

2шт.

19

368299R1

INSULATOR

BOOT, enclosure

2шт.

20

395859R11

PEDAL ASSY, LH brake

1шт.

179867

BOLT,Hex, 7/16" - 14 x 2 1/4", Gr 5

SCREW, 7/16-14 x 2-1/4 hex-hd cap

1шт.

271500

SOCKET

7/16-14 hex.

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

21

43751DB

LATCH, PEDALS

PLATE, brake pedal lock

1шт.

22

51293D

SPRING

brake pedal lock plate tension

1шт.

104087

RIVET,But Hd, 1/4" x 1 1/4"

1/4 x 1-1/4 rd-hd

1шт.

23

126-122

WOODRUFF KEY,#13, 3/16" x 1", HT

3/16 x 1 Woodruff 13

2шт.

24

395860R1

PEDAL, RH brake

1шт.

25

19700R91

FITTING

3/16-45 deg angle drive type

1шт.

26

396314R1

SPRING

brake pedal return

2шт.

27

400383R1

SHAFT

brake pedal, will work for 395922R1

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

28

48983D

THRUST WASHER

brake pedal shaft thrust

2шт.

29

40435D

WASHER, brake pedal shaft

1шт.

30

388275R1

LEVER

brake operating

1шт.

179867

BOLT,Hex, 7/16" - 14 x 2 1/4", Gr 5

SCREW, 7/16-14 x 2-1/4 hex-hd cap

1шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

31

362464R1

SHAFT, brake lock, Serial Range: -12722

1шт.

31

406411R1

SHAFT, brake lock, Start Serial: 12723

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

32

362469R11

PAWL

ASSY, brake lock, Serial Range: -12722

1шт.

Note - P/N 362469R11 IS 29/32" WIDE PER PRINT 10/7/68. JBEDFORD 7/21/98.

1шт.

32

406412R1

PAWL

ASSY, brake lock, Start Serial: 12723

1шт.

Note - P/N 406412R1 IS 1.00/1.06" WIDE PER PRINT 10/7/68. JBEDFORD 7/21/98.

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/16 x .095

1шт.

33

396315R1

ROD

brake lock operating

1шт.

16558R1

WASHER

17/64 x 5/8 x .049

3шт.

107761

COTTER PIN,1/16" x 5/8"

PIN, SPLIT, (COTTER), 1/16" x 5/8"

3шт.

34

396224R1

BUSHING

brake shaft, tractors w/hydrostatic drive

1шт.

35

362462R1

RATCHET

brake lock

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

2шт.

36

362698R1

SPRING

brake lock operating rod

1шт.

179812

GEAR

SCREW, 5/16-18 x 1/2 hex-hd cap

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

496-21047

WASHER

15/32 x 59/64 x .065

1шт.
