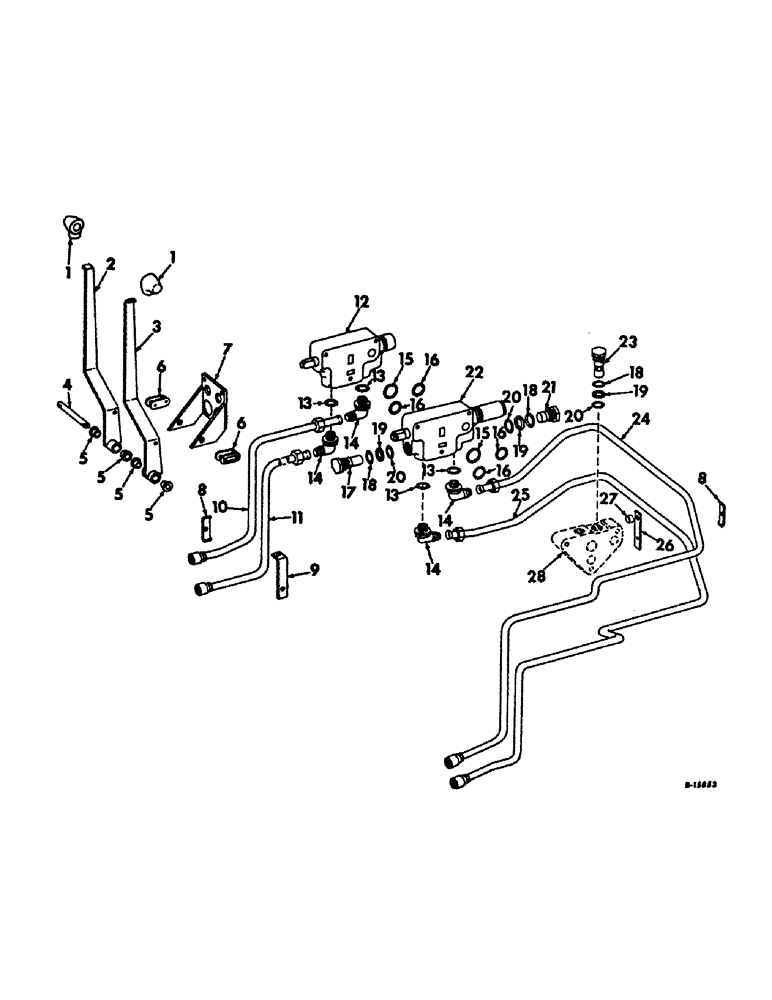

Запчасти Case IH 2656 (F-61) - HYDRAULICS, EXTERNAL LOADER VALVES AND TUBES, 2656 TRACTORS WITH SERIAL NO. 12096 AND BELOW (07) - HYDRAULIC SYSTEM

1

379022R2

KNOB

lever

2шт.

2

399214R1

LEVER ASSY, inner

1шт.

472873R2

BUSHING

valve lever

1шт.

3

399217R1

LEVER ASSY, outer

1шт.

478873R1

BUSHING, valve lever

1шт.

4

399213R1

PIN, pivot

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

5

374940R1

NYLON BEARING

lever

4шт.

6

471714R91

DRAG LINK

LINK, connecting

2шт.

7

399210R1

BRACKET ASSY, valve mounting

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 C-Z hex-hd cap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

8

379045R1

CLAMP

tube

3шт.

120376

NUT,5/16"-18, G5

3шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

SCREW, 5/16-18 x 1-1/2 C-Z hex-hd cap

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

9

399219R1

SUPPORT, bracket

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

10

399152R1

TUBE ASSY, front upper RH

1шт.

11

399154R1

TUBE ASSY, front lower RH

1шт.

12

399151R93

VALVE ASSY, open center control, for components see list of parts under details of hydraulic control valves

1шт.

20847R1

BOLT,Hex, 3/8" - 16 x 6 1/4", Gr 8

SCREW, 3/8-16 x 6-1/4 hex-hd cap

3шт.

13

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

4шт.

14

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 37 deg hyd flared tube adj str thd 90 deg

4шт.

15

381885R1

O-RING,0.103" Thk x 1.362" ID, -126, Cl 6, 90 Duro

1-3/8 x 1-9/16 x 3/32

2шт.

16

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

1 1-3/16 x 3/32

4шт.

17

382479R91

LOCK VALVE

VALVE ASSY, cushion relief, 2500 PSI, used in hyd open center control valve

1шт.

18

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 x 3/32

3шт.

19

378985R2

BACK-UP RING

backup

3шт.

20

383219R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32

3шт.

21

378899R1

PLUG

relief valve chamber

1шт.

22

383269R95

VALVE

ASSY, open center control, for components see list of parts under details of hydraulic control valves

1шт.

23

388208R93

VALVE

ASSY, pilot operated relief, 2000 PSI

1шт.

24

399156R1

TUBE ASSY, lift upper

1шт.

25

399158R1

TUBE ASSY, lift lower

1шт.

26

399220R1

BAR, rear bracket

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 C-Z hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

27

55754D

SPACER,1/2" X-Strng Pipe x 5/8"

rear bracket bar

1шт.

28

381795R2

BLOCK, refer to rear frame cover and connections listing, section A

1шт.
