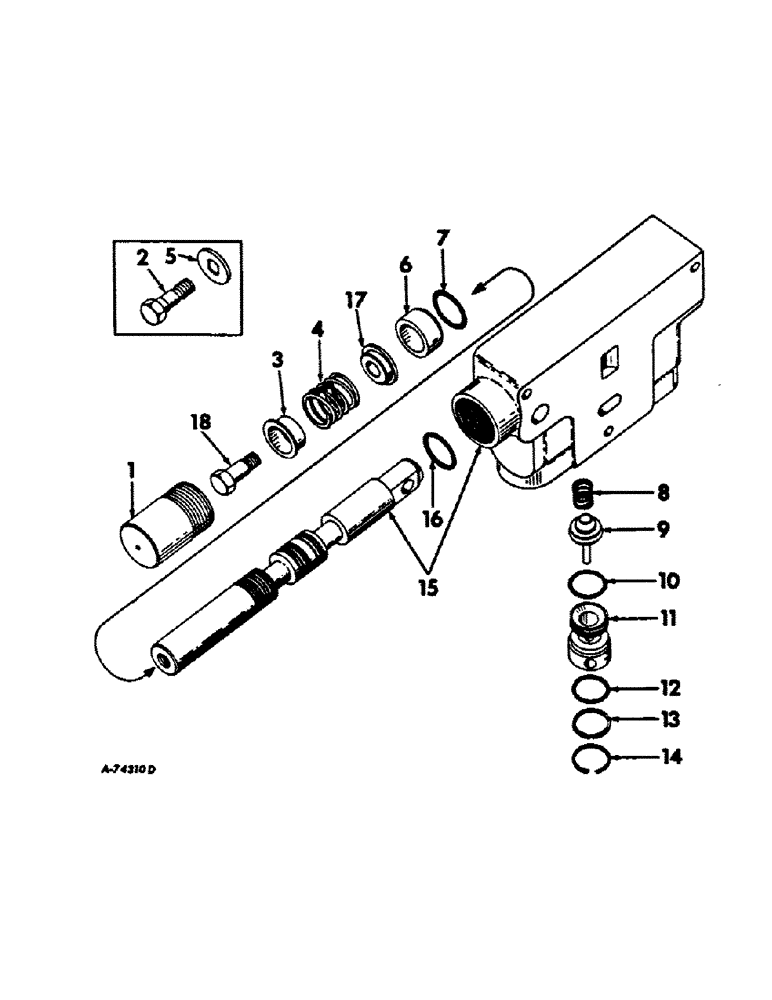

Запчасти Case IH 2656 (F-60) - HYDRAULICS, HYDRAULIC CONTROL VALVE, THREE POSITION SPRING CENTERED, FOR INTERNATIONAL 2656 TRACTORS (07) - HYDRAULIC SYSTEM

399151R93

VALVE ASSY, hydraulic control

1шт.

1

395782R2

CAP

centering spring

1шт.

2

(Not used in this application)

1шт.

3

376423R1

CUP

RETAINER, centering spring

1шт.

4

384381R1

SPRING

centering

1шт.

5

(Not used in this application)

1шт.

6

395781R3

DETENT

RETAINER, valve spool o-ring

1шт.

7

528249R1

O-RING

7/8 x 1-1/16 x 3/32, control valve spool lower

1шт.

8

395278R1

SPRING

back flow check poppet valve

1шт.

9

383279R11

VALVE POPPET

POPPET, w/seal, check, furnish valve, 395277R1 and 395278R1 spring

1шт.

9

395277R1

VALVE

back flow check poppet

1шт.

10

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 x 3/32

1шт.

11

383280R1

VALVE

RETAINER, back flow check valve poppet

1шт.

12

362796R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32, check ball retainer outer

1шт.

13

376433R1

BACK-UP RING,0.957" ID x 0.87" Width

WASHER, check poppet retainer outer

1шт.

14

537603R1

RING

check poppet retainer snap

1шт.

15

BODY ASSY, control valve, not serviced separately, order valve assy

1шт.

16

406181R1

O-RING,21.82mm ID x 3.53mm Width

7/8 x 1-1/18 x 1/8, S treated, control valve spool upper

1шт.

17

395951R1

SPACER, centerting spring screw, order retainer, 406825R1

1шт.

17

399515R1

WASHER, centering spring, order retainer, 406825R1

1шт.

17

406825R1

CAPSCREW

RETAINER, centering spring

1шт.

18

284288R1

SCREW, centering spring, order retainer, 406825R1 and screw, 395950R1

1шт.

18

395950R1

SCREW,Hex, 7/16" - 14 x 1.24"

centering spring

1шт.

383548R92

SET OF PARTS

PACKAGE, open center control valve, consists of (1) o-ring 359158R1, (1) o-ring 362796R1, (1) o-ring 364879R1, (1) o-ring 406181R1, (1) o-ring 528249R1, (1) retainer 383280R1, (1) ring 537603R1, (1) spring 395278R1, (1) valve 395277R1, (1) washer 376433R1

1шт.

548787R91

KIT

PACKAGE, three position control valve lower seal, consists of (1) cap 395782R2, (1) instruction 1084100R1, (1) o-ring 528249R1, (1) retainer 395781R3

1шт.
