Запчасти Case IH 2656 (F-58) - HYDRAULICS, HYDRAULIC CONTROL VALVE, FOUR POSITION SPRING CENTERED, FOR INTERNATIONAL 2656 TRACTORS (07) - HYDRAULIC SYSTEM

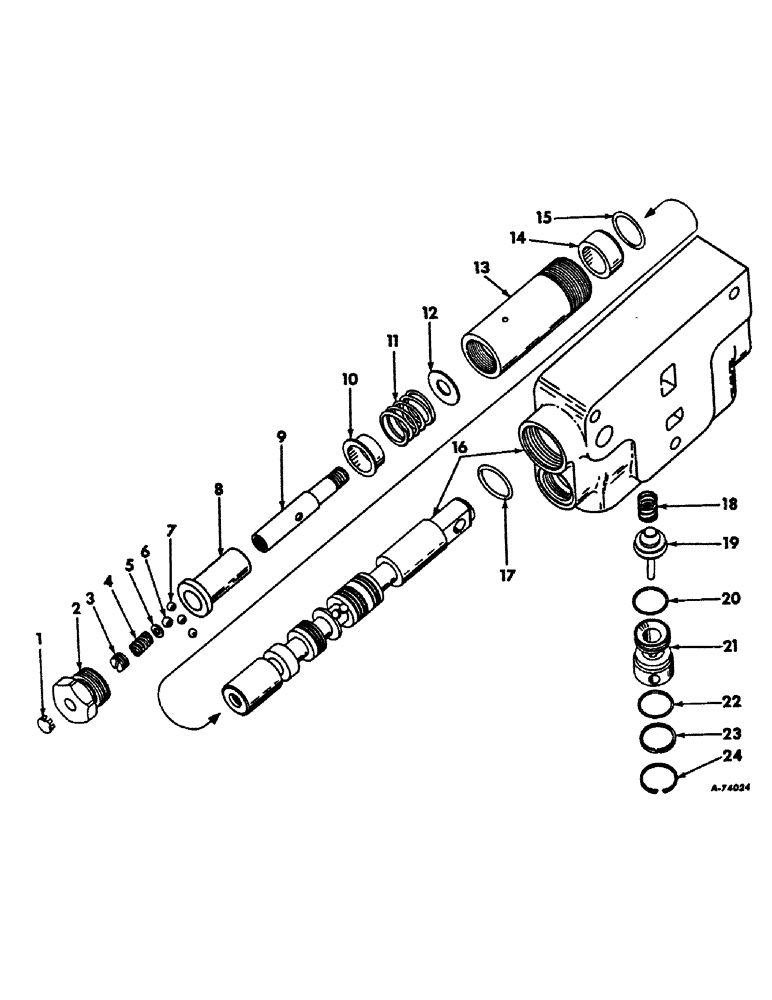

Схема запчастей Case IH 2656 - (F-58) - HYDRAULICS, HYDRAULIC CONTROL VALVE, FOUR POSITION SPRING CENTERED, FOR INTERNATIONAL 2656 TRACTORS (07) - HYDRAULIC SYSTEM
15
11
16
3
20
4
9
18
24
7
1
2
19
10
5
8
6
17
21
23
13
22
14
12

Артикул

Название

Примечание

Количество

383269R95

VALVE

ASSY, hyd control w/7/8 in. spool

1шт.

1

432539

HOLE PLUG BUTTON,7/16"

PLUG, 7/16 stl button

1шт.

2

376425R1

PLUG

CAP ASSY, control valve

1шт.

3

377803R1

PLUG

spring retaining

1шт.

4

377802R1

SPRING

detent

1шт.

5

377801R1

WASHER,5.87mm ID x 11.18mm OD x 3.81mm Thk

detent actuating ball

1шт.

6

17010R1

BALL,5/16" Dia

Detent actuating 5/16" Dia

1шт.

7

17008R1

BALL,1/4" Dia

Chrome-Steel, detent 1/4" Dia

3шт.

8

376428R1

BUSHING

SLEEVE, position control

1шт.

9

382661R2

ACTUATOR, centering spring

1шт.

10

376423R1

CUP

RETAINER, centering spring

1шт.

11

384381R1

SPRING

centering

1шт.

12

376420R2

WASHER,13.34mm ID x 33.53mm OD x 1.52mm Thk

centering spring, thin

1шт.

13

395783R2

SLEEVE CYLINDER

SLEEVE, cap retaining

1шт.

14

395781R3

DETENT

RETAINER, valve spool o-ring

1шт.

15

528249R1

O-RING

7/8 x 1-1/16 x 3/32, S treated, control valve spool lower

1шт.

16

BODY ASSY, control valve, not serviced separately, order valve assy

1шт.

17

406181R1

O-RING,21.82mm ID x 3.53mm Width

7/8 x 1-1/8 x 1/8, S treated, control valve spool upper

1шт.

18

395278R1

SPRING

check poppet valve

1шт.

19

383279R1

POPPET, w/seal, check, furnish valve, 395277R1 and spring, 395278R1

1шт.

19

395277R1

VALVE

back flow check poppet

1шт.

20

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 x 3/32, check ball retainer inner

1шт.

21

383280R1

VALVE

RETAINER, valve back flow check poppet

1шт.

22

362796R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32, check ball retainer outer

1шт.

23

376433R1

BACK-UP RING,0.957" ID x 0.87" Width

WASHER, check poppet retainer outer

1шт.

24

537603R1

RING

check poppet retainer snap

1шт.

383548R92

SET OF PARTS

PACKAGE, open center control valve, consists of (1) o-ring 359158R1, (1) o-ring 362796R1, (1) o-ring 364879R1, (1) o-ring 406181R1, (1) o-ring 528249R1, (1) retainer 383280R1, (1) ring 537603R1, (1) spring 395278R1, (1) valve 395277R1, (1) washer 376433R1

1шт.

548788R91

STRIPPER PACKAGE

PACKAGE, four position control valve lower seal, consists of (1) instruction 1084099R1, (1) o-ring 528249R1, (1) retainer 395781R3, (1) sleeve 395783R2

1шт.

Выбрано товаров: 28
