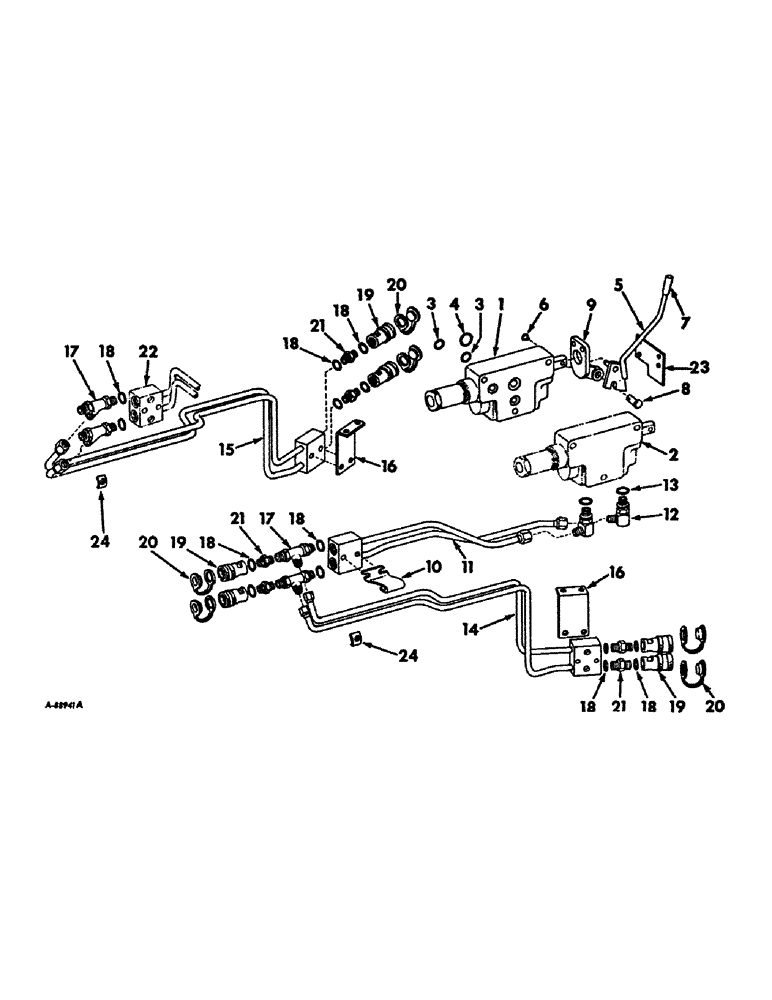

Запчасти Case IH 2656 (F-50) - HYDRAULICS, DOUBLE AUXILIARY HYDRAULIC VALVE AND TUBES (07) - HYDRAULIC SYSTEM

396492R91

PARTS ACCESSORY, second auxiliary valve with RH rear manifold, for tractors equipped w/single auxiliary valve w/LH rear manifold or tractors w/LH front & LH rear manifolds, consists of all unmarked parts & those marked unit A

1шт.

Service parts for LH front mounted manifold, for tractors equipped w/single or double auxiliary hyd valves w/LH or LH and RH rear outlets w/ or w/o double acting check valve, consists of all unmarked parts & those marked unit B

1шт.

Service parts for RH front mounted manifolds, for tractors equipped w/double auxiliary hyd valve w/LH and RH outlets w/ or w/o double acting check valve, consists of all unmarked parts and those marked unit C

1шт.

528226R91

PARTS ACCESSORY, double auxiliary hyd valve, consists of all unmarked parts & those marked unit D

1шт.

Service parts for RH front mounted manifold, for tractors equipped w/LH rear and RH rear manifolds w/o double acting check valves, consists of all unmarked parts and those marked unit E

1шт.

Service parts, LH and RH front mounted manifold, for tractors equipped w/LH and RH rear manifolds w/o double acting check valve, consists of all unmarked parts and those marked unit F

1шт.

1

383267R94

VALVE

ASSY, hyd open center, for components, see list of parts under details of hydraulic control valve, 1 used unit A, 2 used unit D

1шт.

20847R1

BOLT,Hex, 3/8" - 16 x 6 1/4", Gr 8

SCREW, 3/8-16 x 6-1/4 hex-hd cap, unit A

3шт.

20160R1

BOLT,3/8" x 6 7/8", Gr 8

SCREW, 3/8-16 x 6-7/8 hex-hd cap, unit D

3шт.

9410360

PLUG

7/8-14 C-Z str-thd o-ring boss, 4 used unit D

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, 4 used unit D

1шт.

2

VALVE ASSY, hydraulic control, part of single hyd valve attachments, mounted in outer position on tractors equipped w/double auxiliary valves

1шт.

3

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

1 x 1-3/16 x 3/32 hyd open center valve, small, 2 used unit A, 4 used unit D

1шт.

4

381885R1

O-RING,0.103" Thk x 1.362" ID, -126, Cl 6, 90 Duro

1-3/8 x 1-3/16 x 3/32 hyd open center valve, large, 1 used unit A, 2 used unit D

1шт.

5

396480R1

LEVER

ASSY, hyd open center valve actuating, 1 used unit A, 2 used unit D

1шт.

366613R1

SPRING

WASHER, spring

1шт.

6

370290R1

SNAP RING,#50, .392" Dia, E-Type

Ring, Retaining, , 1 used unit A; 2 used unit D #50, .392" Dia, E-Type

1шт.

7

396454R1

GRIP

lever handle, 1 used unit A, 2 used unit D

1шт.

8

J547M

PIN

1/2 x 1-7/16 std-hd, 1 used unit A, 2 used unit D

1шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/16 x .095

2шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

9

378029R1

BRACKET

valve lever, 1 used unit A, 2 used unit D

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

1шт.

10

389717R1

SUPPORT

BRACKET, RH rear manifold junction block, unit A

1шт.

181380

BOLT,Hex, 3/8" - 24 x 2 1/4", Gr 5

SCREW, 3/8-24 x 2-1/4 hex-hd cap

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .051) 3/8"

2шт.

103026

NUT,3/8"-24, G5

2шт.

11

397103R91

MANIFOLD ASSY, RH rear to 2nd valve, unit A

1шт.

9410356

PLUG

7/16-20 str-thd o-ring boss

2шт.

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

2шт.

12

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 C-Z 37 deg hyd flared tube adj str thd 90 deg, 2 for units A, B and C

1шт.

13

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, 2 used unit A, 4 used units B, C, E and F

1шт.

14

398132R1

MANIFOLD ASSY, RH front, units C, E and F

1шт.

9410356

PLUG

junction block

2шт.

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

2шт.

15

398131R1

MANIFOLD ASSY, LH front, units B and F

1шт.

9410356

PLUG

junction block

2шт.

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

2шт.

16

398167R1

SUPPORT, front manifold bracket, 1 used units B, C and E, 2 used unit F

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8-16 x 3/4 znd sq-nk crg

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

2 used units B, C and E 3/8"-16, G5

4шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

17

399072R1

TEE

7/8-14 37 deg hyd flared tube, 2 used units B, C and E, 4 used unit F

1шт.

18

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, junction block tee, 4 used units A, B, C and E, 8 used unit F

1шт.

19

395150R91

COUPLING, QUICK, FEM

COUPLING ASSY, hyd self-sealing female, 2 used units A, B, C and E, 4 used unit F

1шт.

20

401757R11

PLUG

ASSY, coupling dust, one per coupling

1шт.

401758R1

WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk

coupling dust plug

1шт.

21

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION, 7/8-14 C-Z 37 deg hyd flared tube short swivel, self- sealing female coupling, 2 used units A, B, C and E, 4 used unit F

1шт.

22

397100R1

MANIFOLD ASSY, LH rear to inner valve, part of single auxiliary hyd valve attachments

1шт.

23

398559R1

BAR, auxiliary valve float lock, 1 used unit A, 2 used unit D

1шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

24

369758R11

CLAMP ASSY, front manifold, 2 used units, B, C and E, 4 used unit F

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

SCREW, 1/4-20 x 3/4 hex-hd cap, 1 per clamp assy

1шт.

395149R1

QUICK MALE COUPLING

COUPLING ASSY, hyd self-sealing male, one per coupling

1шт.
