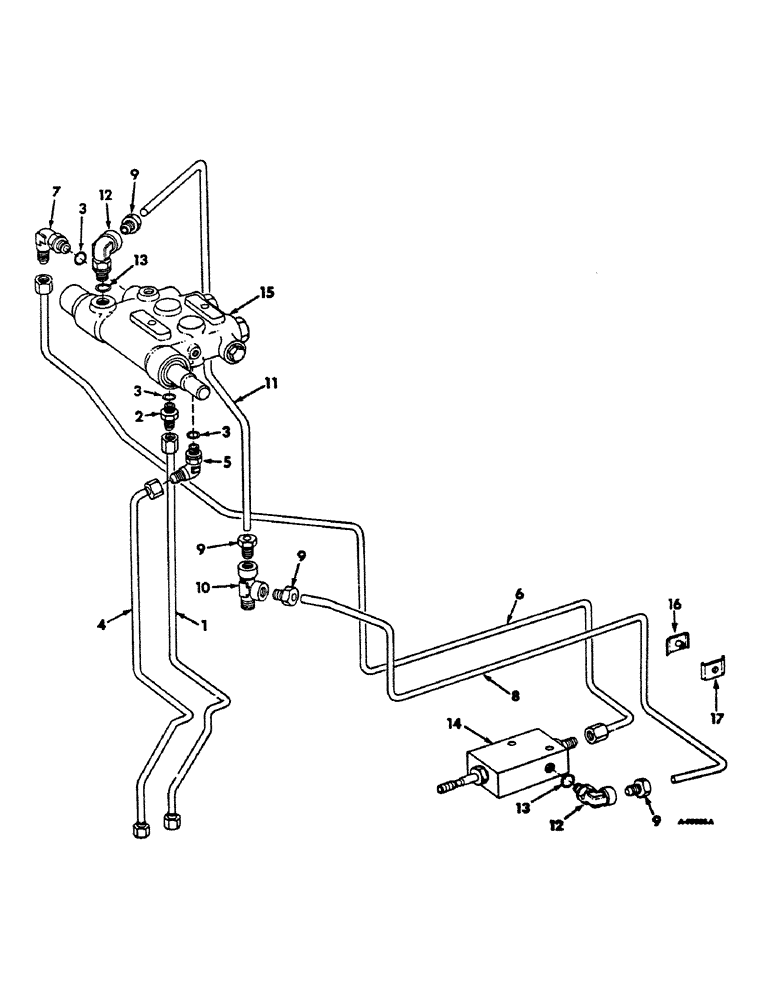

Запчасти Case IH 2656 (F-20) - HYDRAULICS, DRIVE CONTROL, FOOT-N-INCH VALVE, TUBES & RELATED PARTS, INTL HYDROSTATIC DRIVE TRACTOR (07) - HYDRAULIC SYSTEM

1

399676R1

TUBE

ASSY, shuttle valve forward port

1шт.

2

9410200

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

UNION, 7/16-20 C-Z 37 deg hyd flared tube short swivel

1шт.

3

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

3/8 x 1/2 x 1/16

3шт.

4

399678R1

TUBE

ASSY, shuttle valve reverse port

1шт.

5

9411102

ELBOW,45 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

7/16-20 C-Z 36 deg hyd flared tube adj str thd 45 deg

1шт.

6

399652R1

TUBE

ASSY, feather valve high pressure

1шт.

7

9410974

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

7/16-20 37 deg hyd flared tube adj str thd 90 deg

1шт.

8

399655R1

TUBE, feather valve drain

1шт.

9

222-503

TUBE NUT,1/2"-20

NUT, 1/2-20 hi-duty tube fitting

4шт.

10

61794D

TEE,1/8" NPT Run x 1/2"-20 BR

UNION, 1/2-20 hi-duty tube fitting tee

1шт.

11

399654R1

TUBE, shuttle valve drain

1шт.

12

398782R1

ELBOW

5/16 hi-duty

1шт.

14

398705R91

VALVE

ASSY, foot-n-inch, for components see list of parts under details of pilot relief valve

1шт.

15

398719R93

VALVE

ASSY, drive control, for components see list of parts under details of drive control valve

1шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

2шт.

16

369758R1

CLAMP

featther valve tube support, Start Serial: 14067

1шт.

179795

TILLAGE BLADE

SCREW, 1/4-20 x 3/4 hex-hd cap

1шт.

17

369758R11

CLAMP ASSY, feather valve tube, Start Serial: 14067

1шт.

13

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 3/8 OD tube

2шт.
