(F-17[A]) - HYDRAULICS, OIL COOLER AND CONNECTIONS, INTERNATIONAL GEAR DRIVE TRACTORS

Запчасти Case IH 2656 (F-17[A]) - HYDRAULICS, OIL COOLER AND CONNECTIONS, INTERNATIONAL GEAR DRIVE TRACTORS (07) - HYDRAULIC SYSTEM

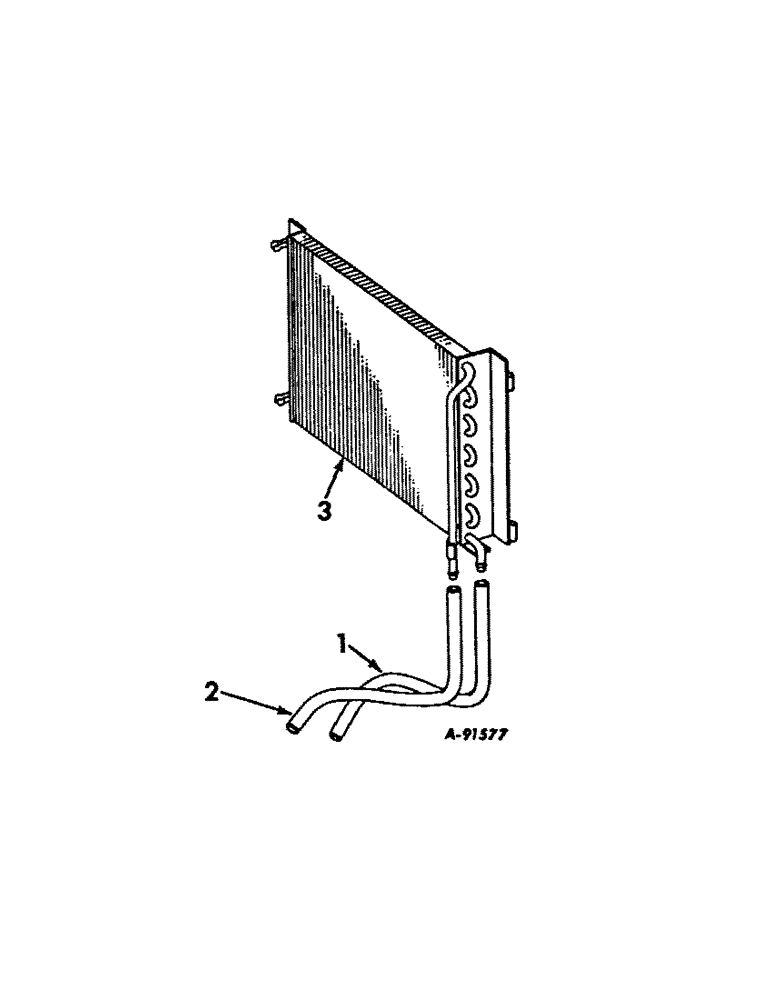

Схема запчастей Case IH 2656 - (F-17[A]) - HYDRAULICS, OIL COOLER AND CONNECTIONS, INTERNATIONAL GEAR DRIVE TRACTORS (07) - HYDRAULIC SYSTEM
3
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

388601R1

HOSE

oil cooler inlet

1шт.

2

400707R1

HYDRAULIC HOSE,12.70 mm ID, SAE 100R6, SAE J517

HOSE, oil cooler outlet

1шт.

3

396306R1

COOLER ASSY, oil

1шт.

388420R91

PIVOT

ASSY, oil cool

2шт.

399567R1

NUT, spring

2шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

2шт.

Выбрано товаров: 6
