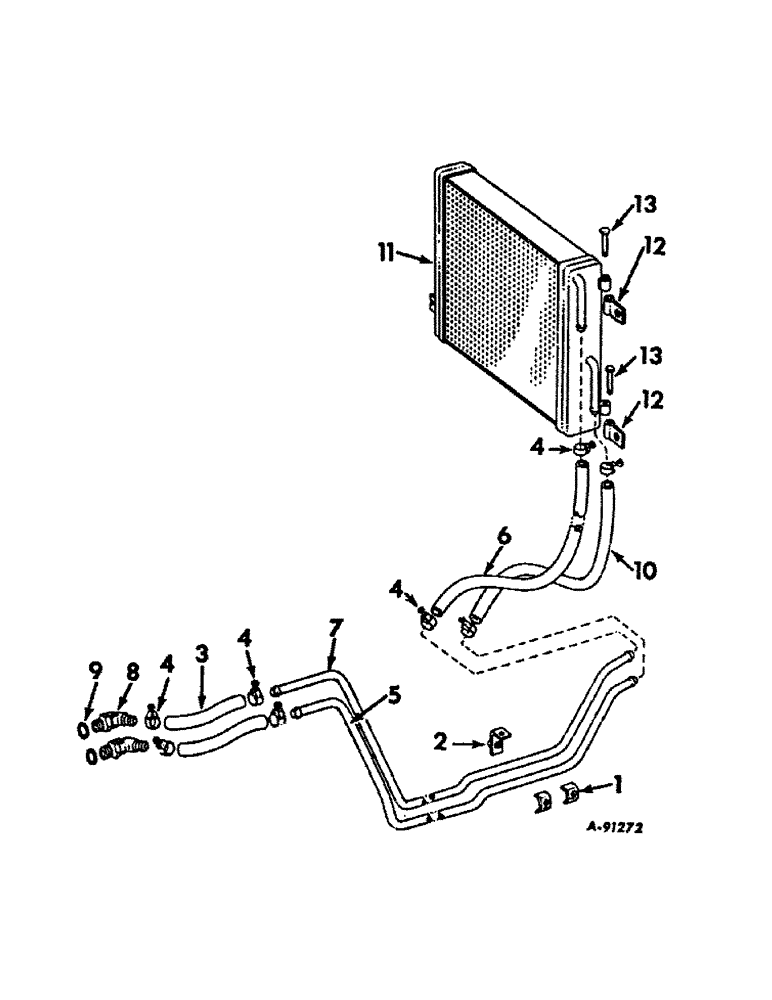

Запчасти Case IH 2656 (F-16) - HYDRAULICS, OIL COOLER AND CONNECTIONS, INTERNATIONAL HYDROSTATIC DRIVE TRACTORS (07) - HYDRAULIC SYSTEM

1

369758R1

CLAMP

oil cooler tubes

2шт.

179795

TILLAGE BLADE

SCREW, 1/4-20 x 3/4 hex-hd cap

2шт.

2

397206R1

SUPPORT, oil cooler tubes

1шт.

3

399682R2

HOSE

oil cooler return rear

2шт.

4

261498R91

COLLAR CLAMP,nasp

CLAMP, cooler return pipe hose

8шт.

5

399947R1

TUBE, oil cooler return

1шт.

6

399684R1

HOSE, oil cooler supply front, Serial Range: -14360

1шт.

6

535115R2

HOSE, oil cooler supply front, Start Serial: 14361

1шт.

7

399672R1

TUBE ASSY, cooler supply front

1шт.

8

399705R1

ELBOW, adjustable 45 deg

2шт.

9

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 x 3/32

2шт.

10

399683R1

HOSE

oil cooler return front, Serial Range: -14360

1шт.

10

538669R1

HOSE, oil cooler return front, Start Serial: 14361

1шт.

11

399308R1

COOLER

ASSY, oil, order package, 535118R91, Serial Range: -14360

1шт.

11

535116R1

COOLER

ASSY, oil, serial no, Start Serial: 14361

1шт.

12

399243R1

PIVOT ASSY, oil cooler, Serial Range: -14360

2шт.

399479R1

NUT, oil cooler fastener

1шт.

451623

SCREW, 1/4-20 x 7/8 znd slt hex-hd mach

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

2шт.

12

535117R1

PIVOT, oil cooler, serial no. 14361 & above

2шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

2шт.

386858R1

SCREW,Hex Wshr Hd, 3/8" - 16 x 0.75"

3/8-16 x 3/4 CDP hex. washer hd cap

1шт.

13

555469R1

AXLE PIN

PIN, 5/16 x 2-1/8 headed, Serial Range: -14360

2шт.

13

478043R1

HEADED PIN,5/16" x 2 3/8"

PIN, 5/16 x 2-3/8 headed, Start Serial: 14361

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

535118R91

PACKAGE, oil cooler service, consists of (1) bushing 538668R1, (1) hose 535115R2, (1) instruction 1082981R1 (NSS), (2) pin 478043R1, (2) pivot 5385117R1, (2) screw 179833, (1) screw 368858R1, (1) support 538670R1, Serial Range: -14360

1шт.
