(G-14[A]) - ELECTRICAL SYSTEM, BATTERY TRAY, INTERNATIONAL TRACTORS

Запчасти Case IH 2656 (G-14[A]) - ELECTRICAL SYSTEM, BATTERY TRAY, INTERNATIONAL TRACTORS (06) - ELECTRICAL SYSTEMS

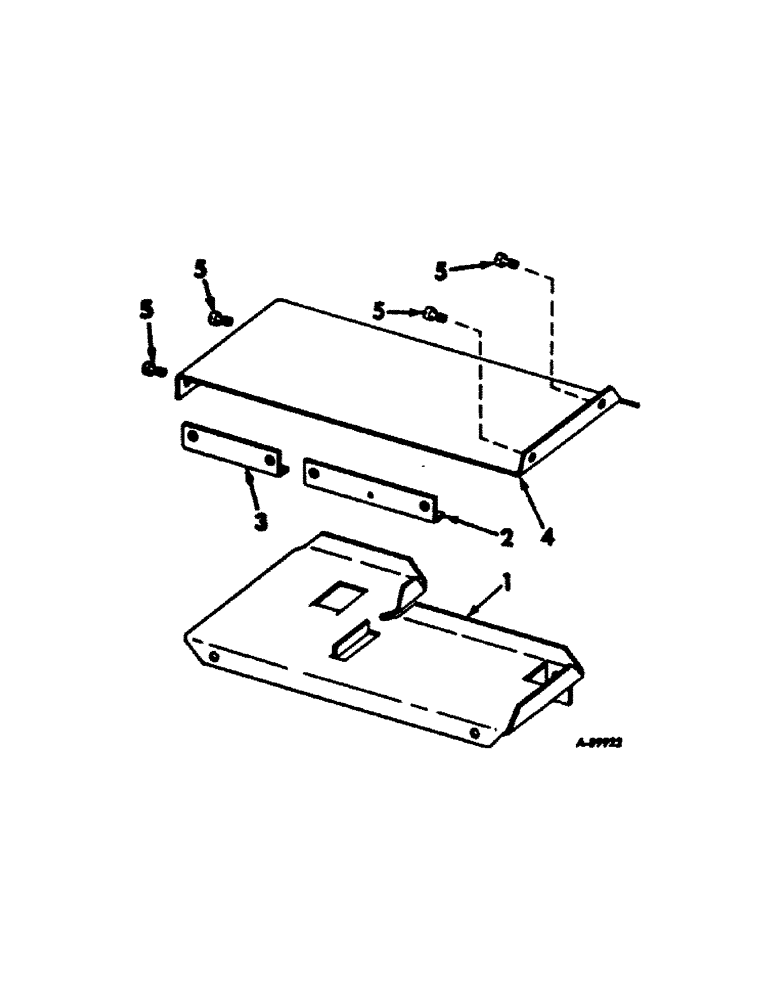

Схема запчастей Case IH 2656 - (G-14[A]) - ELECTRICAL SYSTEM, BATTERY TRAY, INTERNATIONAL TRACTORS (06) - ELECTRICAL SYSTEMS
4
2
5
5
1
3
5
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

395999R1

TRAY, battery

1шт.

2

396001R1

ANGLE ASSY, rear battery hold down

1шт.

3

396003R1

ANGLE ASSY, front battery hold down, diesel engine tractors

1шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

4

396007R1

COVER, battery

1шт.

5

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

SCREW, battery cover thumb

4шт.

376787R1

WASHER

RETAINER, slt hd capscrew

2шт.
