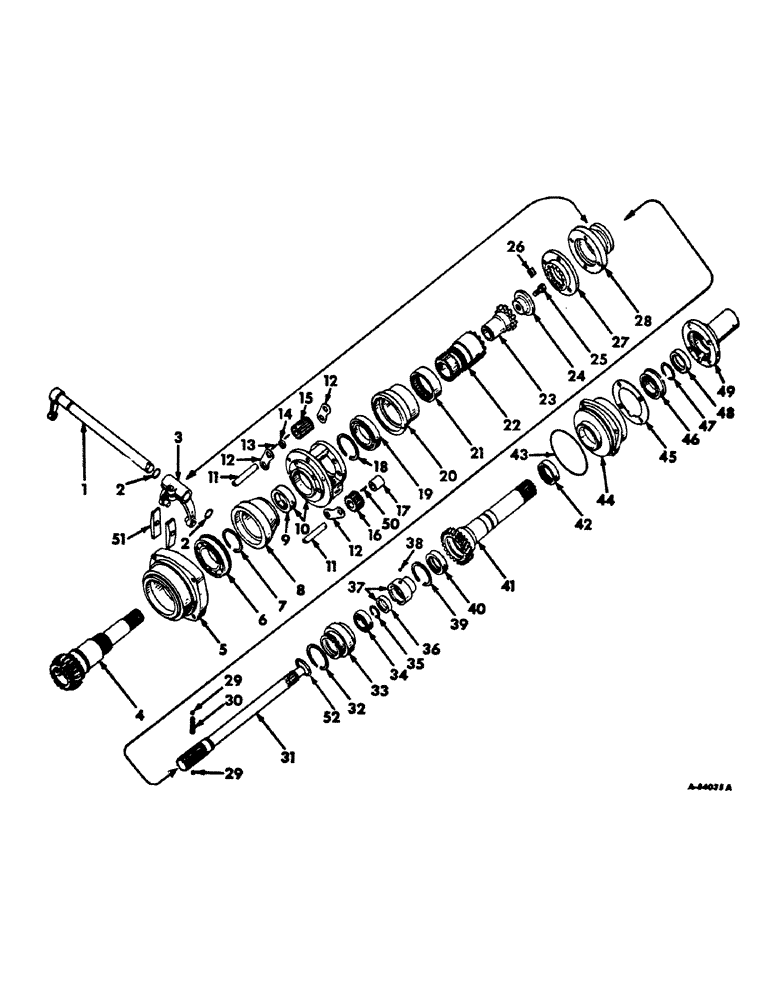

Запчасти Case IH 2656 (B-27) - POWER TRAIN, FORWARD AND REVERSE DRIVE, GEAR DRIVE TRACTORS (03) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
391291R91
SHAFT ASSY, selector lever
1шт.
41116D
KEY
selector shaft
1шт.
2
350667R1
O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro
11/16 x 7/8 x 3/32, selector shaft lever
2шт.
3
318720R91
FORK TEDDER
FORK ASSY, selector
1шт.
179841
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
3/8-16 x 1-1/4 hex-hd cap
1шт.
4
389378R1
SHAFT, transmission drive
1шт.
5
389380R11
CAGE ASSY, transmission drive shaft brg
1шт.
NLS
NO LONGER SERVICED
4шт.
6
389379R91
BEARING
transmission drive shaft ball
1шт.
7
357194R1
RING
transmission drive shaft brg snap
1шт.
8
389377R1
SPACER, planet carrier
1шт.
9
370486R91
NEEDLE BEARING
transmission drive shaft needle
1шт.
10
370485R11
CARRIER ASSY, planet
1шт.
179818
BOLT,Hex, 5/16" - 18 x 1", Gr 5
3шт.
11
370487R1
SHAFT, planet gear
6шт.
12
370488R1
PLATE, planet gear thrust
6шт.
13
364634R91
PIN
PACKAGE, planet gear bearing needle roller, consists of 138 rollers
1шт.
14
359888R1
SPACER
planet gear roller bearing
3шт.
15
370491R1
GEAR
planet, long
3шт.
16
370490R1
GEAR, planet, short
3шт.
17
370489R1
SPACER, planet gear
3шт.
18
357035R1
RING
reverse drive sun gear brg snap
1шт.
19
BALL BEARING,2.5585" ID x 90" OD x 0.5118"
BEARING, reverse drive sun gear front ball
1шт.
20
397097R1
CAGE, w/pin, 17172R1, reverse sun gear bearing
1шт.
17172R1
LOCK PIN,1/8" x 7/16", Slotted
Pin, 1/8" x 7/16", Slotted
1шт.
21
380078R91
NEEDLE BEARING
reverse sun gear needle
1шт.
22
370497R2
PINION
GEAR, reverse sun gear
1шт.
23
370500R2
COUPLING
transmission drive spline
1шт.
24
370752R1
RETAINER
transmission drive shaft
1шт.
25
371755R2
BOLT (SPREADER),Hex, 3/8" - 24 x 1"
BOLT, transmission drive shaft retainer
1шт.
26
59473DA
LOCK
spline shifter coupling collar bolt
4шт.
27
341721R1
COUPLING
spline shifter
1шт.
28
399073R91
COLLAR, w/pin, 609727C1, spline shifter coupling
1шт.
609727C1
PIN, shifter coupling collar dowel
1шт.
181361
BOLT,Hex, 3/8" - 24 x 7/8", Gr 5
SCREW, 3/8-16 x 7/8 hex-hd cap
4шт.
29
17010R1
BALL,5/16" Dia
Forward & reverse poppet 5/16" Dia
2шт.
30
37050R2
SPRING, forward & reverse poppet
1шт.
31
370503R3
SHAFT, clutch
1шт.
32
370856R1
RING, SNAP
RING, clutch shaft bearing cage snap
1шт.
33
378689R1
CAGE, clutch shaft bearing
1шт.
34
451590R91
BALL BEARING,30mm ID x 55mm OD x 13mm W
clutch shaft ball
1шт.
35
370504R1
RING
clutch shaft snap
1шт.
36
370510R91
OIL SEAL
SEAL, clutch shaft carrier oil
1шт.
37
378690R1
CARRIER
clutch shaft oil seal
1шт.
38
17006R1
BALL
3/16 chr stl
1шт.
40
378693R91
OIL SEAL
SEAL, independent PTO drive shaft
1шт.
41
389394R1
SHAFT, independent PTO drive, 24T, tractors with 540 RPM independent PTO drive
1шт.
41
399646R1
SHAFT, independent PTO drive, 29T, tractoors with 1000 RPM independent PTO drive
1шт.
42
359960R91
NEEDLE BEARING,Needle, 52.37mm ID x 64.31mm OD x 25.4mm W
independent PTO drive shaft needle
1шт.
43
252556R1
O-RING,0.139" Thk x 5.234" ID, -252, Cl 5, 75 Duro
5-1/4 x 5-1/2 x 1/8, independent PTO drive shaft bearing cage
1шт.
44
389395R1
CAGE, independent PTO drive shaft brg
1шт.
NLS
NO LONGER SERVICED
4шт.
45
370518R1
GASKET
independent PTO drive shaft bearing retainer
1шт.
47
359894R1
RING, SNAP
RING, independent PTO drive shaft bearing snap
1шт.
48
384386R91
OIL SEAL,42.7mm ID x 63.7mm OD x 8.33mm Thk
Oil, Independent PTO Drive Shaft Bearing Retainer 1.752" ID x 2.503" OD x .689
1шт.
49
389396R1
RETAINER, independent PTO drive rive shaft brg
1шт.
179839
BOLT,Hex, 3/8" - 16 x 1", Gr 5
4шт.
50
370493R1
BEARING, NEEDLE
ROLLER, planet gear bearing needle
69шт.
51
345780R1
BLOCK
selector fork
2шт.
52
377952R1
O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro
9/16 x 3/4 x 3/32
1шт.
Выбрано товаров: 62
