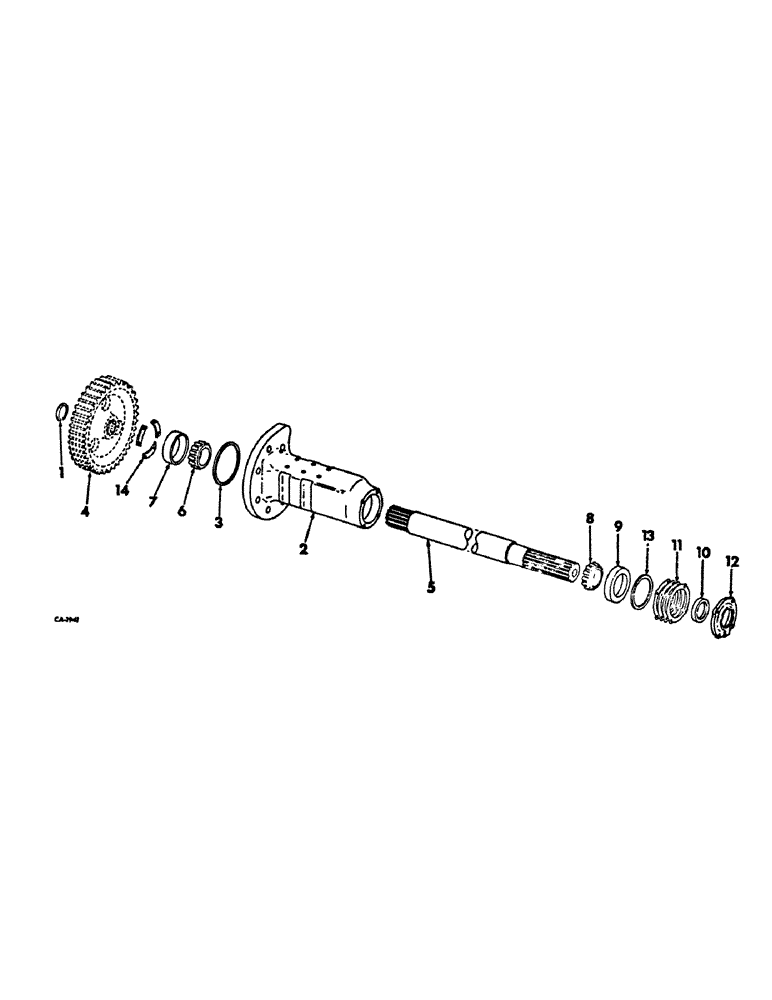

Запчасти Case IH 2656 (B-21) - POWER TRAIN, REAR AXLE, INTERNATIONAL TRACTORS EXCEPT ROW CROP TRACTORS (03) - POWER TRAIN

1

327059R1

SNAP RING,#275, 2.594, Ext

RING, external retaining

4шт.

2

530951R1

CARRIER, rear axle LH, for service replacement of carrier, 390828R1, also order (1) o-ring 610412C1, (1) retainer 530957R1, (1) shim 530953R1, (1) shim 530954R1, (1) shim 530955R1, (1) shim 530956R1, Serial Range: -14084

1шт.

2

530952R1

CARRIER, rear axle RH, for service replacement of carrier, 390829R1, also order, (1) o-ring 610412C1, (1) retainer 530957R1, (1) shim 530953R1, (1) shim 530954R1, (1) shim 530955R1, (1) shim 530956R1, Serial Range: -14084

1шт.

570879R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

SCREW, 5/8-11 x 2-1/4 hex-hd cap

14шт.

3

388108R1

O-RING,6.234" ID x 0.139" Width

RING, rear axle carrier sealing

2шт.

4

BULL GEAR, refer to differential listing

1шт.

5

395882R1

AXLE, rear

2шт.

6

ST794A

BEARING ASSY,71.44mm ID x 36.25mm W

rear axle inner cone

2шт.

7

13273D

BEARING, CUP,2.8755" ID x 5.001" OD x 1.452"

BEARING, rear axle inner cup

2шт.

8

ST761A

ROLLER BEARING,71.45mm ID x 28.57mm W

BEARING ASSY, rear axle outer cone

2шт.

9

ST856

CUP

BEARING, rear axle outer cup

2шт.

10

379248R91

OIL SEAL

rear axle oil

2шт.

11

388112R1

SHIM

carrier cap, .005, (or as required), Serial Range: -14084

4шт.

11

530953R1

SHIM

carrier cap, .005, (or as required), Start Serial: 14085

4шт.

11

388113R1

SHIM

carrier cap, .007, (or as required), Serial Range: -14084

4шт.

11

530954R1

SHIM

carrier cap, .007, (or as required), Start Serial: 14085

4шт.

11

388114R1

SHIM

carrier cap, .012, (or as required), Serial Range: -14084

4шт.

11

530955R1

SHIM

carrier cap, .012, (or as required), Start Serial: 14085

4шт.

11

388115R1

SHIM

carrier cap, .029, (or as required), Serial Range: -14084

2шт.

11

530956R1

SHIM

carrier cap, .029, (or as required), Start Serial: 14085

2шт.

12

395883R1

RETAINER, rear axle outer brg, Serial Range: -14084

2шт.

12

530968R1

RETAINER

rear axle outer brg, Start Serial: 14085

2шт.

NLS

NO LONGER SERVICED

8шт.

13

393120R1

O-RING,0.139" Thk x 4.359" ID, -245, Cl 5, 75 Duro

4-3/8 x 4-5/8 x 1/8, Serial Range: -14084

2шт.

13

610412C1

O-RING,0.139" Thk x 4.609" ID, -247, Cl 5, 75 Duro

4-5/8 x 4-7/8x 1/8, Start Serial: 14085

2шт.

14

394646R1

RETAINER

rear axle inner brg

6шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

12шт.
