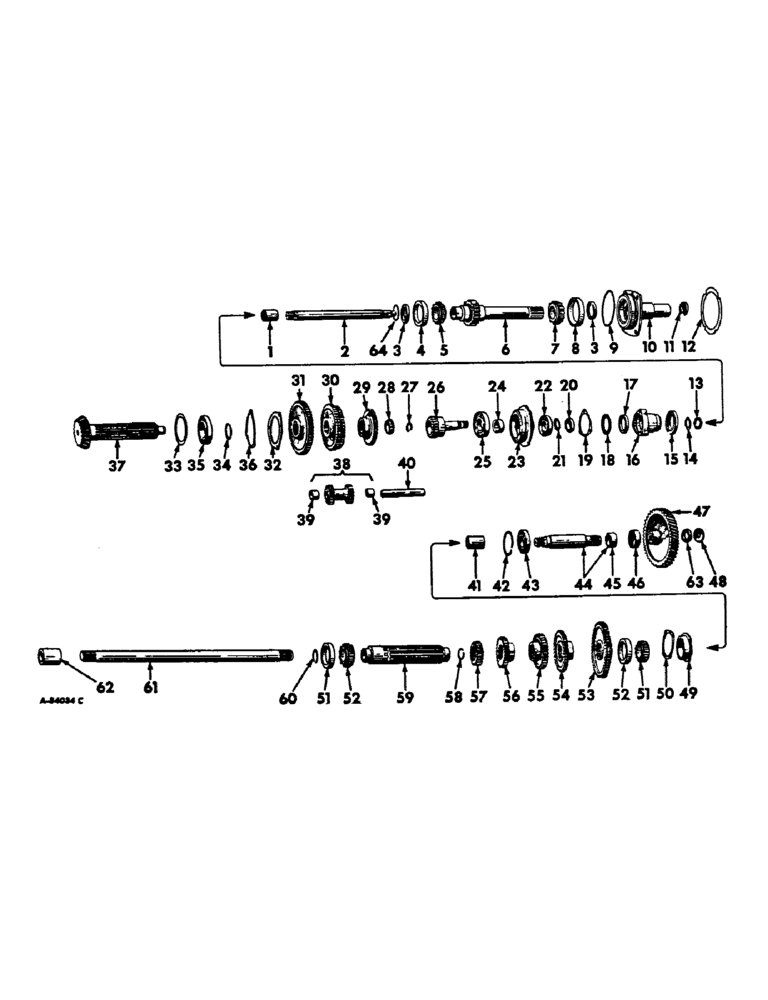

Запчасти Case IH 2656 (B-13) - POWER TRAIN, TRANSMISSION AND POWER TAKE OFF DRIVE, GEAR DRIVE TRACTORS (03) - POWER TRAIN

1

358878R1

SLEEVE

COUPLING, transmission drive shaft

1шт.

Not used on tractors with torque amplifier.

1шт.

Not used on tractors with forward and reverse drive.

1шт.

2

360491R5

SHAFT

clutch

1шт.

Not used on tractors with torque amplifier.

1шт.

Not used on tractors with forward and reverse drive.

1шт.

3

363514R93

OIL SEAL

power take off drive gear oil

2шт.

Not used on tractors with forward and reverse drive.

1шт.

4

374167R1

CUP ASSY.

BEARING, PTO drive shaft rear cup

1шт.

Not used on tractors with forward and reverse drive.

1шт.

5

G15215

ROLLER BEARING

BEARING ASSY, PTO drive shaft rear cone

1шт.

Not used on tractors with forward and reverse drive.

1шт.

6

388627R1

SHAFT

power take-off drive, 24 teeth

1шт.

Not used on tractors with forward and reverse drive.

1шт.

6

389146R1

SHAFT

independent PTO drive, 29 teeth, tractors w/1000 RPM PTO

1шт.

7

ST2118

TAPERED BEARING,1.75" ID x 3.27" OD x 0.9375"

BEARING ASSY, PTO drive shaft front cone

1шт.

Not used on tractors with forward and reverse drive.

1шт.

8

ST987

BEARING CUP

BEARING, PTO drive shaft front cup

1шт.

Not used on tractors with forward and reverse drive.

1шт.

9

252556R1

O-RING,0.139" Thk x 5.234" ID, -252, Cl 5, 75 Duro

SEAL, PTO drive shaft bearing cage

1шт.

Not used on tractors with forward and reverse drive.

1шт.

10

388674R1

CAGE

power take-off drive shaft bearing

1шт.

Not used on tractors with forward and reverse drive.

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

4шт.

11

524598R91

BALL BEARING,20mm ID x 52mm OD x 15mm W

clutch pilot ball

1шт.

11

524598R91GV

BEARING

Value, Ball Bearing

1шт.

12

388676R1

SHIM

PTO drive shaft brg, .007

1шт.

Not used on tractors with forward and reverse drive.

1шт.

13

358876R1

LOCK NUT

drive shaft lock

1шт.

Not used on tractors with torque amplifier.

1шт.

Not used on tractors with forward and reverse drive.

1шт.

14

358875R1

WASHER

drive shaft nut

1шт.

Not used on tractors with torque amplifier.

1шт.

Not used on tractors with forward and reverse drive.

1шт.

15

361248R92

OIL SEAL

transmission drive shaft front bearing retainer oil

1шт.

Not used on tractors with forward and reverse drive.

1шт.

16

360739R1

HUB

RETAINER ASSEMBLY, transmission driving shaft front bearing

1шт.

Not used on tractors with torque amplifier.

1шт.

Not used on tractors with forward and reverse drive.

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, 3/8-16 x 1-3/4 hex-hd cap

3шт.

17

400842R91

OIL SEAL

transmission driving shaft oil

1шт.

Not used on tractors with torque amplifier.

1шт.

Not used on tractors with forward and reverse drive.

1шт.

18

360741R1

WASHER

SPACER, transmission driving shaft bearing retainer

1шт.

Not used on tractors with torque amplifier.

1шт.

Not used on tractors with forward and reverse drive.

1шт.

19

360498R1

GASKET

transmission drive shaft front bearing retainer

1шт.

Not used on tractors with torque amplifier.

1шт.

Not used on tractors with forward and reverse drive.

1шт.

20

360740R1

BUSHING

SPACER, transmission drive shaft

1шт.

Not used on tractors with torque amplifier.

1шт.

Not used on tractors with forward and reverse drive.

1шт.

21

164513R1

O-RING

1-3/8 x 1-5/8 x 1/8, transmission drive shaft spacer

1шт.

Not used on tractors with torque amplifier.

1шт.

Not used on tractors with forward and reverse drive.

1шт.

22

379440R91

NO LONGER SERVICED

BEARING, transmission drive shaft front roller

1шт.

Not used on tractors with torque amplifier.

1шт.

Not used on tractors with forward and reverse drive.

1шт.

23

360496R1

CAGE

transmission drive shaft bearing

1шт.

Not used on tractors with torque amplifier.

1шт.

Not used on tractors with forward and reverse drive.

1шт.

NLS

NO LONGER SERVICED

4шт.

24

360493R1

BUSHING

SPACER, drive shaft brg, roller

1шт.

Not used on tractors with torque amplifier.

1шт.

Not used on tractors with forward and reverse drive.

1шт.

25

401961R91

BEARING

transmission drive shaft rear

1шт.

Not used on tractors with forward and reverse drive.

1шт.

26

388626R1

SHAFT

transmission drive, 22 teeth

1шт.

Not used on tractors with torque amplifier.

1шт.

Not used on tractors with forward and reverse drive.

1шт.

27

370504R1

RING

transmission main shaft pilot bearing snap

1шт.

28

388168R91

BEARING, ROLLER, CYL,30mm ID x 60.38mm OD x 30.16mm W

transmission main shaft pilot roller

1шт.

29

388167R1

GEAR

fourth and fifth speed sliding, 37 teeth

1шт.

30

388166R1

GEAR

second and third speed sliding, 48 and 44 teeth

1шт.

31

388165R1

GEAR

first and reverse speed sliding, 57 teeth, standard tractors

1шт.

31

397002R1

GEAR

first & reverse speed sliding, 52 T, tractors w/hi-speed first & reverse attachment

1шт.

32

388164R1

RETAINER

transmission main shaft rear bearing

1шт.

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

SCREW, 7/16-14 x 1 hex-hd cap

3шт.

33

397908R91

SHIM

PACKAGE, mainshaft rear bearing shim

1шт.

34

357035R1

RING

transmission main shaft rear bearing snap

1шт.

35

529427R91

BEARING, ROLLER, CYL,64.99mm ID x 120mm OD x 23mm W

transmission main shaft rear roller, replaces 388159R91

1шт.

36

360571R1

SHIM

main shaft rear brg retainer, .030

1шт.

37

388158R1

GEAR

SHAFT, transmission main, 14 teeth, Farmall tractors, International row crop tractors, western special tractors and International tractors w/18.4-30 rear tires

1шт.

37

395731R1

SHAFT, transmission main, 16 teeth, International tractors

1шт.

38

388170R11

GEAR WHEEL

GEAR ASSEMBLY, reverse idler, 19 and 23 teeth, standard tractors

1шт.

Not used on tractors with forward and reverse drive.

1шт.

38

397003R11

GEAR ASSY, reverse idler, 24 & 24T, tractors w/hi-speed first & reverse attachment

1шт.

39

43312DA

BUSHING,28.39mm ID x 31.69mm OD x 31.75mm L

reverse idler gear

2шт.

Not used on tractors with forward and reverse drive.

1шт.

40

388169R1

SHAFT

reverse idler

1шт.

Not used on tractors with forward and reverse drive.

1шт.

577247R1

LOCK PIN,3/8" x 2", Slotted

Pin, 3/8" x 2", Slotted

1шт.

181354

BOLT

SCREW, 3/8-24 x 1/2 hex-hd cap

1шт.

Q1597

WASHER

13/32 x 3/4 x .065

1шт.

41

359912R2

COUPLING

power take-off driven shaft front

1шт.

553050R1

LOCK PIN,1/4" x 1 3/4", Slotted

Pin, 1/4" x 1 3/4", Slotted

1шт.

42

393148R1

RING

power take-off driven shaft rear bearing snap

1шт.

43

ST215

BEARING, BALL,40 mm ID x 80 mm OD x 18 mm

BEARING, power take-off driven shaft rear ball

1шт.

44

389535R11

SHAFT

ASSY, independent PTO driven front

1шт.

45

360664R1

RACE

power take-off driven shaft front inner needle bearing

1шт.

46

360665R91

NEEDLE BEARING,Needle, 44.44mm ID x 53.99mm OD x 25.4mm W

power take-off driven shaft front inner needle

1шт.

47

389536R1

GEAR

independent PTO driven, 79 teeth

1шт.

47

389147R1

GEAR, independent PTO driven, 52 teeth, tractors w/1000 RPM PTO

1шт.

48

354617R1

WASHER

independent PTO driven gear retainer

1шт.

389259R1

BOLT,Hex, 1/2" - 20 x 1.84", Gr 4

retaining washer

1шт.

49

388153R1

CAGE, countershaft front bearing

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

4шт.

50

388154R1

SHIM

countershaft front brg, .030

1шт.

50

388155R1

SHIM

countershaft front brg, .012

1шт.

50

388156R1

SHIM

countershaft front brg, .007

1шт.

50

388157R1

SHIM

countershaft front brg, .005

1шт.

51

374167R1

CUP ASSY.

BEARING, countershaft cup

2шт.

52

G15215

ROLLER BEARING

BEARING ASSY, countershaft cone

2шт.

53

388152R1

GEAR

constant mesh, 59 teeth

1шт.

54

388151R1

GEAR

fourth speed driving, 44 teeth

1шт.

55

388150R1

GEAR

third speed driving, 37 teeth

1шт.

56

388149R1

GEAR WHEEL

GEAR, second speed driving, 33 teeth

1шт.

57

388148R1

GEAR

first speed driving, 24 teeth, standard tractor

1шт.

57

397001R1

GEAR, first speed driving, 29T, tractors w/hi-speed first & reverse attachment

1шт.

58

375374R1

RING

countershaft snap

1шт.

59

388147R1

COUNTERSHAFT, transmission, Farmall tractors w/serial no. 28885 and below, International tractors w/serial no. 8937 and below

1шт.

59

400673R1

SHAFT

COUNTERSHAFT, transmission, Farmall tractors w/serial no. 28886 and above, International tractors w/serial no. 8938 and above

1шт.

60

659676R1

SNAP RING,3.156", Int, #315

Ring, Snap, , countershaft rear brg, optional with 406754R1 3.156", Int, #315

1шт.

60

406754R1

RING

countershaft rear bearing snap, optional w/659676R1

1шт.

61

389141R11

SHAFT

independent PTO extension

1шт.

62

360168R1

COUPLING,12T

independent PTO extension shaft

1шт.

63

395082R1

RING

independent PTO driven gear wedge

1шт.

64

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 x 3/4 x 3/32, clutch shaft

1шт.

Not used on tractors with forward and reverse drive.

1шт.

372703R5

FLUID, hy-tran, quart can

1шт.

372704R5

FLUID

hy-tran, gallon can

1шт.

372705R5

FLUID

hy-tran, five gallon can

1шт.

407024R5

FLUID, hy-tran, fifteen gallon can

1шт.
