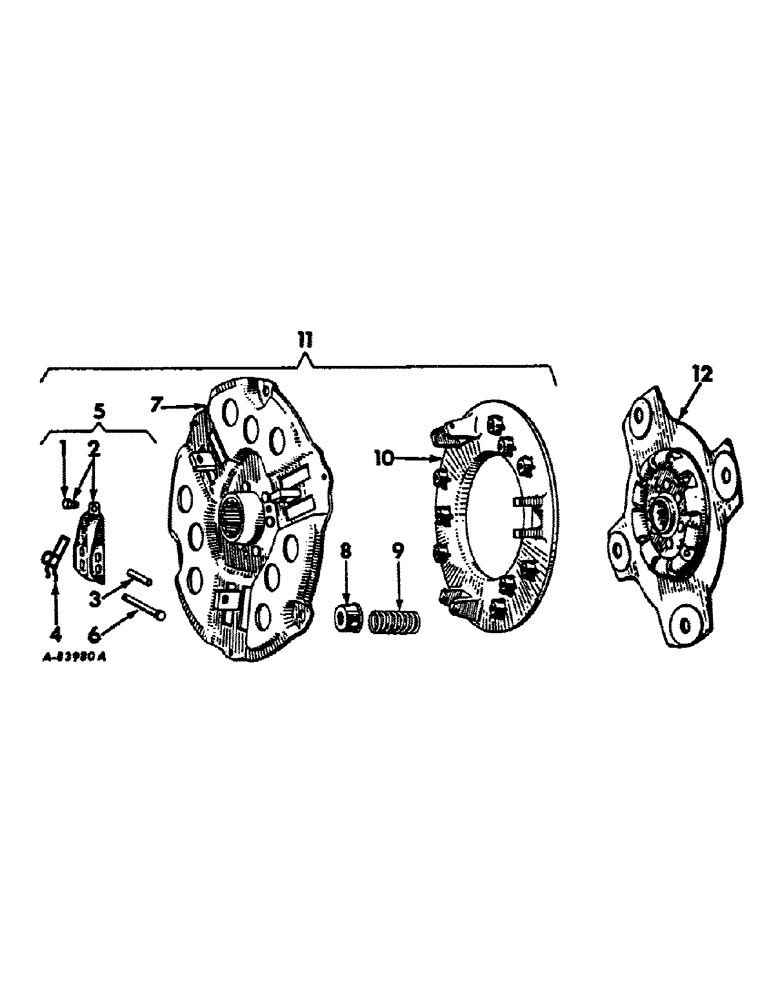

Запчасти Case IH 2656 (B-12) - POWER TRAIN, CLUTCH, GEAR DRIVE TRACTORS (03) - POWER TRAIN

1

146806R1

SCREW,Hex, 5/16" - 24 x 15/32"

SCREW, clutch lever adjusting

3шт.

2

389653R91

LEVER

LEVER ASSEMBLY, clutch

3шт.

3

143264R1

PIVOT PIN

PIN, lever pivot

3шт.

4

389654R1

SPRING

SPRING, clutch lever

3шт.

5

389652R91

PACKAGE

PACKAGE, clutch lever assembly

1шт.

6

149487R1

PIN

PIN, clutch lever

3шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

3шт.

95-11034

WASHER,1/4"

WASHER, 11/32 x 11/16 x .065

3шт.

7

389650R91

PLATE

SPARE PART PLATE ASSEMBLY, clutch back

1шт.

8

353316R1

SPRING CUP

CUP, clutch pressure spring

9шт.

9

52907D

SPRING

SPRING, clutch pressure

9шт.

9

404266R1

SPARE PART SPRING, clutch pressure, International 2656 tractors

9шт.

311292C1

WASHER

WASHER, pressure plate retaining

9шт.

311291C1

INSULATING WASHER

WASHER, pressure plate insulating

9шт.

10

389651R1

PLATE ASSY.

PLATE, clutch pressure

1шт.

11

388616R91

PLATE ASSY.

PLATE ASSY, clutch pressure

1шт.

11

388616R91R

REMAN-CLUTCH PLATE

Remanufactured Clutch Plate, 11 in,

1шт.

11

388616R91C

CORE-CLUTCH PLATE

Return Part Number

1шт.

11

401308R91

SPARE PART PLATE ASSY, clutch pressure, International 2656 tractors

1шт.

939323R1

12 PT SCREW,Flg, 5/16" - 18 x 0.88"

SCREW, 5/16-18 x 7/8 twelve-PT hd cap

6шт.

12

388625R91

DISC

DISC ASSY, clutch driven, DYNA life

1шт.

12

388625R93R

REMAN-CLUTCH DISC

Remanufactured, Clutch Disc - 11 in., 10Tooth hub, 1 1/8 in. OD of spline, 4 paddle

1шт.

12

388625R93C

CORE-CLUTCH DISC

Return Part Number

1шт.

12

401309R1

DISC

DISC ASSY, clutch driven, DYNA life, International 2656 tractors

1шт.
