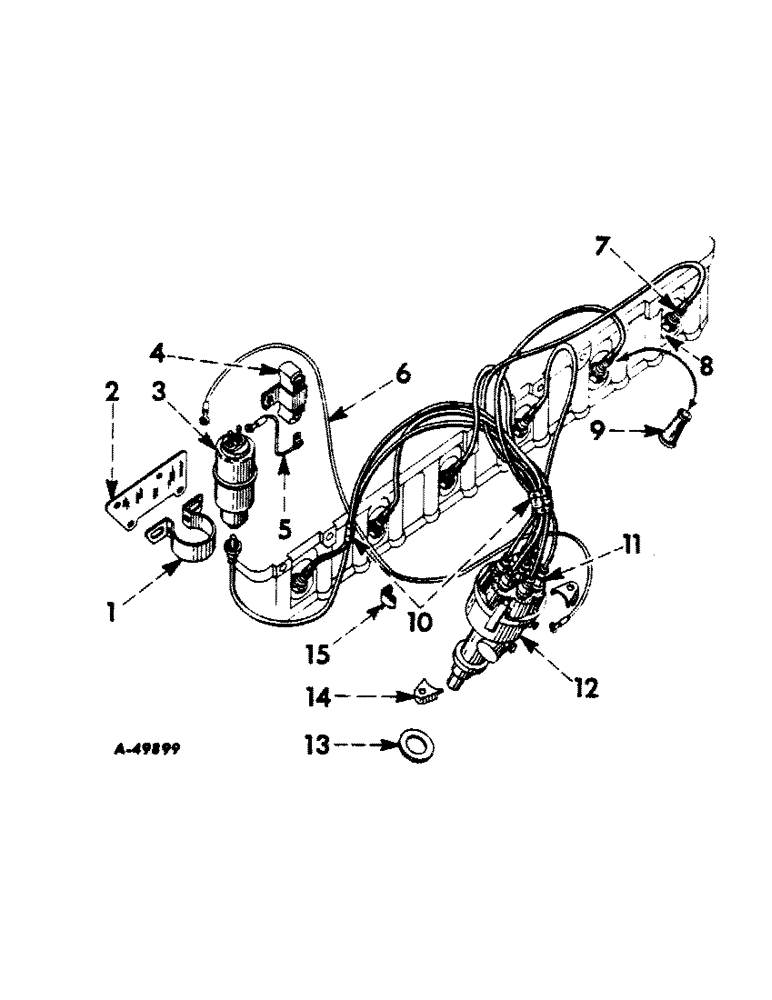

Запчасти Case IH 2606 (075) - ELECTRICAL SYSTEM, SPARK PLUGS, COIL, CABLES AND DISTRIBUTOR, CARBURETED ENGINE TRACTORS (06) - ELECTRICAL SYSTEMS

1

358619R1

CLAMP, coil

1шт.

120611

NUT,#10 - 32

no. 10NF cd-pltd sq.

1шт.

179812

GEAR

SCREW, 5/16 x 1/2" cap

2шт.

132926

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

no. 10NF x 1-1/4" slt-rd-hd mach

1шт.

95-11034

WASHER,1/4"

11/32 x 11/16" x 16 ga

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

2

370534R11

BRACKET ASSEMBLY, ignition coil (gasoline only)

1шт.

179852

BOLT

SCREW, 7/16 x 1/2" hex-hd cap

2шт.

3

368839R91

COIL

ASSEMBLY, ignition-12R

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

4

368573R91

RESISTOR

ignition coil

1шт.

5

NOT USED

1шт.

6

368267R91

CABLE

coil to distributor primary

1шт.

7

360943R91

SPARK PLUG

w/gasket, 37762H (light or moderated service) (Champion D-23)

6шт.

7

353985R91

SPARK PLUG, w/gasket, 37762H (light or moderate service) (AC-C88)

6шт.

7

359277R91

SPARK PLUG, w/gasket, 37762H (light or moderate service) (Auto-Lite BT-10)

6шт.

7

371522R91

SPARK PLUG

W/GASKET, 37762H (intermediate service) (Champion D-16)

6шт.

7

360942R91

SPARK PLUG

w/ gasket, 37762H (intermediate service) (Champion 8 com.)

6шт.

7

353982R91

SPARK PLUG, w/gasket, 37762H (normal service) (AC-C85)

6шт.

7

359276R91

SPARK PLUG

w/gasket, 37762H (normal service) (Auto-Lite BT-8)

6шт.

7

361688R91

SPARK ARRESTER

SPARK PLUG, w/gasket, 37762H (severe service) (Champion D-9)

6шт.

7

353983R91

SPARK PLUG, w/gasket, 37762H (severe service) (AC-C83)

6шт.

7

359275R91

SPARK PLUG, W/GASKET, 37762H (severe service) (Auto-Lite BT-4)

6шт.

7

361686R91

SPARK PLUG

w/gasket, 37762H (extreme severe service) (Champion D-6)

6шт.

7

353986R91

SPARK PLUG

w/gasket, 37762H (extreme severe service) (AC-C81)

6шт.

7

359274R91

SPARK PLUG, w/gasket, 37762H (extreme severe service) (Auto-Lite BT-3)

6шт.

7

393759R91

SPARK PLUG

w/gasket, 37762h (L.P. Gas) (Champion D-15Y)

6шт.

8

37762H

GASKET

spark plug

6шт.

9

371430R1

INSULATOR

spark plug terminal

6шт.

10

368270R91

CABLE

ASSEMBLY, spark plug (consists of six spark plug cables, coil to distributor cable and eight nipples, 251553R1)

1шт.

11

251553R1

BOOT

NIPPLE, distributor cap terminal

8шт.

12

383177R91

DISTRIBUTOR ASSEMBLY-gasoline (for components see list of parts under details of "Distributor")

1шт.

12

392892R91

DISTRIBUTOR ASSEMBLY, LP gas (for components see list of parts under details of "Distributor")

1шт.

13

353936R2

GASKET

distributor

1шт.

14

353937R1

CLIP

CLAMP, distributor

2шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

15

370535R1

CLIP

coil to distributor cable

1шт.

386871R1

WASHER, cable clip

1шт.
