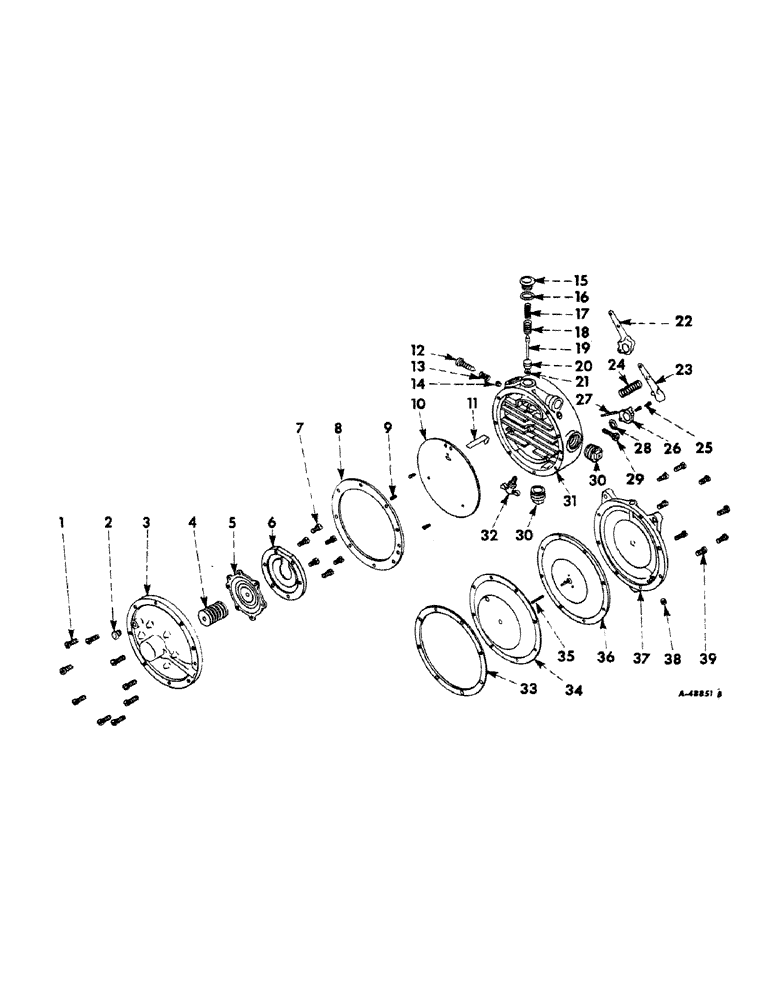

Запчасти Case IH 2606 (057) - FUEL SYSTEM, FUEL REGULATOR, L.P. GAS ENGINE TRACTORS (02) - FUEL SYSTEM

382044R91

REGULATOR ASSEMBLY, fuel

1шт.

1

19270R91

SCREW, no. 10NF x 5/8" slt-fil-hd cd-pltd

1шт.

WASHER, mach w/lock

9шт.

2

444814

PLUG,Hex Hd, 1/8"-27, Brass

1/8" pipe (in vaporizer cover)

1шт.

3

277195R91

COVER W/PLUG, 13017R1 assembly, vaporizer

1шт.

4

277196R91

SPRING ASSEMBLY, high pressure

1шт.

5

277370R91

DIAPHRAGM ASSEMBLY, high pressure

1шт.

6

277197R1

COVER, high pressure diaphragm

1шт.

7

19270R91

SCREW, no. 10NF x 5/8" slt-fil-hd cd-pltd mach w/lock washer

6шт.

8

277198R1

GASKET, vaporizer cover

1шт.

9

277199R1

SCREW, vaporizer partition plate

3шт.

10

277350R1

PLATE, vaporizer partition

1шт.

11

277351R1

LEVER, high pressure valve

1шт.

12

37179D

SCREW, idle adjusting

1шт.

13

14526D

SPRING, idle adjusting screw retainer spring

1шт.

14

277352R1

SCREW, bleed, "B"

1шт.

15

277353R1

RETAINER, high pressure valve spring

1шт.

16

277354R1

GASKET, high pressure valve spring retainer

1шт.

17

277355R1

SPRING, high pressure valve

1шт.

18

277356R1

SPRING, high pressure valve seat retainer

1шт.

19

277357R1

VALVE, high pressure

1шт.

20

277358R91

SEAT ASSEMBLY, high pressure valve

1шт.

21

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk, High pressure valve

1шт.

22

VALVE ASSEMBLY, low pressure (not serviced separately-order 277369R91)

1шт.

23

113443R91

LEVER ASSEMBLY, low pressure valve

1шт.

24

277360R1

SPRING, low pressure valve

1шт.

25

19271R91

SCREW W/LOCK WASHER ASSEMBLY, low pressure valve

2шт.

26

277361R1

SEAT, low pressure valve

1шт.

27

277362R1

PIN, pivot

1шт.

28

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

SEAL, low pressure valve

1шт.

29

113434R91

STRAINER ASSEMBLY, fuel inlet

1шт.

30

113186

3/4" pipe

1шт.

31

BODY ASSEMBLY, regulator (not serviced separately-order regulator assembly)

1шт.

32

114981

VALVE

drain

1шт.

33

644333D

GASKET, low pressure partition plate

1шт.

34

277365R1

PLATE, low pressure partition

1шт.

35

277366R1

PIN, diaphragm push

1шт.

36

277367R91

DIAPHRAGM W/PIN, 277366r1 assembly, low pressure

1шт.

37

277368R2

PLATE, support

1шт.

38

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

1/8" slt-hd pipe

1шт.

39

19270R91

SCREW, no. 10NF x 5/8" slt-fil-hd cd-pltd mach (support plate)

8шт.

382046R91

COMPENSATOR ASSEMBLY

1шт.

373173R1

SNAP RING,0.812", Int, #81

Ring, Snap, 0.812", Int, #81

1шт.

277369R91

1шт.

KIT, fuel regulator overhaul (composed of (1) diaphragm 277367R91, (1) diaphragm 277370R91, (1) gasket 64433D, (1) gasket 277198R1, (1) gasket 277354R1, (1) lever 277351R1, (1) seal 352221R1, (1) seal 359158R1, (1) seat 277358R91, (1) screw 37179D, (3) screw 277199R1, (23) screw 19270R91, (2) screw 19271R91, (1) spring 277196R91, (1) spring 277355R1, (1) spring 277356R1, (1) spring 277360R1, (1) strainer 113434R91, (1) valve 277357R1, (1) valve (NSS)

1шт.
