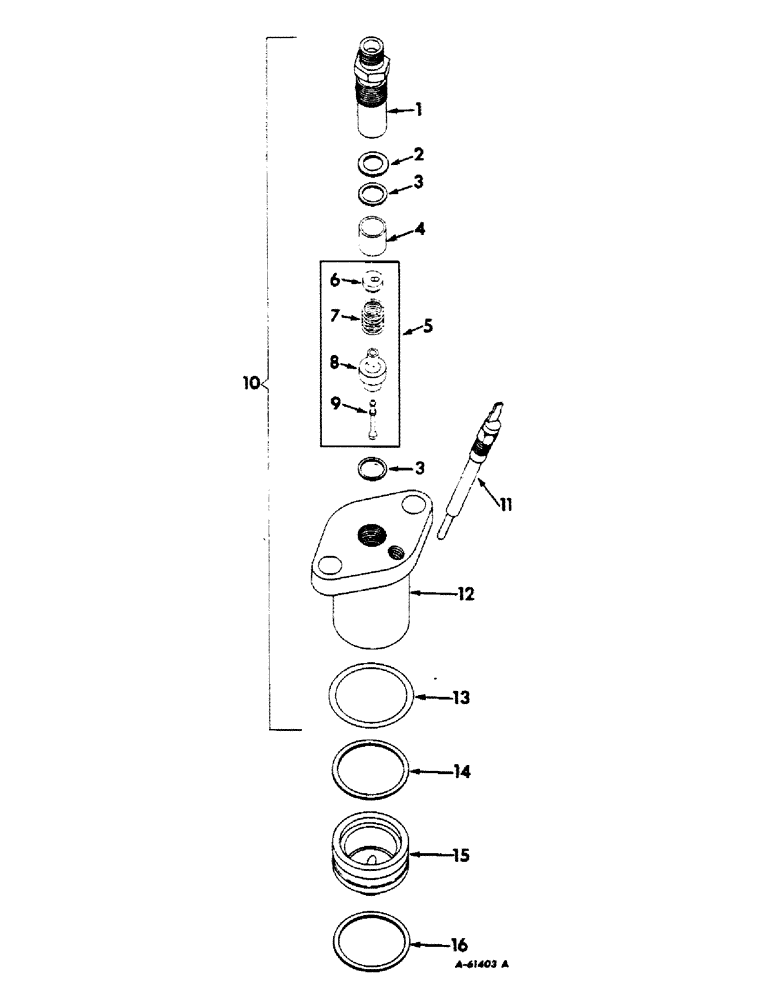

Запчасти Case IH 2606 (052) - FUEL SYSTEM, INJECTION NOZZLE, GLOW PLUG AND PRE-COMBUSTION CHAMBER, DIESEL ENGINE TRACTORS (02) - FUEL SYSTEM

1

278321R1

SOCKET

FITTING, nozzle

6шт.

2

279274R1

GASKET

nozzle

6шт.

3

279274R1

GASKET

nozzle valve

12шт.

4

310402R1

SPACER

SLEEVE, nozzle valve

6шт.

5

330303R91

VALVE

ASSEMBLY, nozzle

6шт.

6

310394R1

SEAT

nozzle spring (.101-.102)

1шт.

6

310395R1

SEAT

nozzle spring (.103-.104)

1шт.

6

310396R1

SEAT, nozzle spring (.105-.106)

1шт.

6

310397R1

SEAT

nozzle spring (.107-.108)

1шт.

6

310398R1

SEAT

nozzle spring (.109-.110)

1шт.

6

310399R1

SEAT

nozzle spring (.111-.112)

1шт.

6

310400R1

SEAT

nozzle spring (.113-.114)

1шт.

6

310401R1

SEAT

nozzle spring (.115-.116)

1шт.

7

310393R1

SPRING

nozzle valve

1шт.

8

SEAT, nozzle valve (not serviced separately-order valve, 330303R91)

1шт.

9

VALVE, nozzle (not serviced separately-order valve, 330303R91)

1шт.

10

332487R91

NOZZLE INJECTION

NOZZLE ASSY, injection (less ref. 11) D-23612799 to 13843, D-23614084 up

1шт.

10

341120R91

NOZZLE ASSY, injection (less ref 11), Serial Range: D-23613844-14083

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

12шт.

11

304131R2

GLOW PLUG

(optional with 343894R1)

6шт.

11

343894R1

GLOW PLUG

(OPTIONAL WITH 304131R2)

6шт.

12

310389R1

BODY

nozzle, D-23612799 to 13843, D-23614084 up

6шт.

12

341121R1

BODY, nozzle, Serial Range: D-23613844-14083

6шт.

13

251044R2

O-RING,4.32mm Thk x 43.26mm ID

SEAL, nozzle body dust

6шт.

14

260879R4

GASKET

nozzle body

6шт.

15

278274R3

CHAMBER

pre-combustion, Serial Range: D-23612799-13277

6шт.

15

341163R1

CHAMBER

pre-combustion, D-23613278 to 13843, D-23614084 up

6шт.

15

341119R1

CHAMBER, pre-combustion, D23613844 to 14083 (Replaces 341121R1)

6шт.

16

260879R4

GASKET

pre-combustion chamber

6шт.
