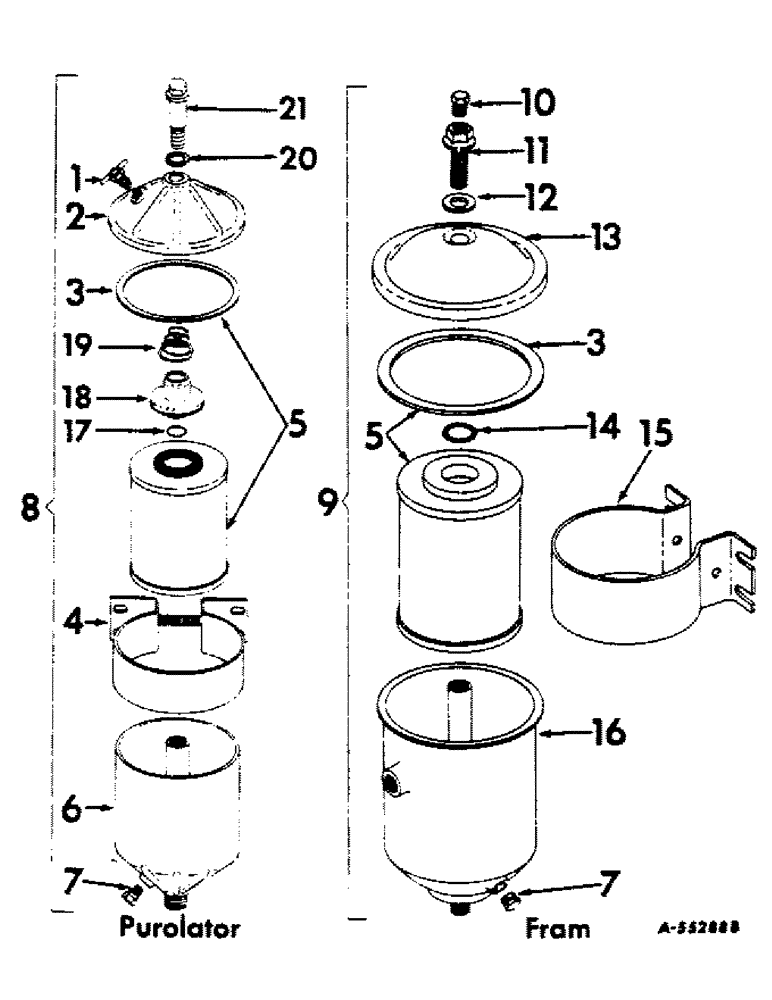

Запчасти Case IH 2606 (051) - FUEL SYSTEM, FUEL FILTER, DIESEL ENGINE TRACTORS (02) - FUEL SYSTEM

1

39677DA

VALVE

BLEEDER, filter

1шт.

2

304103R91

COVER

ASSEMBLY, filter

1шт.

3

304102R1

GASKET

element cover

1шт.

4

304104R91

HOLDER

BRACKET ASSEMBLY, filter

1шт.

5

304101R91

FILTER, ELEMENT

ELEMENT ASSEMBLY, final filter

1шт.

5

306353R91

ELEMENT

ASSEMBLY, primary filter (special use when plugging of filters is encountered)

1шт.

5

610309C91

ELEMENT

ASSEMBLY, primary fuel filter water separator (special)

1шт.

6

304100R91

BODY

CASE ASSEMBLY, filter

1шт.

7

258995R1

PLUG

filter drain

1шт.

8

347066R91

HOSE ASSY.

FILTER ASSEMBLY, primary fuel (Purolator)

1шт.

8

601507C91

FILTER

ASSEMBLY, primary fuel (Purolator)

1шт.

9

601508C91

FILTER

ASSEMBLY, primary fuel (Fram)

1шт.

10

306778R1

PLUG, filter vent

1шт.

11

368492R1

SCREW, filter vent cap

1шт.

12

368493R1

GASKET

filter vent cap screw

1шт.

13

306776R1

COVER, filter

1шт.

14

306777R1

O-RING

O-RING, filter body

1шт.

15

306780R1

STRAP, filter bracket

1шт.

105604

NUT

1/4" sq

1шт.

113969

SCREW,Slotted Rd Hd, 1/4"-20 x 3"

1/4 x 3" slt-rd-hd mach

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

16

306775R91

CASE ASSEMBLY, filter

1шт.

17

355966R1

O-RING,0.424" ID x 0.103" Width

7/16 x 5/8 x 3/32" (gasket retainer)

1шт.

18

321722R91

RETAINER

ASSEMBLY, gasket

1шт.

19

321721R1

VALVE SPRING

SPRING, retaining

1шт.

20

368334R1

GASKET

screw retaining

1шт.

21

321727R1

CAPSCREW,3/8" - 24 x 1 11/16"

SCREW, cover retaining

1шт.

134519

VALVE

1/8" type B drain cock (used with primary fuel filter water separator element)

1шт.
