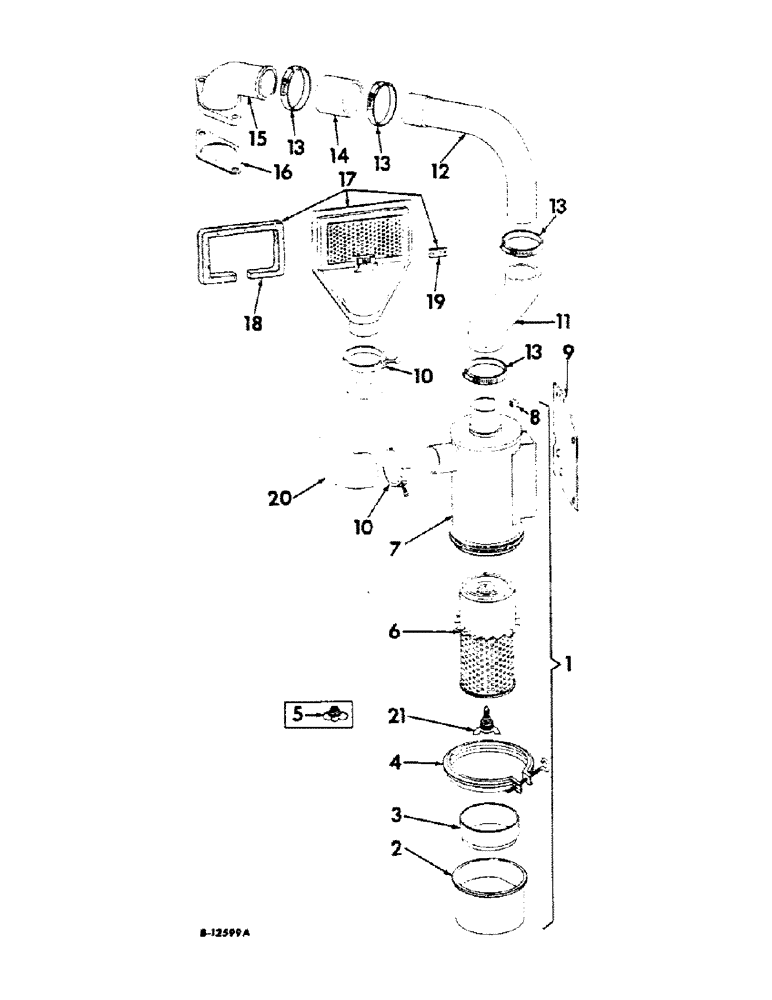

Запчасти Case IH 2606 (041) - FUEL SYSTEM, AIR CLEANER AND CONNECTIONS, DIESEL ENGINE TRACTORS (02) - FUEL SYSTEM

1

380348R93

CLEANER ASSEMBLY, air

1шт.

2

381340R91

CUP

ASSEMBLY

1шт.

3

381345R1

BAFFLE

SKIRT, baffle

1шт.

4

381339R91

CLAMP

ASSEMBLY

1шт.

5

381342R92

WING NUT

NUT W/GASKET ASSEMBLY (serial no., Serial Range: 501-5649)

1шт.

6

381344R92

ELEMENT

ASSEMBLY

1шт.

7

BODY, air cleaner (not serviced separately-order air cleaner assembly)

1шт.

8

893431R1

CAP, service indicator outlet

1шт.

9

379874R1

BRACKET, air cleaner and service indicator

1шт.

SCREW, 3/8 x 3/4" cap

2шт.

SCREW, 5/8 x 1-1/2" cap

2шт.

10

29978D

CLAMP

air cleaner inlet hose

2шт.

11

379876R1

HOSE, air cleaner outlet

1шт.

12

369494R1

PIPE, air cleaner outlet

1шт.

13

274088R91

HOSE CLAMP,2.25/3.13 Type F Worm

CLAMP, air cleaner hose

4шт.

14

369498R1

HOSE, elbow connecting

1шт.

15

369496R1

ELBOW, air cleaner outlet

1шт.

SCREW, 7/16 x 1" cap

2шт.

WASHER, 7/16" lock

2шт.

16

369497R2

GASKET

air cleaner outlet elbow

1шт.

17

379877R91

INTAKE ASSEMBLY, air

1шт.

18

369503R1

GASKET, air intake chamber

1шт.

19

381366R1

PLATE, air intake lock

1шт.

381367R1

RIVET, .088 x 23/64" oval-hd tubular

2шт.

20

379880R1

HOSE, air cleaner inlet

1шт.

21

389264R91

BOLT (SPREADER),Wing, 3/8" - 16, W/ Wshr, Gasket

BOLT ASSEMBLY, element (serial no. 5650 and above)

1шт.
