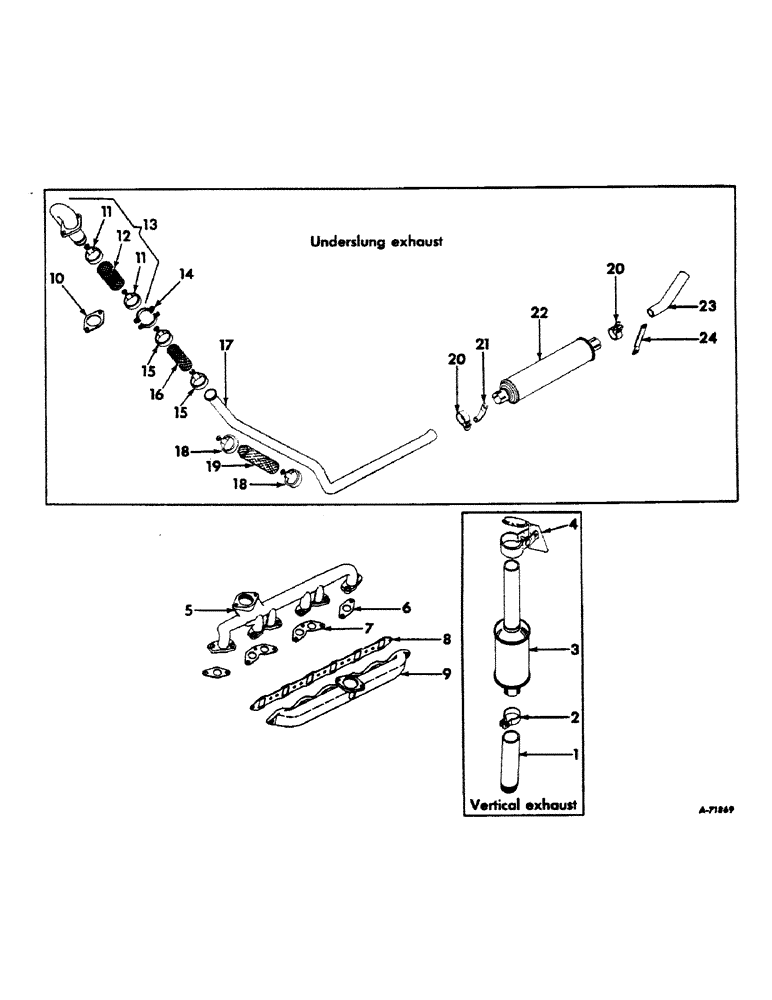

Запчасти Case IH 2606 (032) - DIESEL ENGINE, INTAKE MANIFOLD AND EXHAUST SYSTEM (01) - ENGINE

1

361384R1

PIPE

exhaust

1шт.

2

350602R1

CLAMP

exhaust muffler

1шт.

.

NUT, 3/8"

1шт.

.

SCREW, 3/8 x 1-3/8"

1шт.

.

WASHER, 3/8" lock

1шт.

3

370644R92

MUFFLER

exhaust

1шт.

4

321574R91

PLUG

CAP ASSEMBLY, exhaust

1шт.

5

278643R2

PIPE

MANIFOLD, exhaust

1шт.

.

39524DA

NUT

exhaust manifold stud

10шт.

.

113934H

WASHER

exhaust manifold stud

10шт.

6

278313R2

GASKET

exhaust manifold-end

2шт.

7

278314R1

MANIFOLD GASKET

exhaust manifold-center

2шт.

8

305804R1

MANIFOLD GASKET

intake manifold

1шт.

9

332110R11

MANIFOLD

ASSEMBLY, intake

1шт.

.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8 x 1-1/8" cap

12шт.

.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

10

369282R2

GASKET

exhaust pipe elbow

1шт.

11

29980D

CLAMP, gasketing tape

2шт.

12

370639R1

TAPE

exhaust pipe elbow gasketing (5-1/2" wide x 12" long)

1шт.

13

369281R11

ELBOW ASSEMBLY, exhaust SCREW, 3/8 x 1" cap WASHER, 3/8" lock

2шт.

14

369283R1

CLAMP

exhaust pipe NUT, 5/16" SCREW, 5/16 x 1-3/4" cap

2шт.

15

29979D

CLAMP

sleeve

2шт.

16

382291R2

SLEEVE

exhaust pipe asbestos (6" long)

1шт.

17

369285R12

PIPE W/FOUR CLAMPS, 29979D, sleeve, 383291R2 and sleeve, 378925R2 assembly, exhaust

1шт.

18

29-979D

CLAMP, sleeve

2шт.

19

375561R2

SLEEVE

exhaust pipe asbestos (11" long)

1шт.

20

48-889DA

CLAMP, exhaust muffler

2шт.

.

93082H

NUT

exhaust muffler clamp

2шт.

.

SCREW, 3/8NF x 1-1/2" cap

2шт.

21

369286R1

SUPPORT

muffler front

1шт.

22

371039R91

MUFFLER

exhaust

1шт.

22

371039R91GV

MUFFLER

Value, Muffler

1шт.

23

369288R1

PIPE

tail

1шт.

24

369287R1

SUPPORT

muffler rear

1шт.

.

369324R1

SPACER, muffler rear support

1шт.
