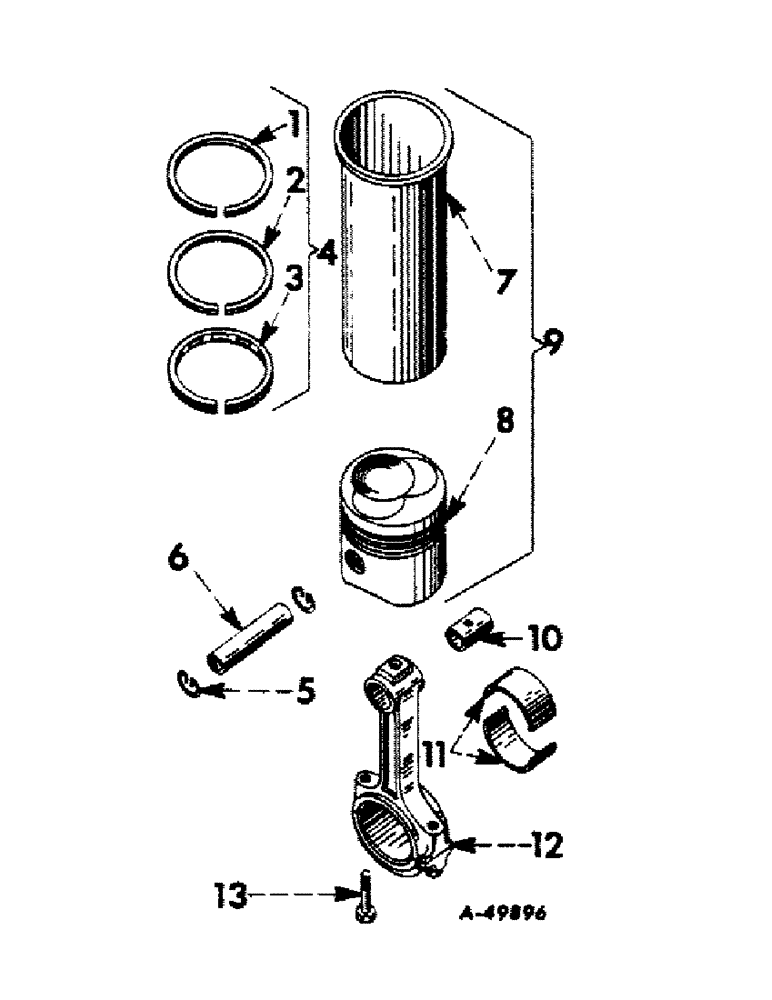

Запчасти Case IH 2606 (029) - DIESEL ENGINE, CONNECTING RODS AND SLEEVE SET (01) - ENGINE

1

610741C1

RING, compression piston (top or first groove)

6шт.

2

610742C1

RING, compression piston (second groove)

6шт.

3

278329R1

RING, oil piston (third or bottom groove)

6шт.

4

680035C91

RING, SET

1шт.

5

338835R1

SNAP RING,1.125", Int, #112

Ring, Snap, , piston pin 1.125", Int, #112

12шт.

6

332436R1

PIN,28.57mm OD x 17.48mm L

piston (standard)

6шт.

6

332437R1

PIN, piston (.005" oversize)

6шт.

7

320017R91

PACKAGE

CYLINDER SLEEVE PACKAGE (consists of sleeve, 278272R1, shim, 320000R1 and two shims, 320018R1)

6шт.

7

278272R1

SLEEVE CYLINDER

SLEEVE, cylinder (standard)

6шт.

7

323802R1

SLEEVE CYLINDER

SLEEVE, cylinder (.002" oversize)

6шт.

7

601289C1

SLEEVE CYLINDER

SLEEVE, cylinder (.010" oversize)

6шт.

320000R1

SHIM

cylinder sleeve (.005") (as reqd.)

1шт.

320018R1

SHIM

cylinder sleeve (.003") (as reqd.)

1шт.

8

306275R4

PISTON

6шт.

9

332679R91

PISTON ASSY.

SLEEVE SET, crankcase (consists of six sleeves, 332669R91)

1шт.

9

332669R91

PISTON

SLEEVE ASSEMBLY, cylinder (composed of (1) pin 332436R1, (1) piston 306275R4, (2) ring 338835R1, (1) ring 610741C1, (1) ring 610742C1, (1) ring 278329R1, (1) sleeve pkg 320017R91)

6шт.

9

601291C91

SLEEVE ASSY

cylinder (oversize) (composed of (1) pin 332436R1, (1) piston 306275R4, (1) ring 610741C1, (1) ring 610742C1, (1) ring 278329R1, (2) ring 338835R1, (1) shim 320000R1, (2) shim 320018R1, (1) sleeve 323802R1)

1шт.

10

306708R1

BUSHING,28.28mm ID x 31.89mm OD x 33.33mm L

piston pin

6шт.

11

367408R11

BEARING ASSY,60.84mm ID x 64.01mm OD x 25.48mm W

BEARING ASSEMBLY, connecting rod (2 halves) (standard)

6шт.

11

367632R11

BEARING ASSY

BEARING ASSEMBLY, connecting rod (2 halves) (.002" undersize)

6шт.

11

376666R11

BEARING ASSY

ASSEMBLY, connecting rod (2 halves) (.010" undersize)

6шт.

11

376668R11

CONN. ROD SHELL

BEARING ASSEMBLY, connecting rod (2 halves) (.020" undersize)

6шт.

11

367631R11

BEARING ASSY

ASSEMBLY, connecting rod (2 halves) (.030" undersize)

6шт.

11

367630R91

BEARING SET, connecting rod (standard) (consists of six bearings, 367408R11)

1шт.

11

372443R91

KIT

BEARING SET, connecting rod (.030" undersize" (consists of six bearings, 367631R11)

1шт.

12

306280R12

ROD, CONNECTING

ROD W/TWO BOLTS, 316366R1 and bushing, 306708R1, assembly, connecting

6шт.

12

735237C91

REMAN-CONNECTING ROD

Reman for New PN 306280R12

6шт.

12

1928147C1

CORE-ROD CONNECTING

Return Number

6шт.

13

316366R1

BOLT,3/8" - 24 x 2"

connecting rod

12шт.
