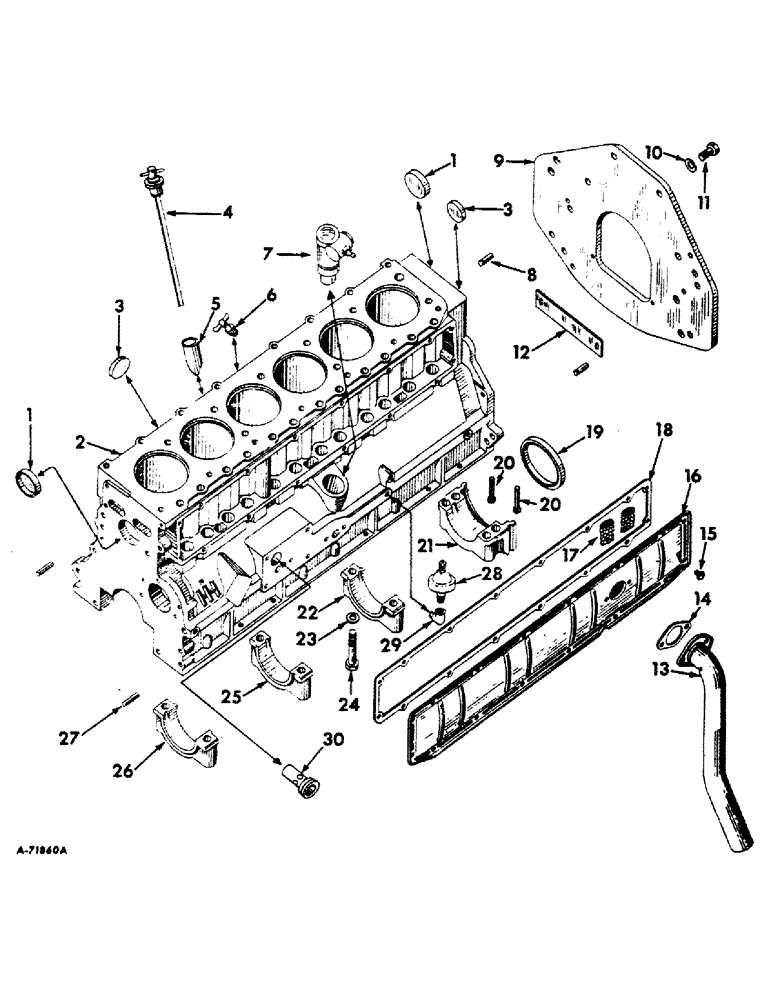

Запчасти Case IH 2606 (026) - DIESEL ENGINE, CRANKCASE AND RELATED PARTS (01) - ENGINE

1

20840R1

PLUG,Cup, 2", Stainless

core hole

2шт.

2

601776C91

CRANKCASE ASSEMBLY (also order Filter Assembly, 601786C91, Gasket 601790C1, and Regulating Valve, 341195R92 for engines up to serial no. 16026), composed of (10) bolt 328512R1, (9) bolt 320097R1, (2) dowel 141285, (2) dowel 371699R2, (2) pin 19328R1, (6)

1шт.

2

601776C91

CRANKCASE ASSEMBLY (also order filter assembly, 601786C91, Gasket 601790C1, and regulating valve, 341195R92 for engines up to serial no. 16026) (composed of (10) bolt 328512R1, (9) bolt 320097R1, (2) dowel 141285, (2) dowel 371699R2, (2) pin 19328R1, (6)

1шт.

2

601776C91

CRANKCASE ASSEMBLY (also order filter assembly, 601786C91, gasket 601790C1, and regulating valve, 341195R92 for engines up to serial no. 16026) (composed of (1) tube 368985R2, (10) washer 345409R1

1шт.

50410DA

PLUG

1/8" sq-soc-hd pipe

1шт.

103865

PLUG, 1/8" sq-hd pipe

3шт.

3066422R1

PLUG

3/8" short sq-soc-hd pipe

2шт.

19328R1

LOCK PIN,3/8" x 3/4", Slotted

PIN, 3/8 x 2-3/4" spring

2шт.

3

70128R1

PLUG,Cup, 1 5/8"

core hole

6шт.

4

368986R91

GAUGE ASSY.

GAGE ASSEMBLY, oil level

1шт.

5

368985R2

TUBE

oil filter

1шт.

6

103647

VALVE

COCK, 1/4 " type C drain

1шт.

7

312157R91

SUPPORT ASSEMBLY, oil pump shaft and tachometer drive (for components see "Oil Pump Shaft Support")

1шт.

8

371699R2

STUD

DOWEL, engine rear support

2шт.

9

367223R1

SUPPORT, engine rear

1шт.

SCREW, 5/8 x 1-1/2" cap

1шт.

10

345409R1

WASHER,13.84mm ID x 25.4mm OD x 2.34mm Thk

17/32 x 1" x .092

4шт.

11

9409086

BOLT, 1/2 x 1-1/4" type AA hex. lock

4шт.

12

367225R1

BAR

SEAL, engine rear support dust

1шт.

179814

SPACER

2шт.

95-11034

WASHER,1/4"

11/32 x 11/16" x no. 16 ga

2шт.

13

381197R11

PIPE ASSEMBLY, breather

1шт.

374587R91

SCREW, breather pipe

2шт.

14

369981R1

GASKET

breather pipe

1шт.

15

375612R91

CAPSCREW,1/4" - 20 x 1/2"

SCREW, push rod cover (16)

1шт.

16

315970R91

PLATE ASSY.

COVER, w/two elements, 315849R1

1шт.

ASSEMBLY, push rod

1шт.

17

315849R1

FILTER CARTRIDGE

ELEMENT, breather

2шт.

18

369982R1

GASKET

push rod cover

1шт.

19

393180R91

SEAL

OIL SEAL, crankshaft rear

1шт.

20

310665R1

PLUG

rear bearing cap filler

2шт.

21

CAP, crankshaft rear bearing (not serviced separately-order crankcase assembly)

1шт.

22

CAP, crankshaft rear intermediate bearing (not serviced separately-order crankcase assembly)

1шт.

23

345409R1

WASHER,13.84mm ID x 25.4mm OD x 2.34mm Thk

crankshaft bearing cap belt

10шт.

24

328512R1

BOLT (SPREADER),1/2" - 13 x 3 1/4"

BOLT, crankshaft bearing cap

10шт.

25

CAP, crankshaft front intermediate bearing (not serviced separately-order crankcase assembly)

1шт.

26

CAP, crankshaft front bearing (not serviced separately-order crankcase assembly)

1шт.

27

NLS

NO LONGER SERVICED

DOWEL, crankcase front plate and cover

2шт.

28

392249R92

SWITCH

oil pressure

1шт.

29

444162

ELBOW

1/8" street (oil pressure switch)

1шт.

30

341195R92

VALVE

ASSEMBLY, oil pressure regulating D-236 engine with serial no. 16027 and above

1шт.
