Запчасти Case IH 2606 (024) - DIESEL ENGINE, CYLINDER HEAD AND RELATED PARTS (01) - ENGINE

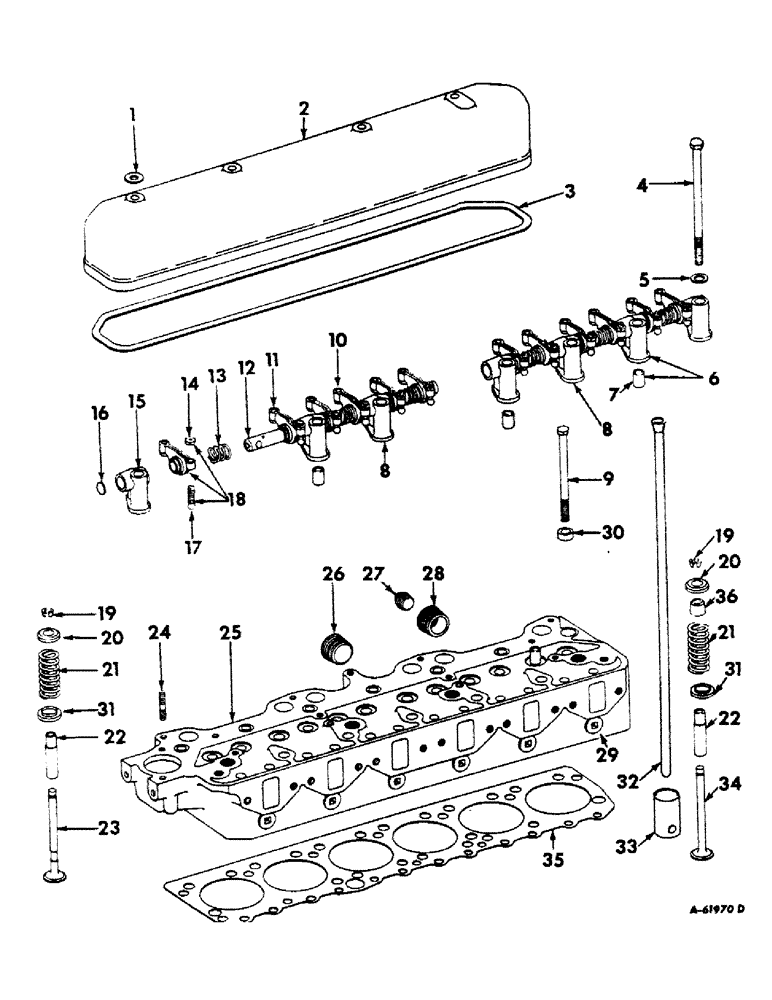

Схема запчастей Case IH 2606 - (024) - DIESEL ENGINE, CYLINDER HEAD AND RELATED PARTS (01) - ENGINE
3
29
11
31
2
24
32
27
15
20
19
14
21
21
20
33
30
34
35
7
1
26
19
23
18
22
28
10
4
12
5
31
36
25
17
16
13
8
6
8
22
9

Артикул

Название

Примечание

Количество

1

116103

COPPER WASHER,10.31mm ID x 20.63mm OD x 1.65mm Thk

WASHER, valve cover bolt

4шт.

2

278307R1

COVER

valve

1шт.

17790R1

BOLT, 3/8 x 4-3/4" hex-hd.

4шт.

3

278308R1

GASKET

valve cover

1шт.

4

320097R1

BOLT (SPREADER),1/2" - 13 x 8"

BOLT, cylinder head

9шт.

315701R1

GUIDE

SPACER, cylinder head bolt

2шт.

5

345409R1

WASHER,13.84mm ID x 25.4mm OD x 2.34mm Thk

cylinder head bolt

7шт.

6

76860R11

BRACKET ASSEMBLY, valve lever shaft (nos. 2, 4 and 6)

3шт.

7

69500R1

SLEEVE

DOWEL, valve lever shaft

3шт.

8

76858R1

BRACKET

valve lever shaft (Nos. 3 and 5)

2шт.

9

278305R1

BOLT,Hex, 1/2" - 13 x 6.03"

cylinder head-short

5шт.

10

278304R21

ARM

LEVER ASSEMBLY, exhaust valve RH

3шт.

11

323727R91

ROCKER

LEVER ASSEMBLY, intake valve

6шт.

12

318020R11

SHAFT

W/PLUG, 169071R1 assembly valve lever

2шт.

13

35619H

SPRING

valve lever

6шт.

14

133093R1

NUT,Hex, 3/8" - 24

valve lever adjusting screw

12шт.

15

76859R1

BRACKET

valve lever shaft (Nos. 1 and 7)

2шт.

16

169071R1

PLUG

valve lever shaft

2шт.

17

16067DA

ADJUSTMENT SCREW,3/8" - 24

valve lever adjusting

12шт.

18

278303R21

ARM

LEVER ASSEMBLY, exhaust valve LH

3шт.

19

41339D

KEY

valve spring retainer

24шт.

20

151167R3

SEAT

RETAINER, valve spring

12шт.

21

315744R1

SPRING

intake and exhaust valve

12шт.

22

278300R1

PILOT VALVE

GUIDE, valve

12шт.

23

349381R1

STD EXHAUST VALVE

VALVE, exhaust

6шт.

24

303473R1

NUT

STUD, exhaust manifold

10шт.

25

323770R41

CYLINDER HEAD

HEAD ASSEMBLY, cylinder (composed of (1) bushing 142765, (12) guide 278300R1, (1) head 323770R4 (NSS), (1) plug 103880, (5) plug 601244C1, (11) plug 9409949, (6) sleeve 278369R1 (NSS), (10) stud 303473R1)

1шт.

26

601244C1

PLUG

1/4" ctsk hdls pipe

5шт.

27

103880

PIN

1/2" sq-hd. pipe

1шт.

28

142765

PLUG

BUSHING, 1-1/4 x 1/2" reducing pipe

1шт.

29

9409949

DRAIN PLUG

3/4" sq socket pipe

11шт.

30

278306R1

WASHER

cylinder head bolt

5шт.

31

317935R91

SEAT

ROTOCOIL, intake and exhaust valve

12шт.

32

164436R91

PUSH ROD

ROD, valve push

12шт.

33

75524R3

TAPPET

valve

12шт.

34

323774R1

VALVE

intake

6шт.

35

601509C1

GASKET

cylinder head

1шт.

36

279299R1

DEFLECTOR

intake valve stem oil

6шт.

Выбрано товаров: 38
