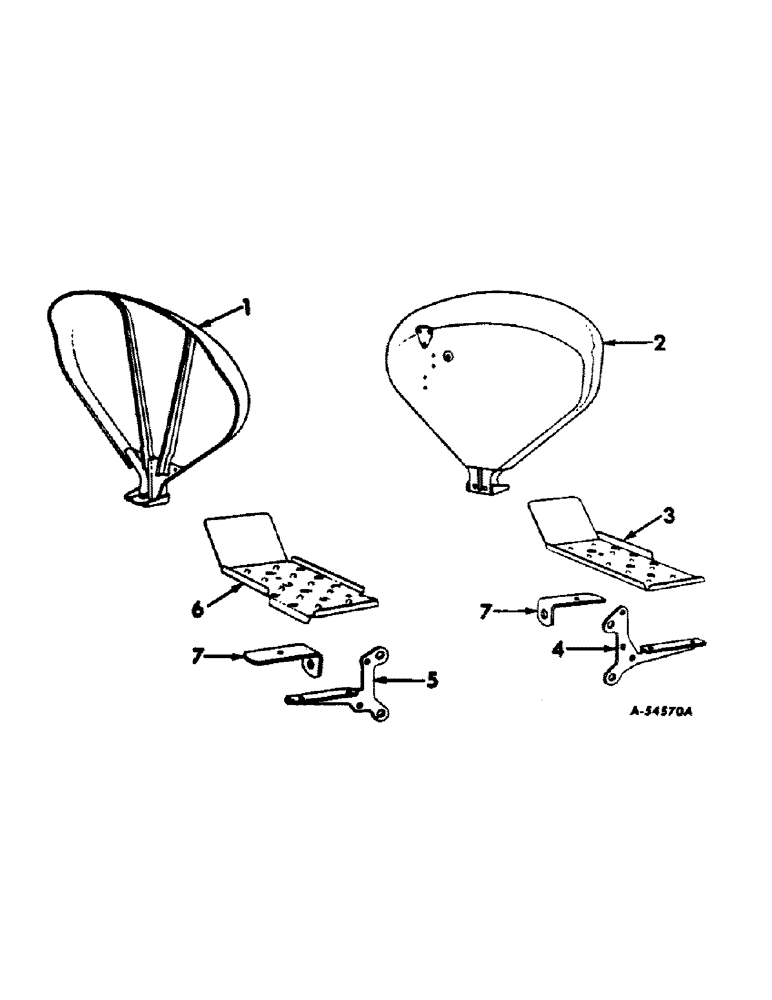

Запчасти Case IH 2606 (168) - SHEET METAL, GRILLES, AND FENDERS, FENDERS AND PLATFORMS Sheet Metal, Grilles & Fenders

1

381375R91

FENDER ASSEMBLY, RH

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

1шт.

2

381374R91

FENDER ASSEMBLY, LH

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

4шт.

3

368308R3

PLATFORM, LH

1шт.

3

375479R2

PLATFORM, LH (tractors with safety starting switch)

1шт.

109084

NUT,1/4"-20, G5

BOLT, 1/4 x 3/4" crg

1шт.

NUT, 1/4"

1шт.

445998

SCREW

1/4 x 2" cr-rec-tr-hd cd-pltd mach

2шт.

115547

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, Int Tooth, 1/4"

2шт.

377934R1

SPACER, platform

1шт.

4

369980R1

BRACKET, LH platform front

1шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

SCREW, 5/8 x 2-1/4" cap

2шт.

114609

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

2шт.

5

370000R1

BRACKET, RH platform front

1шт.

5

370970R1

BRACKET, RH platform front (tractors with foot pedal accelerator)

1шт.

271563

SUPPORT,Hex, 5/8" - 11 x 2 1/4", Gr 5

SCREW, 5/8 x 2-1/4" cap

2шт.

114609

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

2шт.

6

361731R5

PLATFORM, RH

1шт.

6

367931R41

PLATFORM ASSEMBLY, RH (tractors with heel operated foot pedal accelerator)

1шт.

6

385594R11

PLATFORM ASSEMBLY, RH (tractors with toe operated foot pedal accelerator)

1шт.

15069R1

BOLT, 1/4 x 2" crg

2шт.

14993R1

BOLT, 1/4 x 3/4" crg

1шт.

109084

NUT,1/4"-20, G5

3шт.

377934R1

SPACER, platform

1шт.

7

378080R1

BRACKET, platform rear

2шт.

13-1222

BOLT,Hex, 3/4" - 10 x 1-3/8", Gr 5

SCREW, 3/4 x 1-3/8" cap (for LH bracket)

1шт.

604433R1

SPACER,1/2" Pipe x 13/16"

fender (tractors with three point hitch stabilizer)

8шт.

SCREW, 1/2 x 1-3/4" cap

8шт.

51502D

BUSHING

SPACER, fender (tractors with fixed drawbar)

8шт.

179889

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW, 1/2 x 2" cap

8шт.
