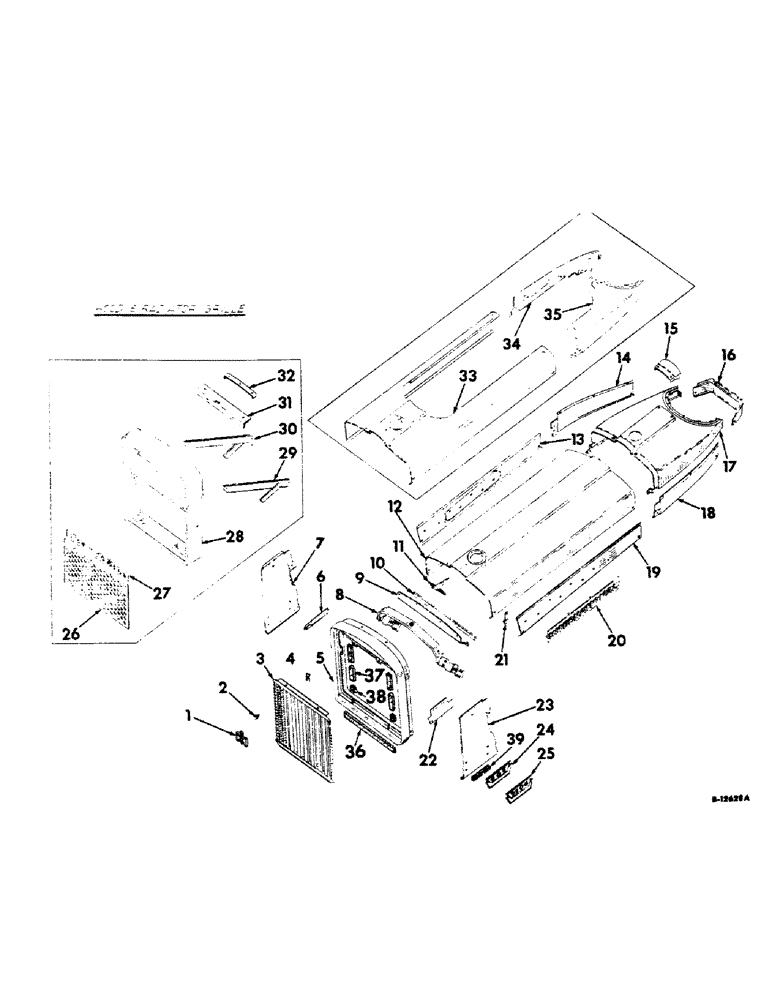

Запчасти Case IH 2606 (166) - SHEET METAL, GRILLES, AND FENDERS, HOOD AND RADIATOR GRILLE Sheet Metal, Grilles & Fenders

1

2751844R1

PRODUCT GRAPHIC

EMBLEM, I.H. hood (optional with 2751846R1)

1шт.

155097

SCREW, no. 10 x 5/16" rd-hd cr-rec mach

2шт.

147794

SCREW, no. 10 x 1/2" rd-hd cr-rec mach (tractors with heavy duty grille)

2шт.

131015

WASHER

3/16 x 7/16" x .049 cd-pltd

2шт.

1

2751846R1

EMBLEM CASE/IH

EMBLEM, IH hood (plastic) (optional with 2751844R1)

1шт.

385129R1

SCREW,Sl Rnd Hd, #10 - 16 x 3/8"

10-16 x 3/8" thd cutting

2шт.

.

385130R1

SCREW, 10-16 x 9/16" thd cutting (industrial tractors)

2шт.

.

395-31022

WASHER,#10

3/16 x 7/16" x .049 C-Z

2шт.

2

376786R1

SCREW,Sl Hex Wshr Hd, 5/16" - 18 x 0.75"

radiator grille

2шт.

3

377529R11

GRILLE ASSEMBLY, radiator

1шт.

3

377533R11

GRILLE ASSEMBLY, radiator (tractors with electric lighting)

1шт.

4

376787R1

WASHER

RETAINER, radiator grille screw

2шт.

5

376788R11

FRAME

HOUSING ASSEMBLY, radiator grille

1шт.

.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16" floating cage

2шт.

6

377532R91

BRACKET ASSEMBLY, RH grille side panel 3/8 x 1/2" cap screw

2шт.

7

376793R11

PANEL ASSEMBLY, grille side RH

1шт.

.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16" floating cage

1шт.

.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, 5/16 x 5/8" hex-washer-hd cap

3шт.

8

376790R91

SUPPORT ASSEMBLY, hood grille housing

1шт.

.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16" floating cage

4шт.

.

110683

NUT, no. 10

4шт.

9

377144R1

BAFFLE, radiator top (carbureted engine tractors)

1шт.

10

370181R1

GASKET

radiator top baffle (carbureted engine tractors)

1шт.

11

369180R1

PRODUCT GRAPHIC

ORNAMENT, hood

1шт.

11

369180R1GV

DECAL

Value, Ornament, Hood

1шт.

.

423324

SCREW,Hex L/Wshr Hd, #10-24 x 7/16"

no. 10 x 7/16" hex-hd mach w/external tooth lock washer

2шт.

12

378818R11

HOOD ASSEMBLY (tractors with underslung exhaust)

1шт.

12

380628R11

HOOD ASSEMBLY (tractors with vertical exhaust)

1шт.

.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, 5/16 x 5/8" hex. washer-hd cap

8шт.

13

378821R11

PANEL ASSEMBLY, front hood side RH

1шт.

.

376787R1

WASHER

RETAINER, cap screw

2шт.

.

381052R1

BOLT,Sl Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, 5/16 x 5/8" slt-hex-washer hd cap

1шт.

.

376786R1

SCREW,Sl Hex Wshr Hd, 5/16" - 18 x 0.75"

5/16 x 3/4" slt-hex-washer hd cap

1шт.

14

376798R11

PANEL ASSEMBLY, instrument side RH

1шт.

.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, 5/16 x 5/8" hex-washer-hd cap

1шт.

15

369268R11

CHANNEL ASSEMBLY, instrument panel housing

1шт.

16

376799R11

PANEL ASSEMBLY, instrument lower rear

1шт.

.

369916R2

SCREW,Hex Wshr Hd, #10 - 24 x 7/16"

no. 10 x 7/16" hex-washer-hd cap

8шт.

17

376796R11

HOUSING ASSEMBLY, instrument panel (gasoline disel engine tractors)

1шт.

.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16" floating cage

2шт.

.

369916R2

SCREW,Hex Wshr Hd, #10 - 24 x 7/16"

no. 10 x 7/16" hex-washer-hd cap

8шт.

.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, 5/16 x 5/8" hex-washer-hd cap

6шт.

18

376797R11

PANEL ASSEMBLY, instrument side LH

1шт.

.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, 5/16 x 5/8" hex-washer-hd cap

1шт.

19

378820R1

PANEL, front hood side LH

1шт.

.

376787R1

WASHER

RETAINER, cap screw

3шт.

.

381052R1

BOLT,Sl Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, 5/16 x 5/8" slt-hex-washer hd

1шт.

.

376786R1

SCREW,Sl Hex Wshr Hd, 5/16" - 18 x 0.75"

5/16 x 3/4" slt-hex-washer hd cap

2шт.

20

377797R1

DECAL

PLATE, "International" name

2шт.

.

370786R1

FASTENER

tubular clip

14шт.

21

369173R1

SPRING

hood panel

7шт.

.

NUT, no. 10

7шт.

22

384208R91

BRACKET ASSEMBLY, LH grille side panel (diesel engine tractors)

1шт.

22

377131R11

BRACKET ASSEMBLY, LH grille side panel (carbureted engine tractors)

1шт.

.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

2шт.

23

376792R11

PANEL ASSEMBLY, grille side LH (carbureted engine tractors)

1шт.

23

382452R11

PANEL ASSEMBLY, grille side LH (diesel engine tractors)

1шт.

.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16" floating cage

1шт.

.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, 5/16 x 5/8" hex-washer-hd cap

3шт.

24

380358R1

PLATE, 606 model symbol

2шт.

24

380357R1

PLATE, 606 L.P. gas model symbol

2шт.

24

380359R1

PLATE, 606 diesel model symbol

2шт.

.

370786R1

FASTENER

tubular clip

4шт.

25

380611R1

PLATE, 2606 model symbol

2шт.

25

380659R1

PLATE, 2606 L.P. gas model symbol

2шт.

25

380658R1

PLATE, 2606 diesel model symbol

2шт.

.

370786R1

FASTENER

tubular clip

4шт.

26

375243R1

GRILLE, radiator guard

1шт.

.

386451R1

SCREW,Hex Wshr Hd, 5/16" - 18 x 1"

5/16 x 1" hex washer hd cap

4шт.

27

378518R1

PLATE, industrial name

1шт.

.

166658

SCREW, no. 10 x 3/4" rd-hd cr-rec cd-pltd tapping

3шт.

28

375242R1

GUARD, radiator

1шт.

.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

.

179891

SHAFT

SCREW, 1/2 x 2-1/2" cap

2шт.

.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/16" x .095 ga

4шт.

29

380612R91

BRACE ASSEMBLY, radiator guard LH

1шт.

.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1шт.

30

380613R91

BRACE ASSEMBLY, radiator guard RH

1шт.

.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1шт.

31

375246R1

BRACKET, headlight mounting

1шт.

.

179844

BOLT,Hex, 3/8" - 16 x 1 5/8", Gr 5

SCREW, 3/8 x 1-5/8" cap

2шт.

32

375244R11

SUPPORT ASSEMBLY, hood top front

1шт.

.

179810

SCREW,Hex, 5/16" - 18 x 3/8", Gr 5, Full Thd

BOLT, Hex, 5/16"-18 x 3/8", G5, Full Thd

1шт.

33

378819R11

HOOD ASSEMBLY (L.P. gas engine tractors)

1шт.

.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, 5/16 x 5/8" hex-washer-hd cap

8шт.

34

378826R11

HOUSING ASSEMBLY, instrument panel RH (L.P. Gas engine tractors)

1шт.

.

369916R2

SCREW,Hex Wshr Hd, #10 - 24 x 7/16"

no. 10 x 7/16" hex-washer-hd cap

4шт.

.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, 5/16 x 5/8" hex-washer-hd cap

3шт.

35

372397R11

HOUSING ASSEMBLY, instrument panel LH (L.P. gas engine tractors)

1шт.

.

369916R2

SCREW,Hex Wshr Hd, #10 - 24 x 7/16"

no. 10 x 7/16" hex-washer-hd cap

4шт.

.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, 5/16 x 5/8" hex-washer-hd cap

3шт.

36

385631R1

SEAL

GASKET, radiator baffle bottom

1шт.

37

384210R1

GASKET, radiator baffle upper (diesel engine tractors)

2шт.

38

384209R1

GASKET, radiator baffle lower (diesel engine tractors)

2шт.

39

391537R1

GASKET, grille side panel

2шт.
