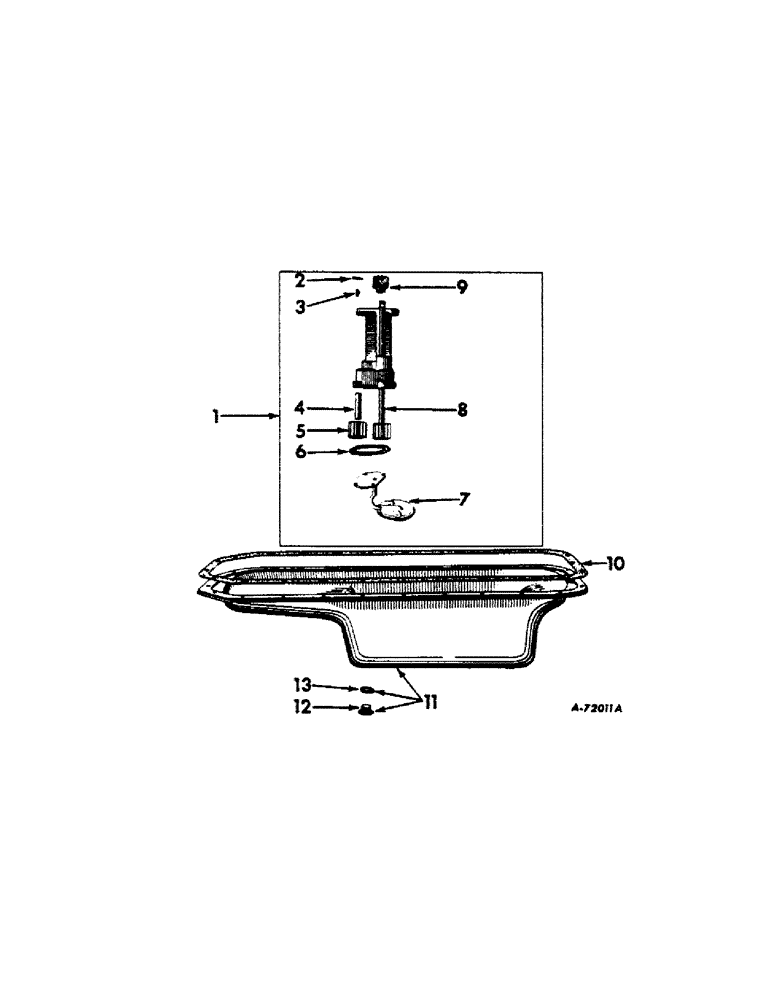

Запчасти Case IH 2606 (074) - LUBRICATION SYSTEM, CRANKCASE OIL PAN AND OIL PUMP, CARBURETED ENGINE TRACTORS Lubrication System

1

379138R91

PUMP, ENGINE OIL

PUMP ASSEMBLY, oil

1шт.

SCREW, 5/16 x 1" hex-hd cap

2шт.

WASHER, 5/16" lock

2шт.

2

112011

PIN,1/8" x 7/8"

1/8 x 7/8" sq end straight

1шт.

3

103905

KEY

no. 5 Woodruff

1шт.

4

35647H

SHAFT

idler gear

1шт.

5

227713R1

GEAR WHEEL

GEAR, pump body driven

1шт.

6

69607R1

GASKET

oil pump cover

1шт.

7

379139R91

COVER

AND SCREEN ASSEMBLY, oil pump

1шт.

SCREW, 5/16 x 7/8" cap

4шт.

WASHER, 5/16" lock

4шт.

8

230409R91

GEAR

SHAFT AND GEAR ASSEMBLY, oil pump drive

1шт.

9

69608R1

GEAR

oil pump drive

1шт.

10

369984R1

GASKET

crankcase pan

1шт.

11

367575R92

PAN ASSY.

PAN ASSY, crankcase oil

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

25шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

20шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .065 ga

5шт.

12

41300HA

PLUG

crankcase oil pan drain (optional with 359875R1)

1шт.

12

359875R1

PLUG

crankcase oil pan drain (optional with 41300HA)

1шт.

13

3405H

GASKET

oil pan drain plug

1шт.
