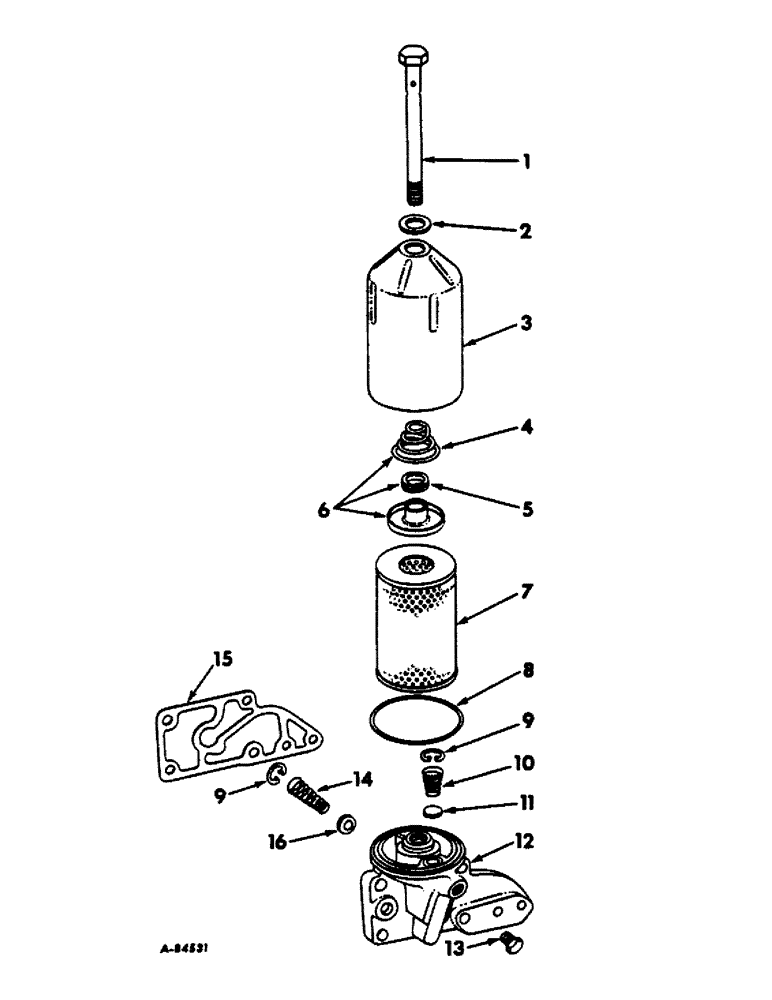

Запчасти Case IH 2606 (072) - LUBRICATION SYSTEM, OIL FILTER, DIESEL ENGINES WITH SERIAL NO. 16027 AND ABOVE Lubrication System

601786C91

OIL RESERVOIR

FILTER ASSEMBLY, oil (less Ref. 15)

1шт.

1

384530R11

TUBE ASSEMBLY, oil filter center 7.4" Length

1шт.

2

384532R1

GASKET

center tube

1шт.

3

384529R1

CASE

oil filter

1шт.

4

384536R1

SPRING, element hold-down

1шт.

5

384535R1

WASHER

GROMMET, element retaining washer

1шт.

6

384533R91

RETAINER

ASSEMBLY, element

1шт.

7

279994R91

ELEMENT

oil filter

1шт.

8

304854R1

RING

GASKET, oil filter case

1шт.

9

303322R1

SNAP RING,1.00", Int, #100

2шт.

10

384525R1

SPRING

check valve

1шт.

11

384528R1

NO LONGER SERVICED

VALVE, oil filter base

1шт.

12

601789C11

BASE

W/PLUG, 103867, oil filter

1шт.

138225

BEARING

SCREW, 5/16 x 1-3/4" soc-hd cap

2шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW 7/16 x 1-1/4" hex-hd cap

3шт.

179866

BOLT,Hex, 7/16" - 14 x 2", Gr 5

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

13

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

1/4-18 auto hex-hd drain

1шт.

14

384527R1

SPRING

element by-pass

1шт.

15

601790C1

GASKET

oil filter base

1шт.

16

VALVE ASSEMBLY, element by-pass (order valve, 384528R1)

1шт.
