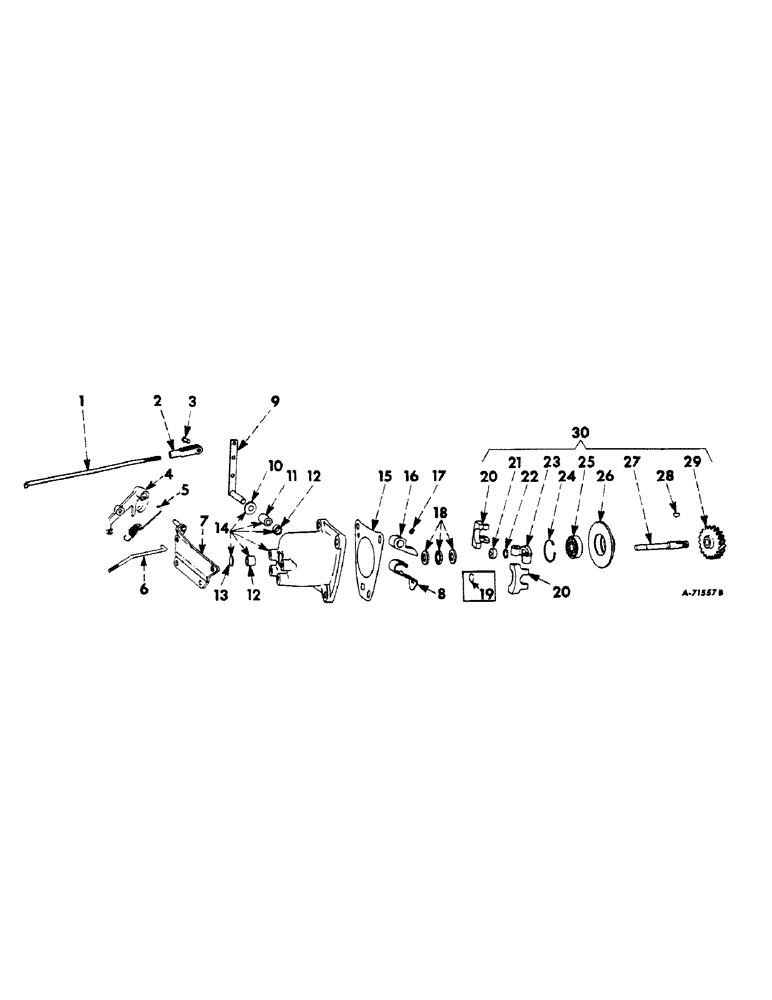

Запчасти Case IH 2606 (067) - GOVERNOR, GOVERNOR, CARBURETED ENGINE TRACTORS Governor

378127R93

GOVERNOR

ASSEMBLY (composed of parts listed in this unit except as noted)

1шт.

1

368335R1

ROD

, Serial Range: governor-carburetor

1шт.

PIN, 1/16 x 7/16" cotter

1шт.

2

104036

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS, 1/4NF adjustable rod end

1шт.

NUT, 1/4NF

1шт.

3

103494

ADJUSTABLE CLEVIS,1/4" x .770"

PIN, 1/4" rod end

1шт.

PIN, 1/16 x 7/16" cotter

1шт.

4

378133R1

LEVER

governor speed control

1шт.

PIN, 1/16 x 7/16" cotter

1шт.

WASHER, 11/32 x 11/16" x 16 ga

1шт.

5

378134R2

SPRING

governor (order spring 384588R1)

1шт.

5

384588R1

SPRING

governor

1шт.

6

NOT USED

1шт.

7

378131R11

SUPPORT

BRACKET ASSEMBLY, governor

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1/4NF jam

1шт.

SCREW, 1/4NF x 1" cap

1шт.

SCREW, 5/16 x 3/4" cap

2шт.

WASHER, 5/16" lock

2шт.

8

374795R1

VALVE SPRING

SPRING, bumper

1шт.

9

367656R12

ROCKSHAFT

LEVER AND ROCKSHAFT ASSEMBLY, governor

1шт.

10

36123R91

OIL SEAL, governor rockshaft

1шт.

11

369593R1

BUSHING

governor

1шт.

12

369594R1

BUSHING

governor

2шт.

13

172530

PLUG,Exp, 11/16"

11/16" dia expansion

1шт.

14

367651R21

HOUSING ASSEMBLY, governor (composed of (1) bearing 369593R1, (2) bearing 369594R1, (1) housing 367651r2 (NSS), (1) nut 114492, (1) oil seal 361123R91, (1) plug 172530, (1) screw 127842)

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1/4NF jam

1шт.

SCREW, 3/8 x 1-1/2" cap

3шт.

127842

YOKE

SCREW, 1/4NF x 1-1/2" slt-rd-hd mach

1шт.

WASHER, 3/8" lock

3шт.

15

367669R1

GASKET

governor housing

1шт.

16

367653R1

FORK

governor thrust

1шт.

17

368938R1

SET SCREW,Hdls Hex Skt, 1/4" - 28 x 5/16", Cup Pt

governor thrust fork set

1шт.

18

393405R91

THRUST BEARING,11.07mm ID x 25.4mm OD x 11.13mm W

ASSEMBLY, governor thrust ball

1шт.

19

251460R1

RING, SNAP

RING, governor sleeve stop

1шт.

20

367741R1

WEIGHT

governor

2шт.

17053R1

LOCK PIN,Sl Spring, 1/4" x 1 3/8"

PIN, , ESNA 1/4" x 1 3/8", Slotted

2шт.

21

387878R1

SLEEVE

governor thrust

1шт.

22

369477R1

RING

snap

1шт.

23

367726R1

CARRIER

governor weight

1шт.

24

281907C1

SNAP RING,1.438", Int, #143

Ring, Snap, , governor shaft brg 1.438", Int, #143

1шт.

25

ST552

BALL BEARING,12mm ID x 37mm OD x 12mm W

BEARING, governor shaft ball

1шт.

26

367666R1

RETAINER, governor bearing

1шт.

27

367665R1

SHAFT

governor

1шт.

28

452560

KEY, no. 211 Woodruff

1шт.

29

367664R1

PINION

GEAR, governor (19 teeth)

1шт.

272614

U-BOLT

NUT, 7/16NF type-LL-J lock

1шт.

30

378128R92

GEAR-SET

GEAR AND WEIGHT ASSEMBLY, governor

1шт.

386010R91

KIT

1шт.

PACKAGE, governor overhaul service (consists of (1) bearing 369593R1, (2) bearing 369594R1, (1) bearing 387880R91, (1) bearing ST552, (1) fork 367653R1, (1) gasket 367669R1, (1) lever and rockshaft 367656R12, (2) pin 17053R1, (1) plug 172530, (1) ring 281907C1, (1) seal 361123R91, (1) screw 368938R1, (1) sleeve 387878R1, (1) spring 374795R1, (2) weight 367741R1)

1шт.
