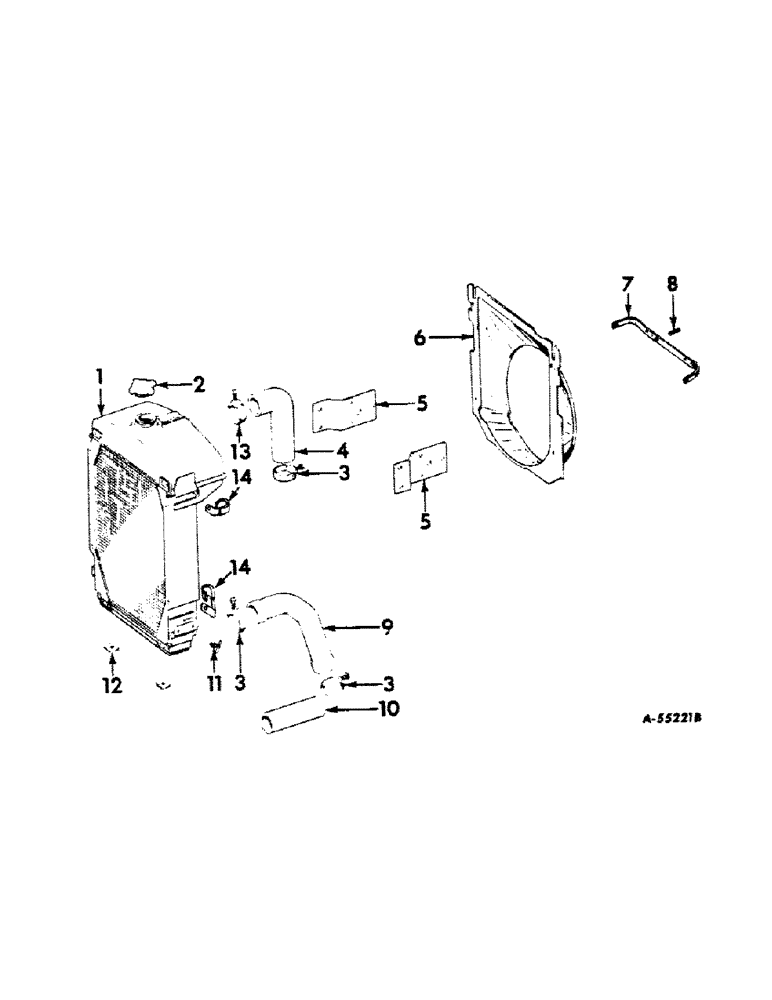

Запчасти Case IH 2606 (065) - COOLING SYSTEM, RADIATOR AND CONNECTIONS COOLING SYSTEM

1

389641R91

RADIATOR ASSEMBLY (diesel engine tractors)

1шт.

1

370293R93

RADIATOR ASSEMBLY (carbureted engine tractors)

1шт.

381141R1

BOLT, 7/16 x 1-1/2" crg

2шт.

18526R1

LOCK NUT,7/16"-14, GB

NUT, 7/16" elastic stop

2шт.

Q1515

WASHER

1/2 x 7/8" x 14 ga

2шт.

2

393229R91

CAP

radiator filler

1шт.

3

39205H

CLAMP

radiator hose

3шт.

4

369346R1

RADIATOR HOSE,2.00" ID x 6.30", SAE 20R4, Class R, Grade 1

Inlet 2.00" ID x 6.30", SAE 20R4, Class R, Grade 1

1шт.

5

NOT USED

1шт.

6

381551R1

HOUSING, fan

1шт.

13556R1

BOLT,Sq Hd, 1/4" - 20

1/4 x 5" sq-hd mach

4шт.

109084

NUT,1/4"-20, G5

4шт.

95-11028

WASHER,1/4"

9/32 x 5/8" x 16 ga

2шт.

7

379251R1

BRACE, radiator

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

4шт.

8

372417R1

STUD, radiator brace

1шт.

272614

U-BOLT

7/16"NF type-LL-J lock

2шт.

9

369347R2

RADIATOR HOSE,2.00" ID x 6.93", SAE 20R4, CLASS R4, GRADE 1

Outlet (Carbureted engine tractors) 2.00" ID x 6.93", SAE 20R4, CLASS R4, GRADE 1

1шт.

10

351964R2

HOSE

radiator outlet (diesel engine tractors)

1шт.

11

103647

VALVE

COCK, radiator drain

1шт.

12

18464DA

GASKET

PAD, radiator

2шт.

13

81448H

EXCITER

CLAMP, inlet hose upper

1шт.

14

362121R1

CLIP

radiator hose (diesel engine tractors)

2шт.
