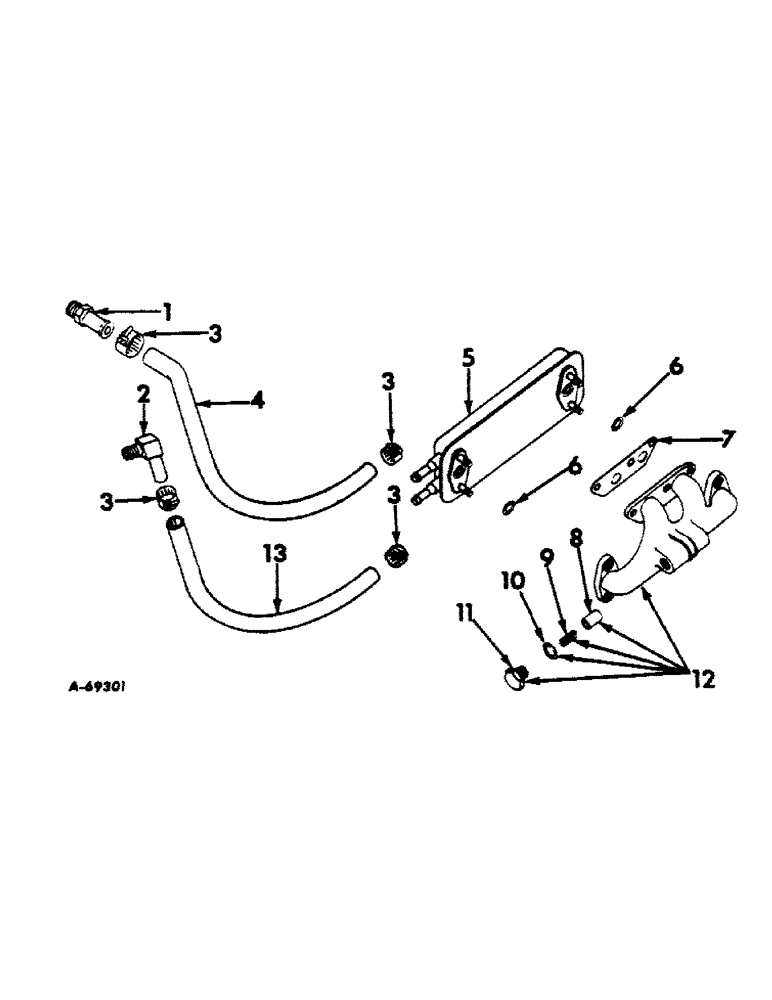

Запчасти Case IH 2606 (064) - COOLING SYSTEM, DIESEL ENGINE OIL COOLER COOLING SYSTEM

1

320182R1

CONNECTOR, water outlet hose

1шт.

2

320275R1

ELBOW UNION

ELBOW, 5/8 x 1/2" NPT x 90 deg. hose

1шт.

3

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

HOSE, oil cooler water inlet

1шт.

5

279212R91

COOLER ASSY.

COOLER, engine oil (optional with 338905R91)

1шт.

5

338905R91

COOLER

engine oil (optional with 279212R91)

1шт.

9635082

NUT,5/16" - 18, Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

6

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING, oil cooler to manifold (3/4 x 1 x 1/8")

2шт.

7

349038R1

GASKET

oil cooler manifold

2шт.

7

304945R1

SPACER

oil cooler manifold

1шт.

8

251400R1

VALVE

oil cooler relief

1шт.

9

279163R1

SPRING

oil cooler relief valve

1шт.

10

251403R1

GASKET

relief valve plug

1шт.

11

251402R1

PLUG

relief valve

1шт.

12

279160R11

MANIFOLD ASSEMBLY, engine oil cooler 1/4" sq-hd pipe plug

2шт.

13

305206R1

HOSE

oil cooler water outlet (5/8" ID x 13-3/4" long)

1шт.
