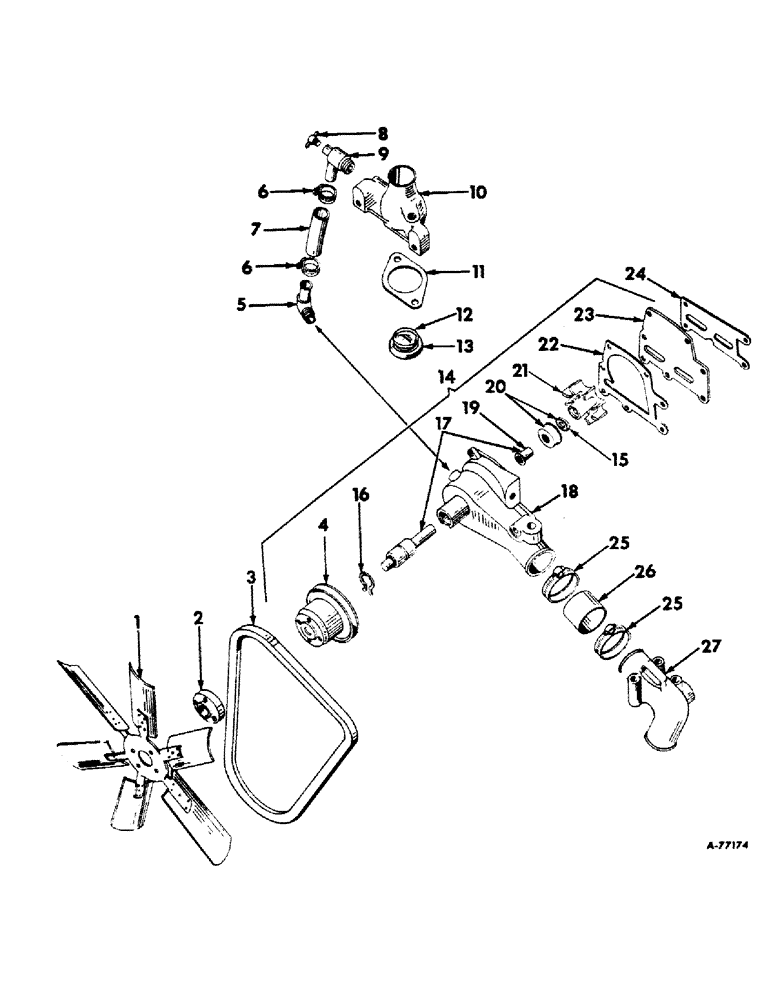

Запчасти Case IH 2606 (063) - COOLING SYSTEM, FAN, THERMOSTAT AND WATER PUMP, DIESEL ENGINE TRACTORS, D-23613950 UP COOLING SYSTEM

1

377367R91

FAN

BLADE ASSEMBLY, fan

1шт.

SCREW, 1/4 x 1-1/4" cap

4шт.

WASHER, 1/4" lock

4шт.

2

318168R1

SPACER, fan

1шт.

3

382228R2

BELT,0.50" W x 51.50" L

V-BELT , Water pump and generator 0.50" W x 51.50" L

1шт.

4

372724R1

PULLEY

water pump

1шт.

5

278089R1

FITTING

ELBOW, water pump by-pass hose

1шт.

6

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP, water pump by-pass hose

2шт.

7

278807R1

TUBE

HOSE, water pump by-pass

1шт.

8

538V

STEM, water pump by-pass valve

1шт.

9

303483R1

BASE

VALVE, water pump by-pass

1шт.

10

306627R1

HOUSING, thermostat

1шт.

179869

BOLT,Hex, 7/16" - 14 x 2 3/4", Gr 5

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

11

278280R1

GASKET

thermostat housing

1шт.

12

262882R1

GASKET

GASKET, thermostat seal

1шт.

13

313942R91

THERMOSTAT

(170 deg. - 190 deg.)

1шт.

14

341078R91

PUMP

ASSEMBLY, water (composed of (1) bearing and shaft ST646, (1) body 318118R21, (1) gasket 69674R1, (1) pulley 372724R1, (1) impeller 332117R1, (1) plate 69675R1, (1) ring 102069H, (3) screw 441444, (1) seal 73296R92)

1шт.

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

SCREW, 3/8 x 2-1/4" cap

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

15

265164C91

PACKING RING

RETAINER AND SEAL ASSEMBLY

1шт.

16

102069H

RING

RETAINER, bearing

1шт.

17

ST646

BEARING AND SHAFT ASSEMBLY, water pump

1шт.

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe Sq Hd, 1/2"-14 NPTF

3шт.

18

318118R21

BODY

W/PLUGS ASSEMBLY, water pump

1шт.

143162

PLUG

3/8" short sq socket pipe

1шт.

19

106755H

SLINGER, water pump

1шт.

20

607467C91

SEAL KIT

SEAL PACKAGE, water pump

1шт.

21

387931R1

TORQ CONV IMPELLER

IMPELLER, water pump (also order seal package, 607467C91)

1шт.

22

69674R1

GASKET

water pump plate

1шт.

23

69675R1

PLATE

water pump

1шт.

441444

SPARE PART

SCREW, 1/4 x 1/2" slt-pan-hd mach

3шт.

24

69676R1

GASKET

water pump

1шт.

25

279038R91

HOSE CLAMP,#32, 1.56/2.50 Type F Worm

CLAMP, water pump inlet hose

2шт.

26

278281R1

HOSE

water pump inlet (2" I.D. x 1-3/4" long) (order hose 407008R1)

1шт.

27

253668R1

CONNECTOR AND BRACKET, water

1шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

SCREW, 3/8 x 2-3/4" cap

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

349121R92

PACKAGE, water pump service (consists of (1) gasket 69674R1, (1) gasket 69676R1, (1) impeller 387931R1, (1) retainer 102069H, (1) seal package 607467C91, (1) shaft and bearing assy ST646

1шт.
