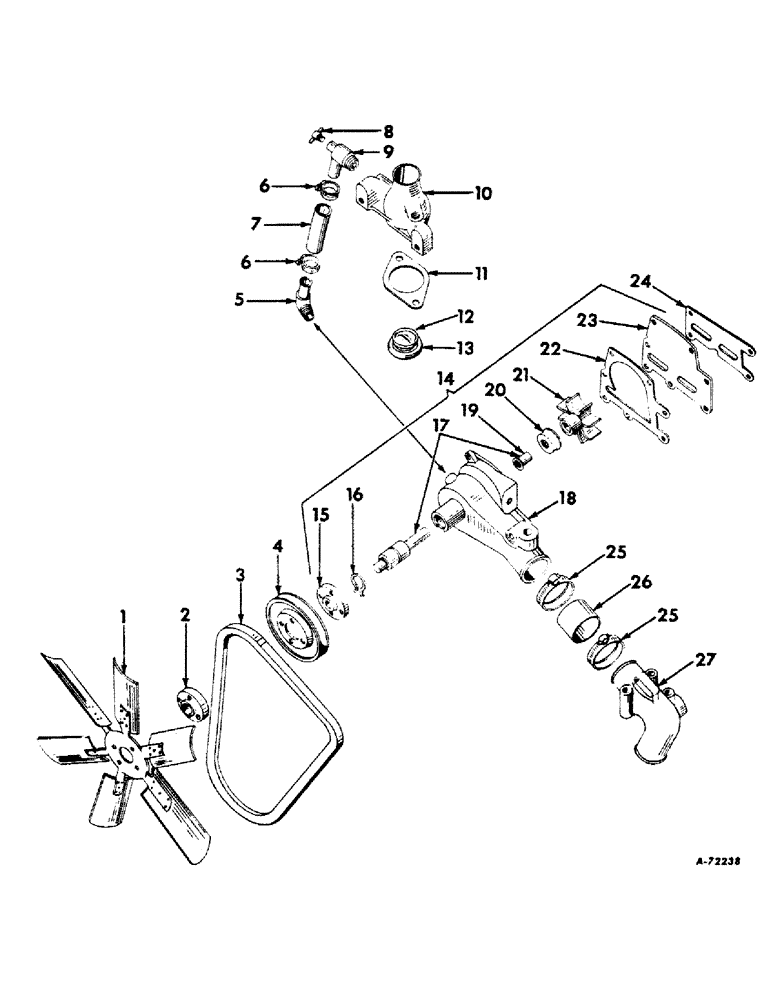

Запчасти Case IH 2606 (061) - COOLING SYSTEM, FAN, THERMOSTAT AND WATER PUMP, DIESEL ENGINE TRACTORS, D-23612799 TO 13949 COOLING SYSTEM

1

377367R91

FAN

BLADE ASSEMBLY, fan

1шт.

.

SCREW, 1/4NF x 2" cap

4шт.

.

WASHER, 1/4" lock

4шт.

2

381560R1

SPARE PART SPACER, fan

1шт.

3

316250R1

BELT,0.50" W

Water pump and generator

1шт.

4

368502R1

PULLEY

PULLEY, water pump

1шт.

5

278089R1

FITTING

ELBOW, water pump by-pass hose

1шт.

6

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP, water pump by-pass hose

2шт.

7

278807R1

TUBE

HOSE, water pump by-pass

1шт.

8

538V

SPARE PART STEM, water pump by-pass valve

1шт.

9

303483R1

BASE

VALVE, water pump by-pass

1шт.

10

306627R1

SPARE PART HOUSING, thermostat

1шт.

179869

BOLT,Hex, 7/16" - 14 x 2 3/4", Gr 5

BOLT, Hex, 7/16"-14 x 2 3/4", G5

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

11

278280R1

GASKET

GASKET, thermostat housing

1шт.

12

262882R1

GASKET

GASKET, thermostat seal

1шт.

13

313942R91

THERMOSTAT

THERMOSTAT (170 deg. - 190 deg.)

1шт.

14

318119R92

PUMP

PUMP ASSEMBLY, water (composed of (1) bearing and shaft ST 680, (1) body 318118R21, (1) gasket 69674R1, (1) hub 368501R2, (1) impeller 332117R1, (1) plate 69675R1, (1) ring 102069H, (3) screw 441444, (1) seal 73296R92)

1шт.

14

749170C91

REMAN-WATER PUMP

Remanufactured, Water Pump

1шт.

14

1928129C1

CORE-WATER PUMP

Return Part Number

1шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

BOLT, Hex, 3/8"-16 x 2 1/4", G5

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

BOLT, Hex, 3/8"-16 x 2 1/2", G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

15

368501R2

HUB CAP

HUB, pulley

1шт.

16

102069H

RING

RETAINER, bearing

1шт.

17

ST680

SHAFT

BEARING AND SHAFT ASSEMBLY, water pump

1шт.

18

318118R21

BODY

BODY W/PLUGS ASSEMBLY, water pump

1шт.

143162

PLUG

PLUG, 3/8" short sq socket pipe

1шт.

19

71351R1

SLINGER

SLINGER, water pump

1шт.

20

607467C91

SEAL KIT

SEAL PACKAGE, water pump

1шт.

21

387931R1

TORQ CONV IMPELLER

IMPELLER, water pump (also order seal package 607467C91)

1шт.

22

69674R1

GASKET

GASKET, water pump plate

1шт.

23

69675R1

PLATE

PLATE, water pump

1шт.

441444

SPARE PART

SCREW, 1/4 x 1/2" slt-pan-hd mach

3шт.

24

69676R1

GASKET

GASKET, water pump

1шт.

25

279038R91

HOSE CLAMP,#32, 1.56/2.50 Type F Worm

CLAMP, water pump inlet hose

2шт.

26

278281R1

HOSE

HOSE, water pump inlet (2" I.D. x 1-3/4" long) (order hose, 407008R1)

1шт.

27

253668R2

SPARE PART CONNECTOR AND BRACKET, water

1шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

SCREW, 3/8 x 2-3/4" cap

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

374544R93

KIT

PACKAGE, water pump service (consists of (1) gasket 69674R1, (1) gasket 69676R1, (1) impeller 387931R1, (1) retainer 102069H, (1) seal package 607467C91, (1) shaft and bearing assy ST646)

1шт.
