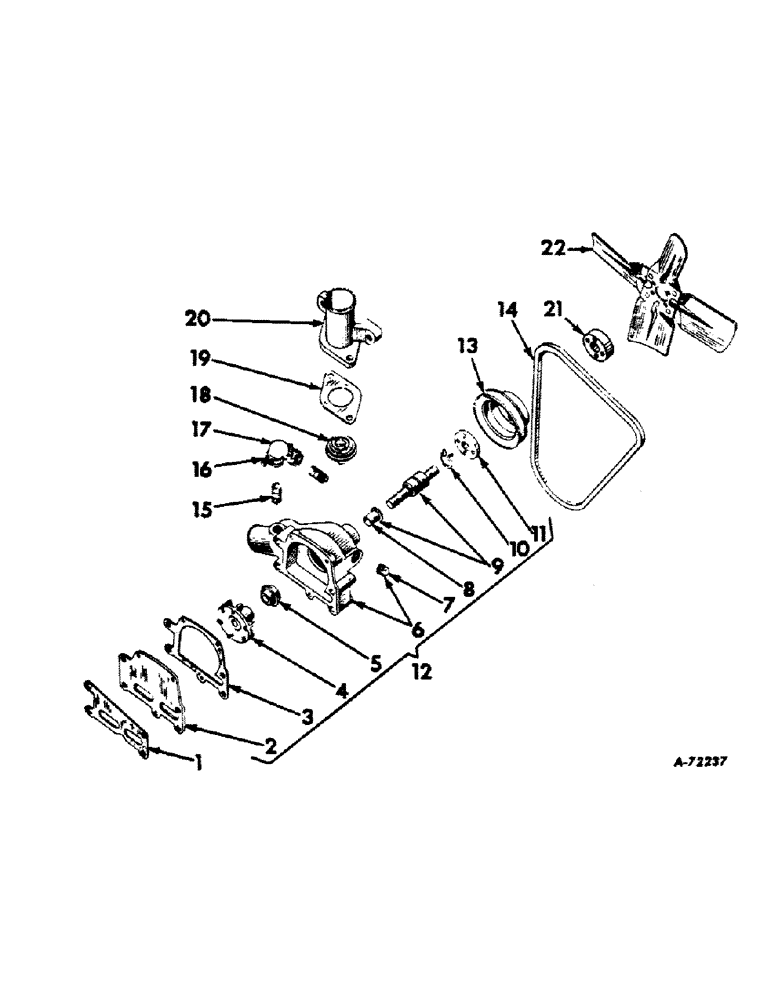

Запчасти Case IH 2606 (060) - COOLING SYSTEM, FAN, THERMOSTAT AND WATER PUMP, CARBURETED ENGINE TRACTORS COOLING SYSTEM

1

69676R1

GASKET

GASKET, water pump

1шт.

2

69675R1

PLATE

PLATE, water pump

1шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

SCREW, 1/4 x 1/2" slt-pan-hd mach

3шт.

3

69674R1

GASKET

GASKET, water pump plate

1шт.

4

69670R1

TORQ CONV IMPELLER

IMPELLER, water pump

1шт.

5

73296R92

SEAL

SEAL ASSEMBLY, water pump

1шт.

6

318118R21

BODY

BODY ASSEMBLY, water pump

1шт.

143162

PLUG

PLUG, 3/8" sq-soc-hd pipe

1шт.

7

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe, C.I. Sq Hd, 1/2"-14 NPTF

1шт.

8

71351R1

SLINGER

SLINGER, water pump

1шт.

9

ST680

SHAFT

SHAFT AND BEARING ASSEMBLY, water pump

1шт.

10

102069H

RING

RETAINER, bearing

1шт.

11

368501R2

HUB CAP

HUB, pulley

1шт.

12

601816C91

WATER PUMP

PUMP ASSEMBLY, water

1шт.

12

749170C91

REMAN-WATER PUMP

Remanufactured Water Pump

1шт.

12

1928129C1

CORE-WATER PUMP

Return Part Number, Water Pump

1шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

BOLT, Hex, 3/8"-16 x 2 1/4", G5

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

BOLT, Hex, 3/8"-16 x 2 1/2", G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

13

368502R1

PULLEY

PULLEY, water pump

1шт.

14

332562R1

BELT,0.57" W

Water pump and generator

1шт.

15

169193R1

PIPE

NIPPLE, water by-pass (gasoline only)

2шт.

16

240369R91

SPARE PART CLAMP, hose (gasoline only)

2шт.

17

169192R1

HOSE

ELBOW, water by-pass (gasoline only)

1шт.

18

108120R91

THERMOSTAT

THERMOSTAT (167 deg. - 172 deg.)

1шт.

19

368505R1

GASKET

GASKET, water outlet

1шт.

20

368504R1

OUTLET

OUTLET, water

1шт.

.

SCREW, 7/16 x 1-1/4" hex-hd cap

1шт.

.

SCREW, 7/16 x 2-1/2" hex-hd cap

1шт.

.

WASHER, 7/16" lock

2шт.

21

369289R1

SPARE PART SPACER, fan

1шт.

22

82797R91

NO LONGER SERVICED

BLADE ASSEMBLY, fan (optional with 86897R91)

1шт.

22

86897R91

FAN

BLADE ASSEMBLY, fan (optional with 82797R91)

1шт.

181319

BOLT,Hex, 1/4" - 28 x 1 1/2", Gr 5

BOLT, Hex, 1/4"-28 x 1 1/2", G5

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

374544R93

KIT

PACKAGE, water pump service (consists of (1) gasket 69674R1, (1) gasket 69676R1, (1) impeller 387931R1, (1) retainer 102069H, (1) retainer and seal 265164C91, (1) seal 73296R92, (1) shaft and bearing assembly ST 646)

1шт.
