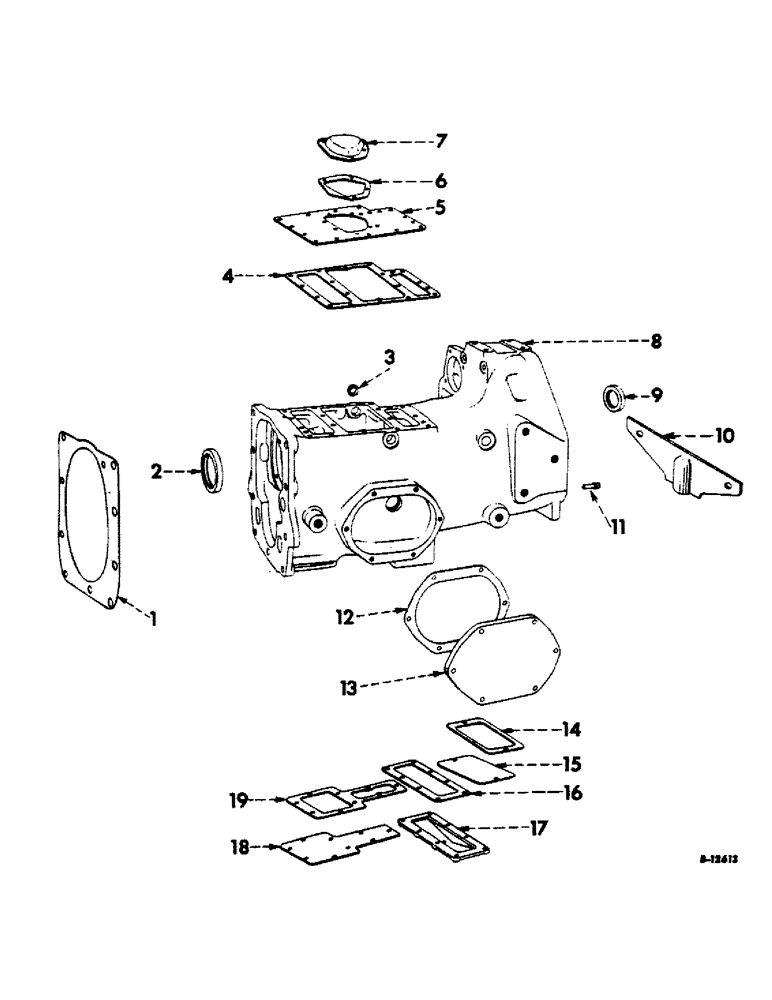

Запчасти Case IH 2606 (098) - CLUTCH, CLUTCH HOUSING AND COVER (03.1) - CLUTCH

1

368793R2

GASKET

clutch housing

1шт.

2

361248R92

OIL SEAL

OIL SEAL, transmission drive shaft front bearing or planet carrier front bearing

1шт.

3

359011R1

PLUG

cup (for sealing torque amplifier clutch release shaft openings on tractors not equipped with torque amplifier)

1шт.

4

360642R2

GASKET

clutch housing top cover

1шт.

5

361185R2

COVER, clutch housing top (for carbureted engine tractors)

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

7шт.

5

364719R1

COVER, clutch housing top (for diesel engine tractors)

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

5

378350R1

COVER, clutch housing top

1шт.

Used only on tractors with forward and reverse drive.

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

5шт.

148107

SCREW, 1/4 x 1/2" fil-hd cr-rec-mach

1шт.

6

364721R1

GASKET

clutch housing top cover cap

1шт.

Not used on tractors with forward and reverse drive.

1шт.

6

314972R1

GASKET

clutch housing top cover cap

1шт.

Used only on tractors with forward and reverse drive.

1шт.

7

364720R1

CAP

clutch housing top cover

1шт.

181352

BOLT

SCREW, 3/8NF x 3/8" cap

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

8

368285R93

HOUSING ASSEMBLY, clutch (composed of (1) bearing 360665R91, (4) cork 104937, (8) cork 104942, (1) housing 367052R4 (NSS), (1) oil seal 361248R92, (1) oil seal 362119R93, (1) plug 145201R1, (1) plug 187056, (2) plug 359011R1, (3) stud 251174R1)

1шт.

8

380030R91

HOUSING ASSEMBLY, clutch (composed of (1) cage 378689R1, (1) gage 370474R1, (2) cork 104937, (8) cork 104942, (1) housing 370472R4 (NSS), (1) plug 444660, (1) plug 187056, (1) ring 370856R1)

1шт.

Used only on tractors with forward and reverse drive.

1шт.

444660

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG, 3/8-18 auto. sq-soc-hd drain

1шт.

187056

PLUG, 2" cl sq-hd pipe (power take-off driven shaft opening plug)

1шт.

12576R1

SCREW, 1/2 x 6-3/4" cap

2шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8 x 2" cap

5шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

SCREW, 5/8 x 2-1/4" cap

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

114609

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

5шт.

9

362119R93

SEAL

OIL SEAL, power take-off drive gear

1шт.

10

NOT USED

1шт.

11

45979D

STUD

PIN, engine rear support dowel

2шт.

12

370801R1

GASKET

oi strainer opening cover

1шт.

13

377873R1

COVER, oil strainer opening

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8 x 1-1/8" cap

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

SCREW, 3/8 x 1-3/8 cap

5шт.

13

388083R1

PLATE ASSY.

COVER, oil strainer opening (International tractors with 17GPM pump) serial no. 5663 and above

1шт.

SCREW, 3/8 x 2" hex-hd cap

6шт.

14

360871R1

GASKET

clutch compartment bottom cover

1шт.

15

360872R1

COVER

clutch compartment bottom

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

16

359129R2

GASKET

power take-off driven gear cover

1шт.

17

372827R11

COVER

w/plug assembly, power take-off driven gear

1шт.

444660

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG, 3/8-18 auto. sq-soc-hd pipe

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8

1шт.

18

360869R1

COVER, clutch housing rear bottom

1шт.

366464R91

SCREW, 3/8 x 3/4" hex-hd mach

1шт.

WASHER, w/internal tooth lock

9шт.

19

360667R3

GASKET

clutch housing rear bottom cover

1шт.

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

2шт.
