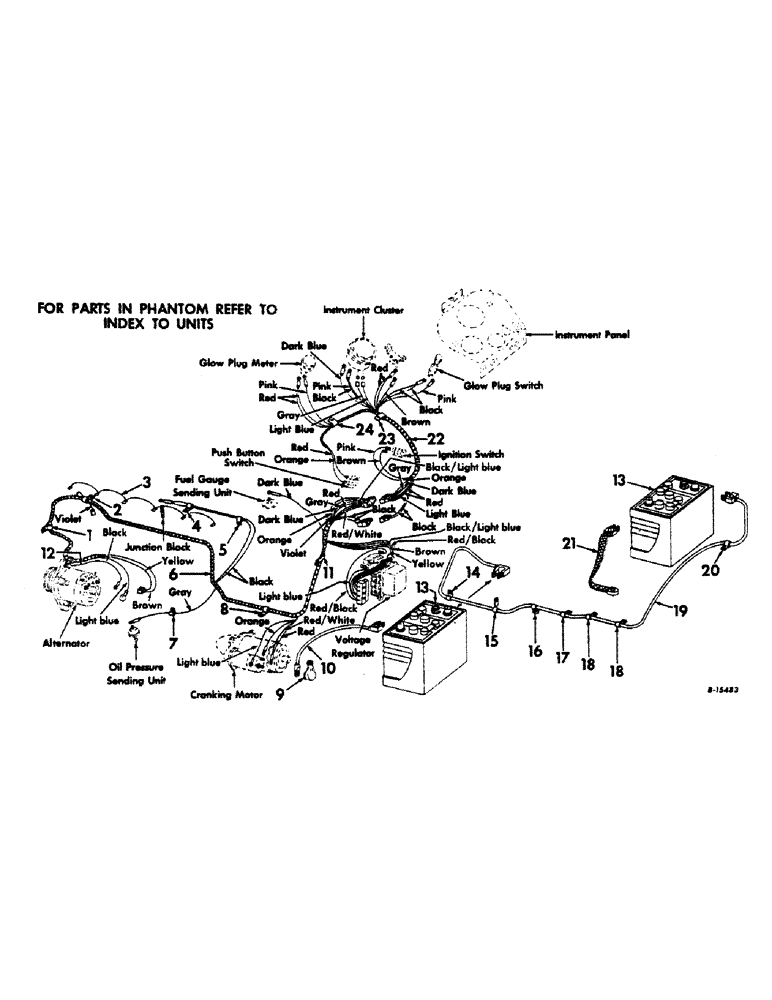

Запчасти Case IH 2606 (091) - ELECTRICAL SYSTEM, IGNITION AND STARTING, DIESEL ENGINE TRACTORS WITH ALTERNATOR (06) - ELECTRICAL SYSTEMS

1

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable harness (on alternator adjustment bolt)

1шт.

2

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable harness (on front valve cover mounting stud)

1шт.

3

319965R91

HARNESS

ASSEMBLY, glow plug

2шт.

4

263514R91

CLIP

cable (on no. 5 cylinder)

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065 ga) 3/8"

1шт.

5

263717R91

CLIP

cable (on fuel filter bracket upper LH mounting bolt)

1шт.

6

692771R91

HARNESS ASSEMBLY, main cable

1шт.

7

365584R1

CLIP

cable (on push rod cover screw)

1шт.

8

362123R1

CLIP

cable harness (on fuel tank support LH front mounting bolt)

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

9

364910R1

BOOT

COVER, solenoid terminal

1шт.

10

378324R91

CABLE

W/COVER AND BOLT ASSEMBLY, battery to solenoid switch

1шт.

356062R91

BOLT

ASSEMBLY terminal

1шт.

11

362123R1

CLIP

cable harness (on voltage regulator support RH mounting bolt)

1шт.

12

385006R91

CABLE ASSEMBLY, alternator, Serial Range: generator-ground

1шт.

13

370424R91

BATTERY, Prestolite H2-135 (6 volt)

2шт.

14

362123R1

CLIP

cable (on clutch housing top cover mounting bolt)

1шт.

15

363660R1

CLIP

cable twisted (on battery housing RH side lower mounting stud)

1шт.

16

358986R1

CABLE CLIP

CLIP, cable (on rear frame spacer)

1шт.

17

362123R1

CLIP

cable (on rear frame spacer)

1шт.

18

362123R1

CLIP

cable (on hydraulic unit housing)

2шт.

19

384974R91

CABLE W/BOLT ASSEMBLY, Serial Range: battery-battery

1шт.

356062R91

BOLT

ASSEMBLY terminal

12шт.

20

362123R1

CLIP

cable (on battery tray)

1шт.

102635

NUT,3/8"-16, G5

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

21

378760R91

CABLE

STRAP W/BOLT ASSEMBLY, Serial Range: battery-ground

1шт.

356062R91

BOLT

ASSEMBLY terminal

1шт.

22

380401R91

CABLE PULLING GRIP

HARNESS ASSEMBLY, instrument panel

1шт.

23

370383R1

CLIP

cable harness (on governor control friction plate)

1шт.

24

362121R1

CLIP

cable harness (on instrument cluster lower mounting stud)

1шт.
