Запчасти Case IH 2606 (087) - ELECTRICAL SYSTEM, REAR BATTERY HOLDER, DIESEL ENGINE TRACTORS (06) - ELECTRICAL SYSTEMS

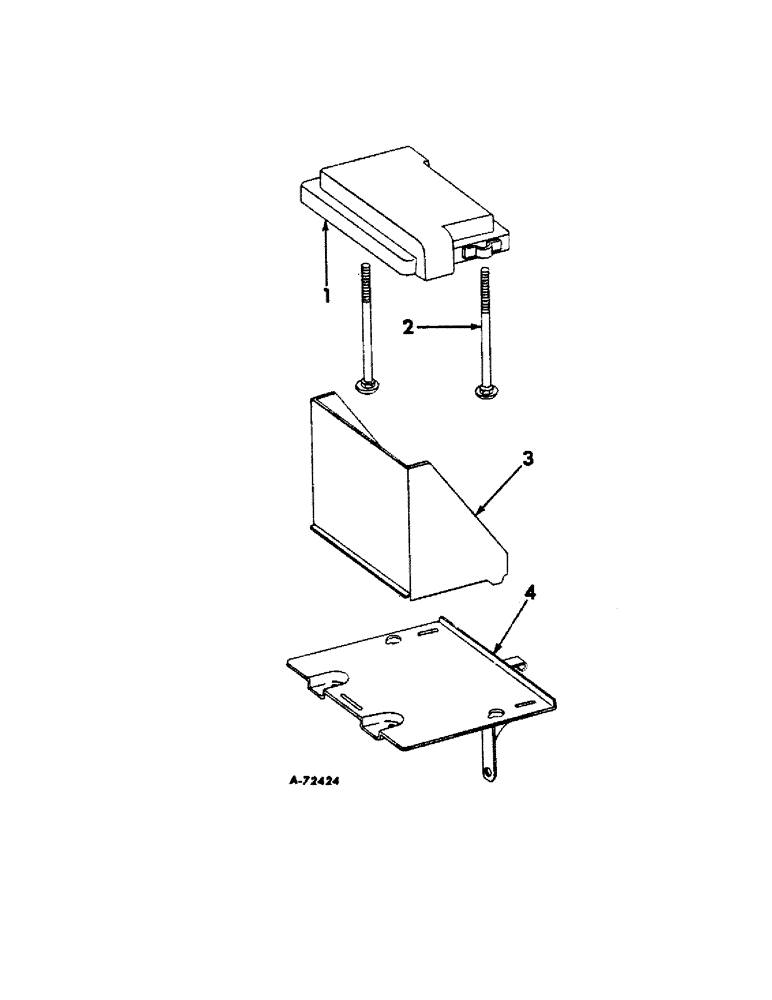

Схема запчастей Case IH 2606 - (087) - ELECTRICAL SYSTEM, REAR BATTERY HOLDER, DIESEL ENGINE TRACTORS (06) - ELECTRICAL SYSTEMS
1
2
4
3

Артикул

Название

Примечание

Количество

1

379808R11

COVER ASSEMBLY, battery hold down

1шт.

2

911248R1

BOLT, battery hold down

2шт.

388697R1

NUT

battery hold down wing

2шт.

3

379809R11

SHIELD ASSEMBLY, battery front

1шт.

4

379798R11

BASE ASSEMBLY, battery support

1шт.

SCREW, 3/8 x 7/8" cap

2шт.

SCREW, 1/2 x 1-1/2" cap

2шт.

PO14170

SPACER, base support bracket

2шт.

WASHER, 3/8" lock

2шт.

377425R91

PARTS ACCESSORY, combination rear light and tail light (for tractors equipped with electric lighting)

1шт.

Выбрано товаров: 10
