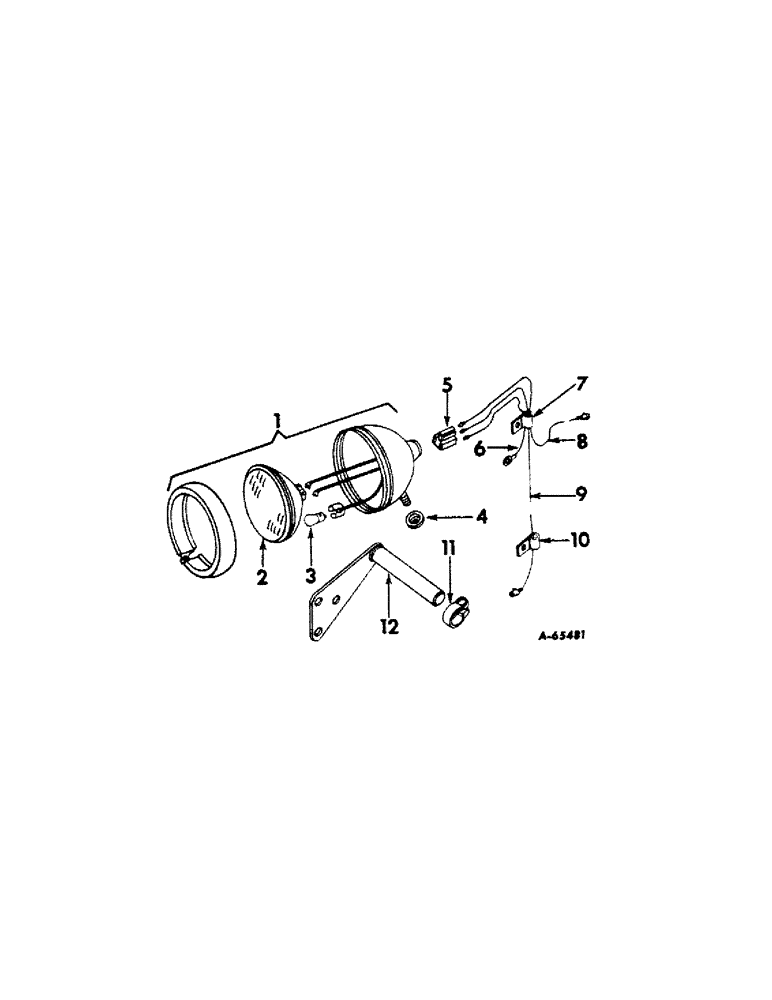

Запчасти Case IH 2606 (087[A]) - ELECTRICAL SYSTEM, COMBINATION REAR LIGHT AND TAIL LIGHT (06) - ELECTRICAL SYSTEMS

1

377102R91

NO LONGER SERVICED

REAR LIGHT AND TAIL LIGHT ASSEMBLY, combination

1шт.

NUT, 1/2"

1шт.

WASHER, 1/2" lock

1шт.

2

371461R91

LENS

UNIT, sealed beam

1шт.

3

455490

BULB,C-6, #1003, 12V, .94W

no. 1003 - 12 volt

1шт.

4

365503R1

SPACER

rear light

1шт.

5

377105R1

CONNECTOR, ELEC

CONNECTOR, rear light

1шт.

6

377120R92

CABLE ASSEMBLY, Serial Range: light-ground

1шт.

7

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, rear light cable

1шт.

8

377118R91

CABLE ASSEMBLY, rear light junction

1шт.

9

377115R91

CABLE ASSEMBLY, rear light ot breakaway connector socket

1шт.

10

362121R1

CLIP

breakaway connector socket cable

1шт.

NUT, 1/4"

1шт.

SCREW, 1/4 x 1/2" cap

1шт.

WASHER, 1/4" lock

1шт.

11

350920R1

CLAMP

rear light

1шт.

12

378159R11

BRACKET ASSEMBLY, rear light

1шт.

NUT, 3/8"

3шт.

SCREW, 3/8 x 3/4 " cap

3шт.

WASHER, 3/8" lock

3шт.
