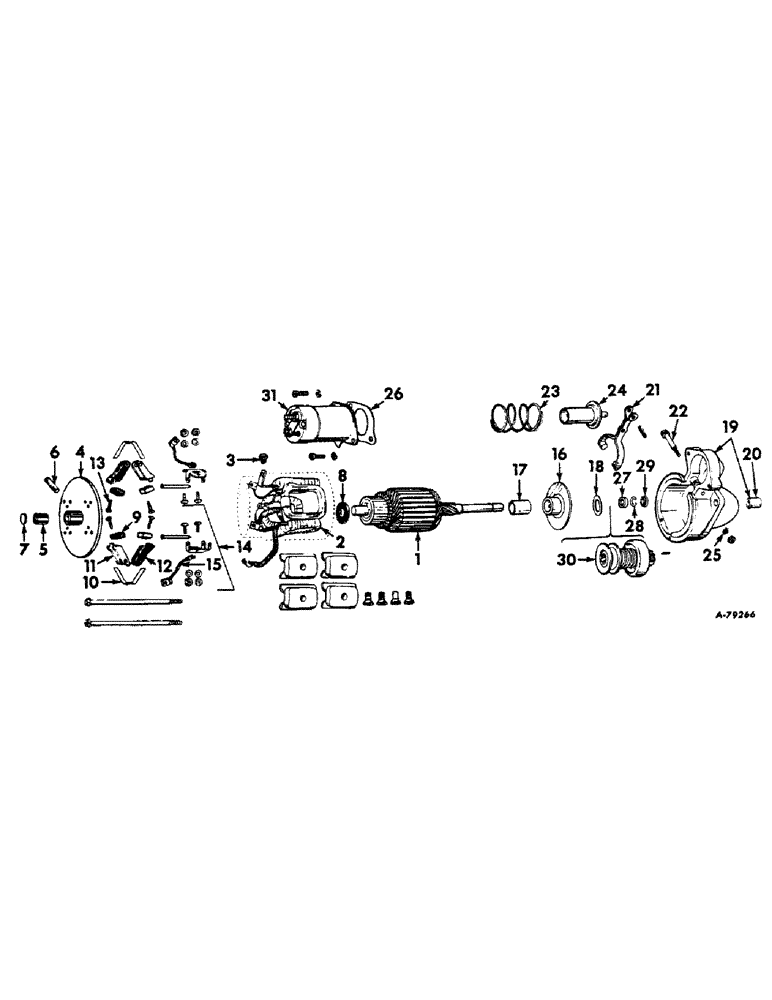

Запчасти Case IH 2606 (085) - ELECTRICAL SYSTEM, CRANKING MOTOR, DELCO-REMY, DIESEL AND L.P. GAS ENGINE TRACTORS (06) - ELECTRICAL SYSTEMS

1107543

STARTING MOTOR

MOTOR ASSEMBLY, cranking (378335R91 12 volt) (L.P. gas)

1шт.

104189A1R

REMAN-STARTER

10MT With Mouted -- Delco 1107229, 1107444 And 1108299

1шт.

104189A1C

CORE-STARTER

Return Number

1шт.

104204A1R

REMAN-STARTER

25MT Heavy Duty ---- Delco 1108657

1шт.

104204A1C

CORE-STARTER

Return Number

1шт.

104207A1R

REMAN-STARTER

Remanufactured Starter

1шт.

104207A1C

CORE-STARTER

Return Number

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

BOLT, 3/8-16 x 1-1/4 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

1107564

MOTOR

MOTOR ASSEMBLY, cranking (381904R91 12 volt) (diesel)

1шт.

NLS

NO LONGER SERVICED

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (Diesel) 3/8"

3шт.

1

1947296

ARMATURE

ARMATURE (used with cranking motor, 1107543)

1шт.

1

1961703

ARMATURE (used with cranking motor, 1107564)

1шт.

2

1956384

COIL

COIL ASSEMBLY, field (used with cranking motor, 1107543)

1шт.

2

1961705

ARMATURE

COIL ASSEMBLY, field (used with cranking motor, 1107564)

1шт.

3

1955946

GROMMET

GROMMET (in field frame)

1шт.

4

1940385

FUNNEL

FRAME, commutator end

1шт.

5

1867610

BUSHING

BUSHING, commutator end

1шт.

6

802694

NOZZLE

WICK, commutator end

1шт.

7

810819

PLUG

PLUG, expansion

1шт.

8

833602

WASHER

WASHER, commutator end brake

1шт.

9

1946434

BRUSH, COMMUTATOR

BRUSH BRUSH

4шт.

10

1926622

VALVE SPRING

SPRING, brush

2шт.

11

1926617

BRUSH HOLDER

HOLDER, ground brush

2шт.

12

1938587

BRUSH HOLDER

HOLDER, insulated brush (used with cranking motor, 1107543)

2шт.

12

1926618

HOLDER

HOLDER, insulated brush (used with cranking motor, 1107564)

1шт.

13

1947695

SCREW

SCREW, brush attaching (used with cranking motor, 1107543)

4шт.

13

9417921

SCREW

SCREW, brush attaching (used with cranking motor, 1107564)

4шт.

14

1928015

BRACKET

PACKAGE, brush holder support

2шт.

15

1926605

ELECTRICAL WIRE

WIRE LEAD, brush ground

2шт.

16

1938594

LARGE PLATE

PLATE, LARGE PLATE, center bearing

1шт.

17

1938596

BUSHING

BUSHING, center bearing

1шт.

18

NLS

NO LONGER SERVICED

brake (between center brg and motor drive)

1шт.

19

1950306

HOUSING

HOUSING, drive

1шт.

20

1862383

BUSHING

BUSHING, drive end

1шт.

21

1932205

LEVER

LEVER, shift

1шт.

22

1932197

SCREW

STUD, shift lever (used with cranking motor, 1107543)

1шт.

22

1814529

STUD, shift lever (used with cranking motors, 1107564)

1шт.

23

1932208

SPRING

SPRING, plunger return

1шт.

24

1953041

PLUNGER

PLUNGER, solenoid switch

1шт.

25

1953479

WASHER, shift lever stud sealing lock

2шт.

26

1952427

GASKET

GASKET, (between switch and housing)

1шт.

27

1928021

COLLAR

COLLAR, drive end pinion stop

1шт.

28

1928022

SNAP RING

RING, drive end pinion stop retainer

1шт.

29

1928023

WASHER

WASHER, drive end thrust

1шт.

30

1939109

PINION

DRIVE, motor

1шт.

31

1114297

IGNITION SWITCH

SWITCH, solenoid

1шт.

120377

NUT,3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

120622

NUT,#8-32

NUT, #8-32

1шт.

110730

LOCK WASHER

WASHER, 3/8" lock

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.
