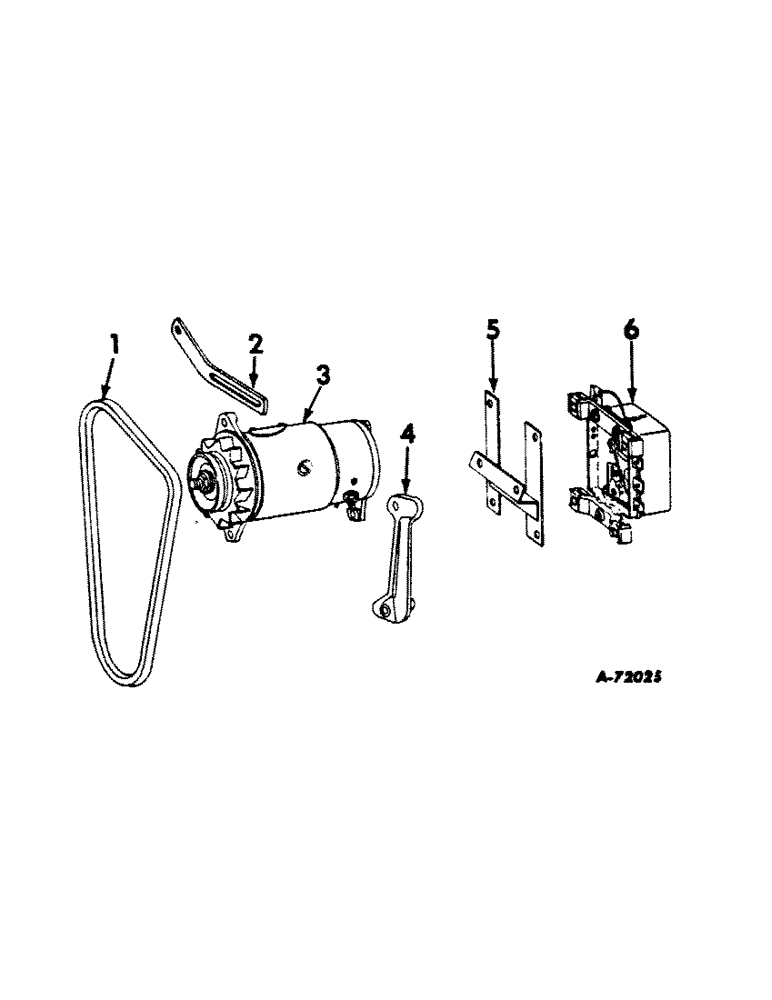

Запчасти Case IH 2606 (077) - ELECTRICAL SYSTEM, GENERATOR AND CONNECTIONS, DIESEL ENGINE TRACTORS (06) - ELECTRICAL SYSTEMS

1

316250R1

BELT,0.50" W

Generator and water pump D-23612799 to 13949 0.50" W

1шт.

1

382228R2

BELT,0.50" W x 51.50" L

V-BELT , Generator and water pump D-23613950 and up 0.50" W x 51.50" L

1шт.

2

304018R1

BRACE

generator

1шт.

179859

BOLT,Hex, 7/16" - 14 x 1 1/8", Gr 5

SCREW, 7/16 x 1-1/8" cap

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

3

1100356

GENERATOR ASSEMBLY (regular duty) (for components see lists of parts under details of "Generator") (303964R92)

1шт.

3

1100392

GENERATOR ASSEMBLY, (heavy duty (for components see list of parts under details of "Generator") (375054R91)

1шт.

3

104018A1R

REMAN-GENERATOR

2 Brush

1шт.

3

104018A1C

CORE-GENERATOR

Return Number, Generator 12 volt 25 ampere

1шт.

*

NUT, 5/16" NF

1шт.

*

SCREW, 5/16 x 7/8" cap

1шт.

*

SCREW, 5/16 x 1-1/8" cap

1шт.

*

SCREW, 5/16NF x 1-1/2" cap

1шт.

*

WASHER, 5/16" lock

3шт.

*

WASHER, 11/32 x 11/16" x .065 ga

2шт.

4

304017R1

BRACKET, generator rear mounting

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

378054R91

BRACKET ASSEMBLY, voltage regulator mounting

1шт.

*

SCREW, 3/8 x 3/4" cap

2шт.

6

REGULATOR ASSEMBLY, voltage (for components see list of parts under details of "Voltage Regulator")

1шт.

*

SCREW, 1/4NF x 1/2" cap

4шт.

*

WASHER, 1/4" lock

4шт.
