Запчасти Case IH 2606 (076) - ELECTRICAL SYSTEM, DISTRIBUTOR (06) - ELECTRICAL SYSTEMS

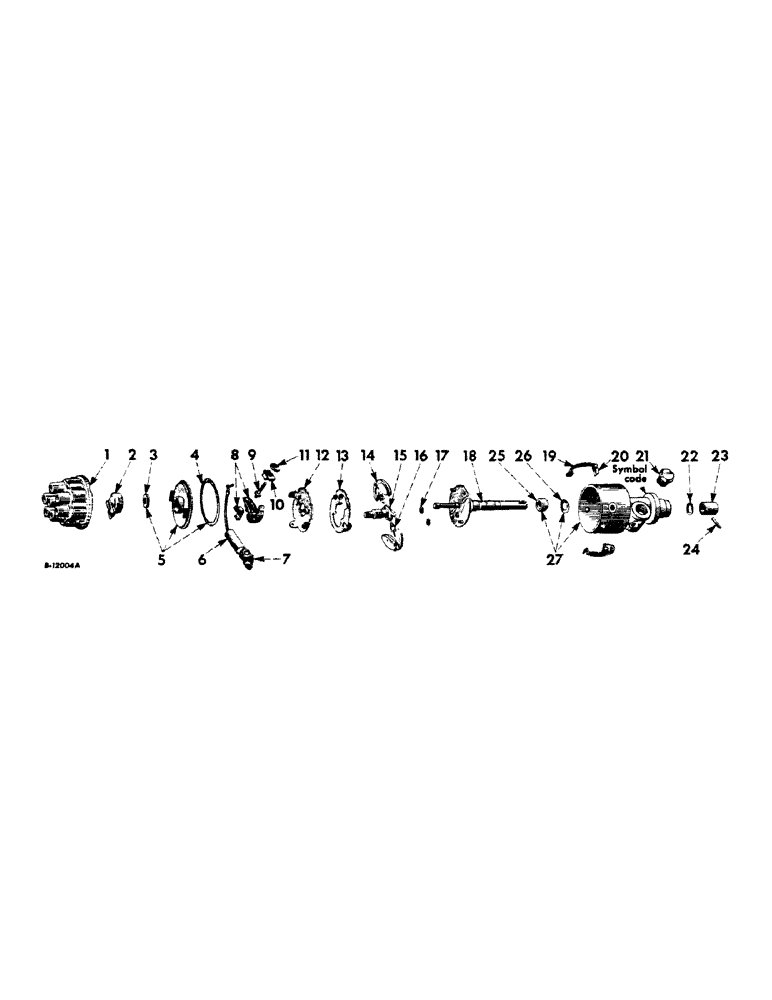

Схема запчастей Case IH 2606 - (076) - ELECTRICAL SYSTEM, DISTRIBUTOR (06) - ELECTRICAL SYSTEMS
27
1
23
12
16
21
5
19
6
10
9
25
26
20
11
14
7
15
2
18
24
22
4
13
17
3
8

Артикул

Название

Примечание

Количество

383177R91

DISTRIBUTOR ASSEMBLY - AM - symbol - gasoline

1шт.

392892R91

DISTRIBUTOR ASSEMBLY - AL - symbol - L.P. gas

1шт.

1

368062R91

CAP

distributor

1шт.

1

368062R91GV

CAP

Value, distributor cap

1шт.

2

353896R91

ROTOR ASSY.

ROTOR, distributor

1шт.

3

353901R2

FELT SEAL

breaker cover felt

1шт.

4

352284R2

GASKET

breaker cover

1шт.

5

353900R11

COVER

ASSEMBLY, breaker

1шт.

6

353903R92

CONDENSER

ASSEMBLY

1шт.

7

353905R1

CLAMP

condenser

1шт.

131949

DECAL KIT

no. 8 x 3/16" slt-fil-hd cd-pltd mach

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

8

372951R91

SCREW,POINTED

POINT SET distributor

1шт.

8

372951R91GV

SET

Value, Pointed Screw

1шт.

436690

SCREW,Slotted Pan Hd, #8-32 x 3/16"

no. 8 x 3/16" slt-pan-hd cd-pltd mach

1шт.

21394D

WASHER

stationary point and terminal

3шт.

9

353907R1

STUD

SCREW, terminal

1шт.

120622

NUT,#8-32

3шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

3шт.

10

353906R1

PLUG

INSULATOR, spring anchor terminal

1шт.

11

251538R1

WASHER

terminal insulating

1шт.

12

372868R11

RETAINER

PLATE ASSEMBLY, breaker

1шт.

121832

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

no. 8 x 3/8" slt-rd-hd cd-pltd mach

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

13

353920R1

GUARD

governor weight

1шт.

131954

SCREW,Sl Fil Hd, #8 - 32 x 1/4"

no. 8 x 1/4" slt-fil-hd cd-pltd mach

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

14

353917R91

ARM

weight

2шт.

15

356192R91

CAM

ASSEMBLY

1шт.

355460R1

FELT SEAL

FELT, cam oil hole

1шт.

16

382032R91

SPRING, governor - set of two - L.P. Gas

1шт.

16

373963R91

SPRING, governor - set of two - gasoline

1шт.

17

352293R1

SHIM

SPACER, weight arm

4шт.

18

383178R91

SHAFT ASSEMBLY, distributor - gasoline

1шт.

18

371580R91

SHAFT ASSEMBLY, distributor - L.P. Gas

1шт.

19

368096R1

SPRING

distributor cap

2шт.

20

353895R1

SUPPORT

distributor cap spring

2шт.

121832

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

no. 8 x 3/8" slt-rd-hd cd-pltd mach

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

21

369013R1

PLUG

distributor housing (tractors without tachometer)

1шт.

22

368054R1

THRUST WASHER

distributor thrust lower

1шт.

23

368053R1

BUSHING

COLLAR, distributor shaft

1шт.

24

354552R1

HARDWARE

PIN, distributor shaft collar

1шт.

25

368057R91

OIL SEAL

OIL SEAL, distributor shaft

1шт.

26

368055R1

WASHER, distributor thrust upper

1шт.

27

368051R11

HOUSING ASSEMBLY, distributor

1шт.

125947

STUD

1/8" slt-hdls. pipe

1шт.

407062R91

BREAKER

SET, points and condenser

1шт.

Выбрано товаров: 48
